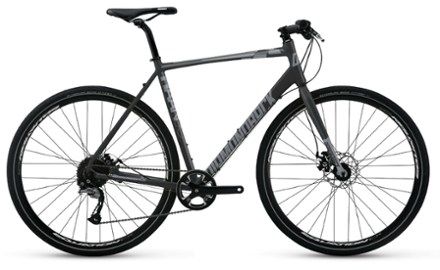

Diamondback Haanjo Metro Bike - 2017
This product is not available.
Streamlined transportation is a must for your urban life. Enter the Diamondback Haanjo Metro bike. Its flat handlebar and endurance geometry are ideal for getting to work or cruising on the weekend.
Shop similar productsKey Details
- Aluminum frame ensures longterm durability, and the fully butted and formed tubing construction saves weight without sacrificing strength
- Urban Disc steel fork delivers solid handling for navigating city streets
- Aluminum alloy frame has endurance geometry for worry-free durability and all-day riding comfort
- With the flick of a thumb, the simple Shimano 1x9 drivetrain provides plenty of range for hills and flats
- 700c disc wheels are fast rolling and smooth
- Tektro mechanical disc brakes and wide tires deliver safe and reliable urban performance
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Fork | DB Steel Urban Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts |
| Crankset | Forged Alloy Arm, 38T Single Ring w/ Alloy Chainguard |
| Bottom Bracket | Sealed Cartridge |
| Shifters | Shimano Acera M3000, 9 Speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Acera RD-T3000, 9 Speed |
| Rear Cogs | Shimano HG200, 9 Speed Cassette, 11-34T |
| Number of Gears | 9 |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro Aires Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors |
| Brake Levers | Tektro 2 Finger Alloy Linear |
| Rims | DB Equation CX 700c 32h, Doublewall |
| Front Hub | 32h Alloy w/ CNC Disc Mount |
| Rear Hub | 32h Alloy w/ CNC Disc Mount, Cassette |
| Wheel Size | 700c |
| Tires | Schwalbe Citizen w/ Kevlar Guard, Reflective Strip, 700x37c |
| Handlebar Shape | Flat Bar |
| Handlebar | DB Flat Bar, 640mm Wide, 31.8mm Bar Bore |
| Stem | DB 3D Forged, 7 Rise, 31.8 Bar Bore |
| Seat Post | DB X-Durance, Alloy 27.2mm |
| Saddle | DB Eldorado |
| Pedals | DB Laser Alloy Platform |
| Headset | FSA IS-3/NO.11 Integrated Style |
| Chain | KMC Z99, 9 Speed |
| Weight | 25 lbs. 4 oz. pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| 50 cm | 53 cm | 56 cm | 59 cm | |
|---|---|---|---|---|
| Height Range | 5'4" to 5'7" | 5'7" to 5'10" | 5'10" to 6'1" | 6'1" to 6'4" |
| Reach | 376 | 375 | 378 | 390 |
| Stack | 546 | 573 | 593 | 620 |
| Effective Top Tube | 525 | 540` | 560 | 580 |
| Seat Tube Center-Top | 500 | 530 | 560 | 590 |
| Standover Height | 751 | 781 | 807 | 836 |
| Head Tube Length | 130 | 155 | 175 | 200 |
| Head Tube Angle (degrees) | 69 | 70 | 71 | 72 |
| Seat Tube Angle (degrees) | 74.5 | 73.5 | 72.5 | 72 |
| Bottom Bracket Height | 283 | 283 | 283 | 283 |
| Wheelbase | 1024 | 1022 | 1032 | 1043 |
| Chainstay | 430 | 430 | 430 | 430 |
| Fork Offset | 45 | 45 | 45 | 45 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
