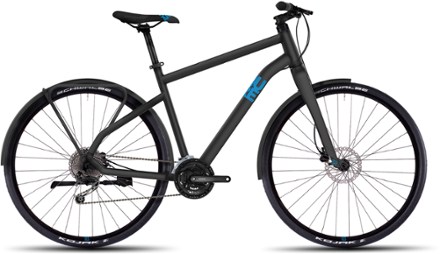

GHOST Square Urban 2 Bike - 2017
This product is not available.
Sleek, speedy and loaded with smart components like disc brakes and an integrated cargo rack, the Square Urban 2 bike from GHOST is a city sophisticate that's just plain fun to cruise around on.
Shop similar productsKey Details
Wheel Size
700c
Number of Gears
27
- Lightweight aluminum alloy frame and fork deliver a speedy and agile ride
- Integrated fenders keep you dry when the road is not
- Integrated cargo rack is pannier-ready
- Shimano triple crank and Deore 9-speed rear derailleur provide 27 gear combinations
- Tektro ACC hydraulic disc brakes provide worry-free stopping power
- Integrated kickstand
- REI is proud to be the exclusive U.S. retailer of GHOST brand bikes
- NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the GHOST Square Product LineView all GHOST- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Frame | Aluminum alloy |
| Bike Suspension | No Suspension |
| Fork | Alloy rigid |
| Crankset | Shimano FC 371 48-36-26 |
| Shifters | Shimano Acera SL |
| Front Derailleur | Shimano 390 |
| Rear Derailleur | Shimano Deore 9-Speed |
| Rear Cogs | Shimano 11-32 |
| Number of Gears | 27 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro ACC hydraulic disc 160mm |
| Brake Levers | Tektro ACC hydraulic disc |
| Rims | ALEX TD19 700C |
| Front Hub | GHOST Disc QR |
| Rear Hub | GHOST Disc QR |
| Wheel Size | 700c |
| Tires | Schwalbe Kojak 700x35 |
| Tire Width | 35 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | GHOST Low Rizer |
| Stem | GHOST AS GH2 31.8mm |
| Seat Post | GHOST light DC1 31.6mm |
| Saddle | GHOST 2059 HRN |
| Pedals | N/A |
| Chain | Shimano 9-Speed |
| Weight | 29 lbs. 5 oz. |
| Gender | Unisex |
GHOST Bikes (102970, 103102)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1"-5'6" | 5'5"-5'11" | 5'10"-6'3" | 6'1-6'7" |
| Reach | 391 | 393 | 400 | 403 |
| Stack | 636 | 641 | 664 | 683 |
| Effective Top Tube | 580 | 595 | 610 | 625 |
| Seat Tube Center-Top | 470 | 520 | 570 | 620 |
| Standover Height | 735 | 770 | 815 | 855 |
| Head Tube Length | 160 | 165 | 185 | 205 |
| Head Tube Angle (degrees) | 70 | 70 | 71 | 71 |
| Seat Tube Angle (degrees) | 73.5 | 72.5 | 72.5 | 72 |
| Bottom Bracket Height | -60 | -60 | -60 | -60 |
| Wheelbase | 1105 | 1108 | 1112 | 1121 |
| Chainstay | 455 | 455 | 455 | 455 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
