GHOST Riot AM Essential Bike
This product is not available.

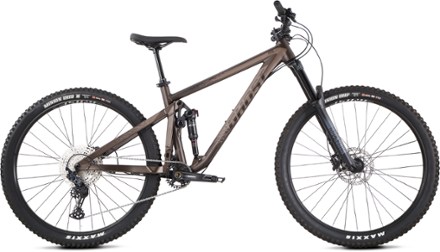

Built to go up as well as it goes down, the GHOST Riot AM Essential bike features 160 mm of front and rear travel paired with a 12-speed Shimano drivetrain to get you wherever you want to go.
Shop similar productsKey Details
- Redeveloped for maximum stiffness, the one-piece rear triangle and rocker link provide additional power transfer to the rear wheel
- Get a grip on the trail with the Maxxis Minion DHF and DHR EXO+ tires; wide trail (WT) casing
- RockShox Silver fork provides 160 mm of tunable front travel
- RockShox Deluxe Select+ offers 160 mm of tunable travel in back

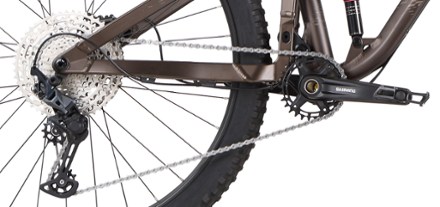

- 12-speed drivetrain
- Shimano MT500 hydraulic disc brakes paired with 180 mm rotors offer great stopping force
- Size small comes with 27.5 in. wheels, all other sizes are 29 in.
- KS dropper seatpost delivers height adjustments for any trail
- REI is proud to be the exclusive U.S. retailer of GHOST brand bikes
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | Ghost Riot Aluminum |
| Bike Suspension | Full Suspension |
| Fork | RockShox FS-35 Silver TK Lock out, Coil, 160 mm travel, tapered steerer |
| Fork Travel | 160 millimeters |
| Rear Shock | RockShox Deluxe Select + |
| Crankset | Shimano Deore 30T |
| Bottom Bracket | BSA |
| Shifters | Shimano Deore M6100 12-speed |
| Rear Derailleur | Shimano SLX M7100 12-speed |
| Rear Cogs | Shimano Deore M6100 12-speed 10-51T |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano BR-MT500 180 mm rotors |
| Brake Levers | Shimano |
| Rims | GHOST double-wall alloy |
| Front Hub | Formula DC511 Boost 110 x 15 mm thru axle 6-bolt |
| Rear Hub | Formula DC3248M 148 x 12 mm 6-bolt |
| Tires | Maxxis Minion DHF/DHR EXO+; front: 2.5 in.; rear: 2.4 in. |
| Tire Width | 2.4 inches 2.5 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Ghost GND51 31.8 mm bore, 780 mm width |
| Stem | Ghost GND51 31.8 mm bore, 45 mm length |
| Seat Post | KS dropper with remote lever |
| Saddle | WTB Volt |
| Pedals | Platform |
| Headset | FSA NO.57SC tapered |
| Chain | Shimano Deore 12S |
| Dropper Post | Yes |
| Weight | 32 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'3" - 5'8" | 5'7" - 5'11" | 5-10" - 6'2" | 6'1" - 6'6" |
| Reach | 457 | 481 | 502 | 532 |
| Stack | 616 | 624 | 660 | 678 |
| Effective Top Tube | 606 | 620 | 650 | 684 |
| Seat Tube Center-Top | 417 | 441 | 465 | 489 |
| Head Tube Length | 120 | 100 | 140 | 160 |
| Head Tube Angle (degrees) | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat Tube Angle (degrees) | 76.5 | 77.5 | 77.5 | 77.5 |
| Wheelbase | 1220 | 1272 | 1310 | 1349 |
| Chainstay | 435 | 455 | 455 | 455 |
Sizing Notes
Measurements are state in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
