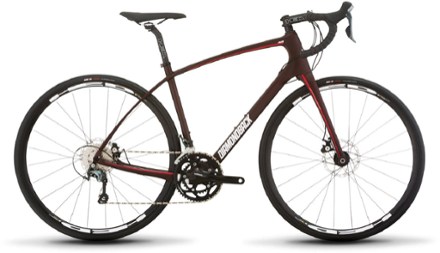

Diamondback  Arden 4 Carbon Women's Bike - 2018

This product is not available.

With a hand-built carbon frame that's stiff where you need it and compliant where you want it, the Diamondback Arden 4 Carbon women's bike offers great value for a carbon-fiber road bike.

Shop similar products

Features

  • Enhanced Performance Geometry provides a comfortable and stable ride
  • Continuous Fiber Technology: full carbon-fiber fork and tapered head tube enhance steering precision and vibration damping
  • Front and rear thru-axles deliver impeccable tracking and stability
  • Closed-circuit cable routing is clean and aerodynamic
  • Di2 compatibility
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Diamondback

Technical Specs

Best Use

Road Cycling

Frame

Carbon

Fork

Carbon

Bike Suspension

No Suspension

Crankset

Shimano FC-RS400 Compact, 50/34T

Bottom Bracket

Shimano outboard bearing

Shifters

Shimano Tiagra ST-4700, dual control 2x10-speed

Front Derailleur

Shimano Tiagra FD-4700, 31.8mm band clamp

Rear Derailleur

Shimano Tiagra RD-4700, 10-speed

Rear Cogs

Shimano HG500 cassette, 10-speed, 11-32T

Number of Gears

20 gear(s)

Brake Type

Mechanical Disc Brake

Brakes

Tekro Lyra flat mount disc, 160mm front/140mm rear rotors

Brake Levers

Shimano ST-4700

Rims

HED Flanders C2+ disc, 24h

Front Hub

24h alloy, Sealed Cartridge, 12mm Thru-axle

Rear Hub

24h Alloy, sealed cartridge, 142x12mm thru-axle, cassette

Wheel Size

700c

Tires

Diamondback Century folding bead

Tire Width

28 millimeters

Handlebar Shape

Drop Bar

Handlebar

HED Tour Flat Top drop bar, 31.8 bar bore

Stem

HED Tour, +/-7 rise, 31.8mm bar bore

Seat Post

HED Tour, 27.2mm

Saddle

Diamondback Performance women's road

Pedals

Alloy road platform

Headset

FSA No.42, sealed cartridge

Chain

KMC X10, 10-speed

Weight

19 lbs. 4 oz. pounds

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Women's

Size Chart

Diamondback Bikes (124847)
48 CM50 CM52 CM54 CM56 CM
Height Range4'10"-5'-0"5'1"- 5'4"5'4"- 5'7"5' 7" - 5'9"5'9" - 5'11"
Reach366364368371375
Stack515542565589607
Effective Top Tube500510525540555
Seat Tube Center-Top420440460480500
Standover Height698720742765788
Head Tube Length105130150175195
Head Tube Angle (degrees)70.571727272.5
Seat Tube Angle (degrees)75.57574.57473.5
Bottom Bracket Height274274274274276
Wheelbase9879859879981003
Chainstay415415415415415
Fork Offset47.547.547.547.547.5

Sizing Notes

Measurements are stated in millimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
