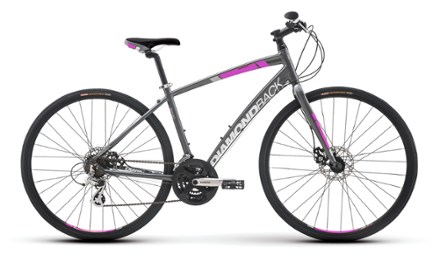

Diamondback Clarity 2 Women's Bike - 2017
This product is not available.
The Diamondback Clarity 2 bike blends road and mountain geometry into one sleek design. Its upright riding position and light weight let you pedal comfortably on short jaunts and long rides alike.
Shop similar productsKey Details
Wheel Size
700c
Number of Gears
21
- Hand-built Devine Designs 6061-T6 aluminum alloy frame is durable, light and comfortably compliant
- Low stand-over height ensures easy on/off, while women-specific touchpoints make it comfortable right out of the box
- With 21 gears to choose from, you'll be prepared for any climb; when it's time to descend, the Tektro mechanical disc brakes provide stopping power—even in pouring rain
- Accepts racks and fenders easily to transform into a daily commuter
- Integrated Aero alloy straight-blade fork delivers quick, confident handling
- Shimano 21-speed drivetrain offers gearing for any terrain
- 700c Performance Hybrid wheels
- NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Diamondback- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Frame | 6061 aluminum |
| Fork | Steel |
| Crankset | Shimano Tourney TY501, 48/38/28 |
| Bottom Bracket | Sealed cartridge |
| Shifters | Shimano EF-51 EZ fire |
| Front Derailleur | Shimano Tourney TY510 |
| Rear Derailleur | Shimano Altus |
| Rear Cogs | Shimano TZ-21 14-28 |
| Number of Gears | 21 |
| Brake Type | Mechanical Disc Brake |
| Brakes | Mechanical disc |
| Brake Levers | Shimano EF-51 |
| Rims | Equation R23 |
| Front Hub | Alloy, 32h |
| Rear Hub | Alloy cassette, 32h |
| Wheel Size | 700c |
| Tires | Kenda Kwick Trax, 700 x 32 |
| Handlebar Shape | Riser Bar |
| Handlebar | DB alloy |
| Stem | DB alloy |
| Seat Post | Alloy Micro Adjust |
| Saddle | DB Performance Hybrid |
| Pedals | DB toe-clip compatible platform |
| Headset | FSA IS-3 integrated style |
| Chain | KMC-Z51 |
| Weight | 26 lbs. 13 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Women's |
Diamondback Bikes (113584, 113848)
| XS | S | M | L | |
|---|---|---|---|---|
| Height Range | 5'0"-5'4" | 5'4"-5'7" | 5'7"-5'10" | 5'10-6'1" |
| Reach | 379 | 382 | 400 | 411 |
| Stack | 530 | 549 | 577 | 601 |
| Effective Top Tube | 541 | 551 | 574 | 594 |
| Seat Tube Center-Top | 350 | 400 | 450 | 500 |
| Standover Height | 622 | 673 | 718 | 755 |
| Head Tube Length | 100 | 120 | 150 | 175 |
| Head Tube Angle (degrees) | 71 | 71 | 71 | 71 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | -70 | -70 | -70 | -70 |
| Wheelbase | 1032 | 1042 | 1069 | 1089 |
| Chainstay | 450 | 450 | 450 | 450 |
| Fork Offset | 48 | 48 | 48 | 48 |
Sizing Notes
Bike measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
