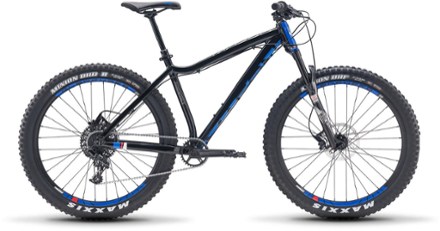

Diamondback Mason 2 27.5+ Bike - 2018

Item #124834
Product Image of color Black Gloss Product Image of color Black Gloss loading
Black Gloss

This product is not available.

Shop similar products

A hardtail that thinks it has full suspension? We won't argue with it. Building on the success of the original Mason 29er, the Diamondback Mason 2 27.5+ bike has "mid-fat" wheels to conquer your ride.

  • Features

    • Light and strong aluminum frame enhances precision with 148x12mm Boost dropouts and rear thru-axle
    • RockShox Judy Gold RL fork eats up bumps with its 120mm of plush travel
    • SRAM NX 1x11 drivetrain makes for simple and efficient shifting
    • SRAM Level T hydraulic disc brakes provide plenty of stopping power, even in mud or rainy conditions
    • Tubeless-compatible Diamondback Blanchard 38R wheels and Maxxis 2.8 in. tires offer insanely good grip on rugged terrain
    • Specs and images are subject to change

    Imported.

    Free Adjustment Period:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
    View all Diamondback Hardtail Mountain Bikes

  • Technical Specs

    Best Use

    Mountain Biking

    Mountain Bike Style

    Trail

    Bike Frame Material

    Aluminum

    Frame

    6061 aluminum

    Bike Suspension

    Front Suspension

    Fork

    RockShox Judy Gold RL with 120mm travel and 1.5 in. tapered steerer tube

    Fork Travel

    120 millimeters

    Crankset

    Race Face Affect Cinch with steel 30T "Narrow Wide"

    Bottom Bracket

    Race Face Outboard bearing

    Shifters

    SRAM NX 11-speed X-Actuation trigger

    Rear Derailleur

    SRAM NX X-Horizon, 11-speed

    Rear Cogs

    SRAM PG1130, 11-42t, 11-speed

    Number of Gears

    11 gear(s)

    Brake Type

    Hydraulic Disc Brake

    Brakes

    SRAM Level T hydraulic disc, with 180mm front/rear centerline rotors

    Brake Levers

    SRAM Level hydraulic levers with tooled reach adjust

    Rims

    Diamondback Blanchard 38R, tubeless compatible, 32h

    Front Hub

    32h alloy, Boost 110x15mm thru-axle, with CNC disc mount

    Rear Hub

    32h alloy, Boost 148x12mm thru-axle, for SRAM XD with CNC disc mount

    Wheel Size

    27.5+ inches

    Tires

    Maxxis Minion DHF 27.5+ x 2.8" EXO, TLR, folding / Maxxis Minion DHR 27.5+ x 2.8" EXO, TLR, folding

    Tire Width

    2.8 inches

    Handlebar Shape

    Riser Bar

    Handlebar

    DB35 alloy, 760mm wide, 15mm rise, 35mm bar bore

    Stem

    DB35 alloy, 60mm, 35mm bar bore

    Seat Post

    JD 7075 alloy internal dropper, with 1x Lever, 30.9mm

    Saddle

    DB Race M-series

    Pedals

    DB4L alloy platform with replaceable pins

    Chain

    SRAM NX 11-Speed X-Actuation trigger

    Weight

    28 lbs. 11 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

    Dropper Post

    Yes

  • Size Chart

    XS S M L XL
    Height Range 5'1" - 5'4" 5'4" - 5'7" 5'7" - 5'10" 5'10" - 6'1" 6'1" - 6'4"
    Reach 366 388 401 422 443
    Stack 588 597 617 631 645
    Effective Top Tube 540 565 590 615 640
    Seat Tube Center-Top 360 400 440 480 530
    Standover Height 720 750 785 809 844
    Head Tube Length 100 110 95 110 125
    Head Tube Angle (degrees) 68 68 69.5 69.5 69.5
    Seat Tube Angle (degrees) 73.5 73.5 73 73 73
    Bottom Bracket Height 305 305 310 310 310
    Wheelbase 1,050 1,075 1,097 1,124 1,150
    Chainstay 425 425 444 444 444
    Fork Offset 42 42 46 46 46

    Sizing Notes

    Measurements are stated in millimeters unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
