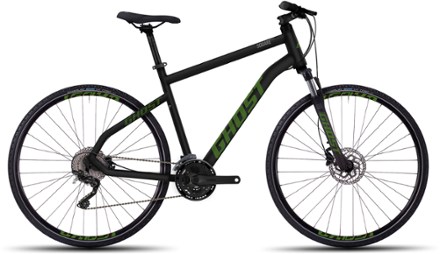

GHOSTÂ Square Cross 5 Bike - 2017
This product is not available.
Featuring sleek lines, hydraulic disc brakes, Shimano Deore components and 60mm of plush front suspension, the GHOST Square Cross 5 bike is the perfect choice for the path or trail.
Shop similar productsKey Details
- Lightweight aluminum alloy frame employs ultra-sleek aesthetics
- SR Suntour SF14NEX RL fork offers 60mm of trail-smoothing travel
- Shimano triple crank and Deore XT 9-speed rear derailleur provides 27 versatile gear combinations
- Shimano 355 hydraulic disc brakes and rotors provide worry-free stopping power
- REI is proud to be the exclusive U.S. retailer of GHOST brand bikes
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | Square Cross aluminum alloy |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour SF14NEX RL |
| Fork Travel | 60 |
| Crankset | Shimano 4010 48/36/26 |
| Bottom Bracket | Unavailable |
| Shifters | Shimano Deore SL |
| Front Derailleur | Shimano 4000 |
| Rear Derailleur | Shimano Deore XT |
| Rear Cogs | Shimano 11-32, 9-speed |
| Number of Gears | 27 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano 355 Hydraulic Disc 160mm |
| Brake Levers | Shimano 355 Hydraulic Disc |
| Rims | ALEX TD19 700C |
| Front Hub | Shimano HB-RM 33 QR |
| Rear Hub | Shimano FH-RM 33 QR |
| Wheel Size | 700c |
| Tires | Schwalbe XC Comp |
| Tire Width | 38 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | GHOST Rizer 660mm 31.8mm |
| Stem | GHOST AS GH2 31.8mm |
| Seat Post | GHOST Light SP DC 1 31.6mm |
| Saddle | GHOST 3050 HRN |
| Pedals | Sold separately |
| Chain | Shimano 9-speed |
| Weight | 28 lbs. 4.8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1"-5'6" | 5'5"-5'11" | 5'10"-6'3" | 6'1-6'7" |
| Reach | 391 | 393 | 400 | 403 |
| Stack | 636 | 641 | 664 | 683 |
| Effective Top Tube | 580 | 595 | 610 | 625 |
| Seat Tube Center-Top | 470 | 520 | 570 | 620 |
| Standover Height | 735 | 770 | 815 | 855 |
| Head Tube Length | 160 | 165 | 185 | 205 |
| Head Tube Angle (degrees) | 70 | 70 | 71 | 71 |
| Seat Tube Angle (degrees) | 73.5 | 72.5 | 72.5 | 72 |
| Bottom Bracket Height | -60 | -60 | -60 | -60 |
| Wheelbase | 1105 | 1108 | 1112 | 1121 |
| Chainstay | 455 | 455 | 455 | 455 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification

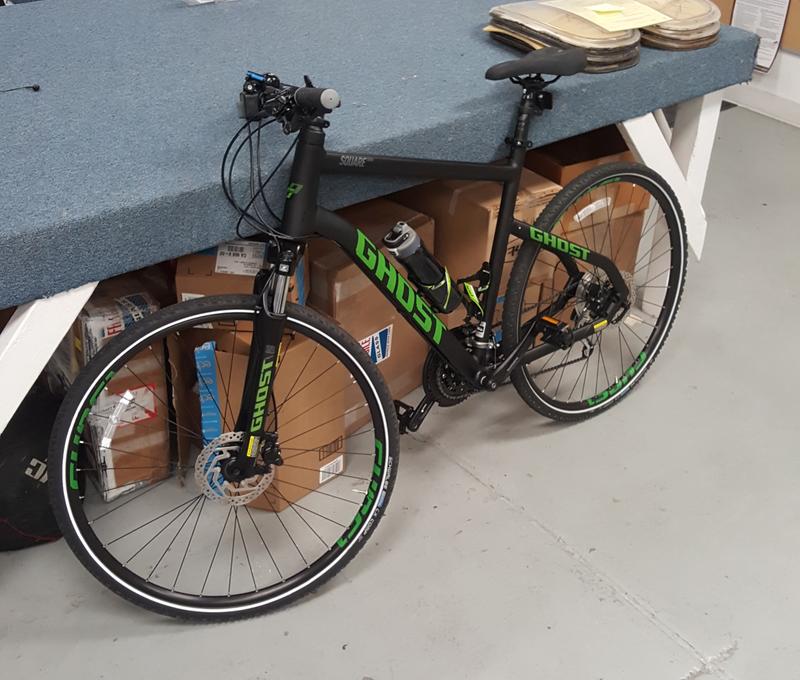

Customer Images
Ghost Love
Recently purchased the Ghost Cross 5 Hybrid bike and couldn't be happier with the purchase. Very smooth and solid ride. Plus the bike isn't hard on the eyes! I did a lot of research prior as I always do before a purchased like this. The staff at REI is extremely helpful and informative.
Getting back into cycling
Could not be happier with my decision to purchase the Ghost Square Cross 5. I am just getting back into cycling and this was the perfect choice for myself, at this time. Excellent craftsmanship by Ghost, very good components integrated, and the bike was assembled and adjusted almost perfectly by the REI Bike-smith. Very minor adjusts to the seat height and off you go. First thing I did replace was the seat, in upgrading to an eGel Surfas for more comfort. Definitely consider this bike and/or the Ghost product line when you are shopping.
Love being able to climb the hills!
Handles steep uphill and down hill roads smoothly. Ive only had it 2 weeks but so far i am still in love with it!
Cycling is Now Easier
I needed a new bike so instead of getting the same REI brand as before, I decided to go to a higher level of expertise, which is why I bought this beautiful Ghost bike. This bike runs so smooth BC of the German engineering. I love this bike & I am already having a lot of cycling fun.
Excellent mechanics...a bit heavy
I have had the Ghost out for about 70 miles riding in the first 10 days and an excellent bike mechanically. My only wish it that it was 3-4 pounds lighter
Absolutely fantastic ride!
Bought to start doing mixed road distance rides and was impressed with the quality and features. The green was nice on the eyes. Did 30 miles my first ride and it was effortless.
Great Bike, Even Better Service!
Bought the GHOST Square Cross 5 Bike last week and picked it up on Saturday morning. I've had a chance to ride the bike in varying terrain and thought it would be good to provide some feedback. The first day I had it, I rode it home from the Issaquah REI to the Issaquah Highlands (pretty much near the top!). The bike performed terrific, with shifting, braking and handling all being smooth and reliable. This morning, I took the bike out for a real test. Started out in the Highlands and took the power line route down to the Preston Trail. I should point out that the power line trail quickly becomes a single track, steep, rutty and bumpy mountain biking trail at this point and it's about 450' down. The trail would be crazy fun on a mountain bike, but I've got to say, the GHOST performed admirably given its supposed limitations. I spent a good part of my younger life mountain biking and this bike felt perfectly appropriate for the terrain (I did take it easy!). After that, pretty much flat trail to Preston, which was a breeze, then back to Highlands drive and bike paths the rest of the way home. I would feel comfortable taking this bike anywhere, but you probably wouldn't want to push its durability limits riding it quite this hard. But if you had to, you most certainly could. Awesome Hybrid. A quick word about their service: I N C R E D I B L E. I'd go into detail, but it would be a long story. Suffice it to say..... REI will go the extra mile for you if anything at all doesn't fit your expectations.
Poor assembly
The cheap pedals put on by the store without grease on the threads were corroded to the crank. Had to destroy the disposable pedals on. Greasing threads is recommended by Park tools and others in the industry. Store prep is crucial.
