Diamondback Haanjo Trail Ultegra Bike - 2016
This product is not available.

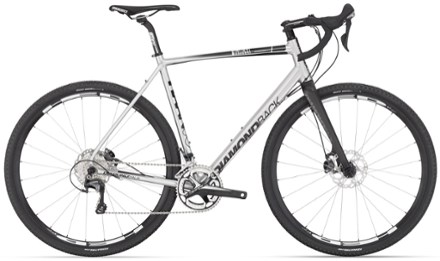

Keep pushing the pace even when the road ends. The Haanjo Trail is part commuter and part gravel grinder thanks to wide tires, a big range of gears, Ultegra components and powerful disc brakes.
Shop similar productsKey Details
- Butted aluminum alloy frame features an upright riding position that puts less strain on your back and neck during long rides
- Carbon fork ensures smooth handling and damps vibration
- FSA Gossamer Pro Cross crankset with 46/36 chainrings is paired with a 12-32 cassette for an emphasis on speed and power with the ability to climb quickly
- Shimano Ultegra drivetrain provides crisp, precise shifts through the 22 gear combinations
- TRP hydraulic disc brakes provide smooth, controlled stopping power even on wet roads or loose gravel
- HED Flanders Disc Wheelset is paired with Kenda Happy Medium Pro 700 x 40 tires to take on gravel or rough roads
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Cyclocross |
|---|---|
| Frame | 6061 aluminum |
| Fork | Carbon disc |
| Bike Suspension | No Suspension |
| Crankset | FSA Gossamer Pro Cross. 46/36 |
| Bottom Bracket | FSA BB386 EVO |
| Shifters | Shimano Ultegra |
| Front Derailleur | Shimano Ultegra |
| Rear Derailleur | Shimano Ultegra |
| Rear Cogs | Shimano 105, 11-32, 11-speed |
| Number of Gears | 22 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano BR-RS785 hydraulic disc |
| Brake Levers | Shimano ST-RS685 |
| Rims | HED Tomcat disc |
| Front Hub | Sealed cartridge disc, 24h |
| Rear Hub | Sealed cartridge disc, 24h |
| Wheel Size | 700c |
| Tires | Kenda Happy Medium, 700 x 40 |
| Tire Width | 40 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | DB X-Durance Gravel Bar |
| Stem | DB 3D Forged |
| Seat Post | DBR alloy micro adjust |
| Saddle | DB G.P. saddle |
| Pedals | Sold separately |
| Headset | FSA C-40 |
| Chain | KMC X11L |
| Weight | 21 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
