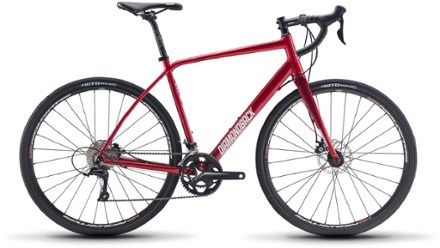

Diamondback Haanjo 3 Bike - 2018
This product is not available.
Want a bike that doesn't shy from long rides and rough roads? The Diamondback Haanjo 3 bike features a butted and formed aluminum frame with ample gearing for epic rolls over paved and unpaved roads.
Shop similar productsKey Details
- Durable 6061-T6 aluminum alloy frame has Endurance geometry for all-day riding comfort
- Shimano Sora 2x9-speed drivetrain with FSA cranks provides reliable shifting performance
- Lightweight Gravel Disc alloy fork offers precise steering
- Tektro Lyra mechanical disc brakes plus 700c x 37mm WTB Riddler Comp tires offer maneuverability and control
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | Fully butted 6061-T6 alloy |
| Fork | DB SPF formed alloy Gravel Disc with 1.5 in. tapered steerer tube |
| Bike Suspension | No Suspension |
| Crankset | FSA Omega Adventure Mega, 46/30T |
| Bottom Bracket | FSA Mega Exo |
| Shifters | Shimano Sora ST-R3000, 2x9 Speed |
| Front Derailleur | Shimano Sora FD-R3000, 31.8mm band clamp |
| Rear Derailleur | Shimano Sora RD-R3000, 9-speed |
| Rear Cogs | Shimano HG400, 9-speed cassette, 11-32T |
| Number of Gears | 18 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro Lyra flat mount mechanical disc, with 160mm front/140mm rear rotors |
| Brake Levers | Shimano Sora ST-R3000 |
| Rims | Diamondback Equation, 28h, double-wall |
| Front Hub | 28h alloy quick release |
| Rear Hub | 28h alloy quick release, cassette |
| Wheel Size | 700c |
| Tires | WTB Riddler Comp, 700c x 37mm |
| Tire Width | 37 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | HED Eroica, 7050 alloy, 16 degree flare, 31.8mm bar bore |
| Stem | HED Eroica, 6061 alloy, 3D forged, +/-7 degree rise, 31.8mm bar bore |
| Seat Post | HED Eroica, 6061 alloy, 27.2mm |
| Saddle | DB Eldorado |
| Pedals | DB4L alloy platform |
| Headset | FSA No. 42, sealed cartridge |
| Chain | KMC Z99, 9-sSpeed |
| Weight | 22 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| 50 CM | 53 CM | 56 CM | 59 CM | |
|---|---|---|---|---|
| Reach | 373 | 369 | 371 | 375 |
| Stack | 549 | 576 | 599 | 627 |
| Effective Top Tube | 525 | 540 | 560 | 580 |
| Seat Tube Center-Top | 475 | 505 | 535 | 565 |
| Standover Height | 754 | 777 | 814 | 845 |
| Head Tube Length | 130 | 155 | 175 | 200 |
| Head Tube Angle (degrees) | 69 | 70 | 71 | 72 |
| Seat Tube Angle (degrees) | 74.5 | 73 | 72.5 | 72 |
| Wheelbase | 1044 | 1041 | 1041 | 1044 |
| Chainstay | 440 | 440 | 440 | 440 |
| Fork Offset | 50 | 50 | 50 | 50 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
