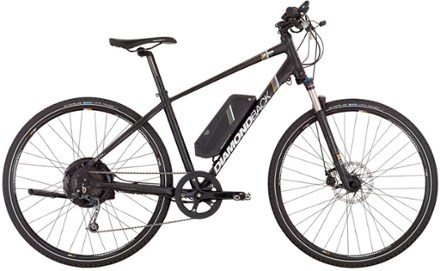

Diamondback Trace EXC Electric Bike - 2016
This product is not available.
The Trace EXC offers the comfortable upright ride of a traditional commuter bike, but has a trick up its sleeve: an electric motor to help power you over hills and through long rides.
Shop similar productsKey Details
- The 6061-T6 aluminum frame with forged dropouts is stiff and durable; relaxed geometry ensures a comfortable, upright riding position
- 48-volt lithium-ion battery-powered center drive motor provides an electric assisted boost
- Suspension fork smooths out road vibration
- Shimano Microshift shifters move smoothly through the 9 speeds
- Shimano hydraulic disc brakes offer dependable stopping power in all conditions
- Frame eyelets accommodate racks and fenders
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Bike Commuting |
|---|---|
| Motor | Electric |
| Battery Type | Lithium Ion |
| Pedal Assist Range | 25-45 miles |
| Frame | 6061 aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour NRX-D LO, 75mm travel with lockout |
| Crankset | Alloy, 45t |
| Bottom Bracket | JD cartridge |
| Shifters | Microshift |
| Rear Derailleur | Shimano Deore Shadow |
| Rear Cogs | Shimano HG30, 11-34, 9-speed |
| Number of Gears | 9 gear(s) |
| Brakes | Shimano BR-M375 hydraulic disc |
| Brake Levers | Shimano |
| Rims | Diamondback SL-7 |
| Front Hub | Alloy, 36h |
| Rear Hub | Electric motor |
| Wheel Size | 700c |
| Tires | Schwalbe Land Cruiser, 700 x 42 |
| Handlebar Shape | Flat Bar |
| Handlebar | DB Laser series |
| Stem | DB 3D forged |
| Seat Post | DB Lazer Series micro adjust |
| Saddle | DB dual sport |
| Pedals | Wellgo alloy platform |
| Headset | Ahead 1-1/8" |
| Chain | KMC Z99 |
| Weight | 50 lbs. 3.2 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
