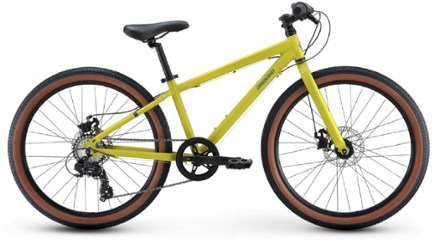

Diamondback Division 24 Kids' Bike

This product is not available.

Shop similar products

For the kid who doesn't want to be confined to the sidewalk, the Diamondback Division 24 opens up a world of possibilities. This bike is ready to cruise around town to and from their favorite spots.

Features

  • Like a mountain bike made for city streets, the Division 24 is ready to handle any pavement that comes its way
  • Designed with a lightweight frame and rigid alloy fork, the Division 24 is light enough to lift up the stairs to school but durable enough for hardcore street use
  • Featuring 7 gears and mechanical disc brakes, this bike is smooth shifting and low-maintenance with serious braking power for wet and dirty conditions
  • Big and wide Kenda 24 x 2.125 in. tires roll over almost anything in their path
  • Resin platform pedals included
  • Made for kids 9–12 years old or 54–61 in. tall
  • Specs and images are subject to change

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Diamondback Kids' Cruiser Bikes

Technical Specs

Best Use

Recreational Cycling

Frame

6061 aluminum

Bike Suspension

No Suspension

Fork

24 in. rigid aluminum fork

Crankset

152 aluminum arms with 36T ring and double guard

Bottom Bracket

Sealed mech loose ball

Shifters

Shimano Revo 7-speed

Rear Derailleur

Shimano Tourney

Rear Cogs

7-speed 14-32T freewheel

Number of Gears

7 gear(s)

Brake Type

Mechanical Disc Brake

Brakes

Mechanical disc brakes with 160 mm rotor

Brake Levers

Aluminum with adustable reach

Rims

Aluminum anodized 32h double-wall disc

Front Hub

Aluminum disc 32h

Rear Hub

Aluminum disc 32h, freewheel

Wheel Size

24 inches

Tires

Kenda Kruiser 24 x 2.125 in.

Tire Width

2.125 inches

Handlebar Shape

Riser Bar

Handlebar

580 mm aluminum 31.8, 25 mm rise

Stem

Aluminum Ahead 60 mm x 7 deg., 31.8

Seat Post

Aluminum micro-adjust 27.2 x 300 mm

Saddle

Jr. Mountain

Pedals

Resin platform

Headset

1-1/8 in. threadless

Chain

KMC Z51

Weight

Unavailable

Gender

Kids'

Size Chart

24 IN
Height Range4'6''-5'1''
Reach352
Stack460
Effective Top Tube510
Seat Tube Center-Top325
Standover Height602
Head Tube Length90
Head Tube Angle (degrees)70
Seat Tube Angle (degrees)71
Bottom Bracket Height260
Wheelbase958
Chainstay410
Fork Offset41

Sizing Notes

Measurements are stated in millimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
