Cannondale Trail 20 Kids' Bike
$499.00

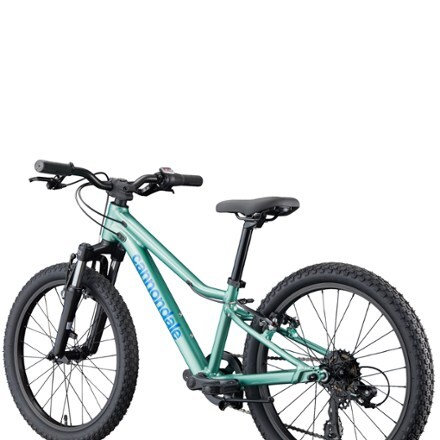

This sporty Cannondale kids' bike is up for anything, from sidewalk cruising to trail blazing. It has versatile multisurface tires. And the 40 mm Suntour suspension fork smooths out the ride.
Key Details
Wheel Size
20 inches
Fork Travel
40 millimeters
Number of Gears
7 gear(s)
- 20 in. wheels offer a great blend of speed, handling and proper fit for riders between 3 ft. 10 in. and 4 ft. 3 in. tall (117–130 cm)
- Lightweight aluminum frame and components make the bike easy to pedal
- Bump-smoothing Suntour 40 mm fork
- Kid-correct stand-over height makes it easier for kids to get on and off the bike
- With versatile on-road and off-road tires and a bump-smoothing suspension fork, Trail 20 is built to build cycling skills and confidence
- Low-torque twist shifters with wide-range 7-speed gearing make it easy to learn how to shift gears
- Bike weighs no more than 30–40% of a child's weight, because a light bike is easier and more fun to ride
- Kid-correct reach keeps kids in comfortable control of the bike
- Kid-correct gearing—lower gearing and shorter crankarms are designed for shorter, less powerful legs, with a narrower Q-Factor (width) for a more natural stance
- All this makes it easier for kids to get moving and to stay moving
- Sized to fit kids' anatomies, with a smaller handlebar and grips, kid-specific seat, and pedals sized for kids' feet
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Trail Product LineView all Cannondale Kids' Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Cycling |
|---|---|
| Frame | SmartForm C3 alloy, rim brakes, rack/fender mounts |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | Suntour XCT-JR 20, 40 mm travel, 1-1/8 in. steerer, coil, with cantilever mounts |
| Fork Travel | 40 millimeters |
| Crankset | Prowheel, Pro-V30, 130 mm length, 30T |
| Bottom Bracket | Cartridge, square taper |
| Shifters | microSHIFT, low-torque Twist Shift, 7-speed |
| Rear Derailleur | microSHIFT M21S |
| Rear Cogs | SunRace, 14-28, 7-speed |
| Number of Gears | 7 gear(s) |
| Brake Type | Rim |
| Brakes | Promax V-brake |
| Brake Levers | Alloy, linear pull |
| Rims | Cannondale, lightweight alloy, 20 in., 28h |
| Front Hub | KT alloy, nutted axle |
| Rear Hub | KT alloy, 7-speed freehub |
| Wheel Size | 20 inches |
| Tires | Innova 20 x 1.95 in., multiuse tread |
| Tire Width | 1.95 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Lightweight alloy, 25.4 mm, 580 mm |
| Stem | Forged and machined aluminum, 30 mm |
| Seat Post | One-piece, clamp-less, alloy, 25.4 mm |
| Saddle | Cannondale Kid's Comfort |
| Pedals | Wellgo Composite Platform with reflectors |
| Headset | FSA, alloy, 1-1/8 in. |
| Chain | KMC Z7, 7-speed |
| Weight | Unavailable |
| Gender | Kids' |
Cannondale Bikes (C05534)
| 20 IN | |
|---|---|
| Height Range | 3'10" - 4'3" |
| Reach | 30.4 |
| Stack | 44.8 |
| Effective Top Tube | 45 |
| Seat Tube Center-Top | 26 |
| Standover Height | 49.5 |
| Head Tube Length | 9.5 |
| Head Tube Angle (degrees) | 69.5 |
| Seat Tube Angle (degrees) | 72 |
| Bottom Bracket Height | 21.4 |
| Wheelbase | 86.2 |
| Chainstay | 36.5 |
| Fork Offset | 4 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Write a Review
Adding a review will require a valid email for verification
1 week ago
2015 called, they want there build spec back
No, I do not recommend this product
The build spec on this bicycle is outdated compared to other brands for the same or close to the same price point. Disc brakes would offer better stoping power especially in adverse weather. The amount of travel on the suspension fork does not justify the added weight and complexity. The drivetrain could do with more gears, a wider gear range, and a nicer rear mech.
