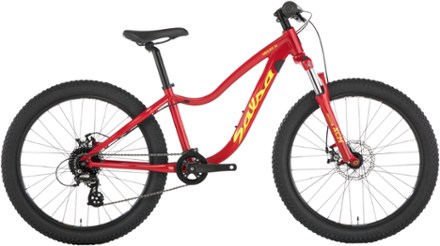

Salsa Timberjack 24 SUS Plus Kids' Bike - 2019
This product is not available.
The Salsa Timberjack 24 SUS Plus bike's SR Suntour XCM suspension fork with 80mm travel helps kids handle trail bumps and obstacles. 3 in. plus tires deliver stability and traction on rough surfaces.
Shop similar productsKey Details
Wheel Size
24 inches
Fork Travel
80 millimeters
Number of Gears
8 gear(s)
- Timberjack kids' geometry accommodates the riding style of younger riders; kids steer by pushing the handlebar and leaning by response rather than leaning then countersteering
- This, combined with the lower strength of a child relative to an adult, means that the steering and handling need to be quicker and more responsive than a normal mountain bike
- 3 in. plus-size tires deliver flotation, traction and, most importantly, added stability that can help smaller bodies stay upright in loose conditions
- Lightweight aluminum 6061-T6 heat-treated frame is built to persevere in the young adventurer's world; includes internal cable routing for rear brake and water bottle mount
- BOOST width hub spacing offers modern plus-bike spacing with bolt-on hubs
- 1x8 Narrow Wide drivetrain is easy to learn and easy to operate with a single twist shifter
- Kid-specific features include a size-specific saddle, adjustable brake levers for small hands and more secure stopping, and small pedals to better fit smaller feet
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Salsa Timberjack Product LineView all Salsa- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | 6061-T6 heat-treated aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCM 30 24" Plus, 80mm travel |
| Fork Travel | 80 millimeters |
| Crankset | Samox, 28t |
| Shifters | Shimano Tourney Revo Shifter |
| Rear Derailleur | Shimano M310 Altus |
| Rear Cogs | SunRace CSM400, 12-32t |
| Number of Gears | 8 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Promax Mechanical, 160mm front and 140mm rear rotors |
| Rims | WTB STP i35 TCS 24" 32h |
| Front Hub | Novatec |
| Rear Hub | Novatec |
| Wheel Size | 24 inches |
| Tires | Chao Yang 24 x 3" |
| Tire Width | 3.0 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Promax |
| Stem | Promax |
| Seat Post | Promax |
| Saddle | Velo |
| Pedals | Included |
| Headset | Cane Creek 10 |
| Chain | KMC Z57 |
| Weight | Unavailable |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
Salsa Bikes (140392)
| 24 IN | |
|---|---|
| Height Range | 140 - 157cm |
| Reach | 375 |
| Stack | 525 |
| Effective Top Tube | 535 |
| Seat Tube Center-Top | 330 |
| Standover Height | 593 |
| Head Tube Length | 100 |
| Head Tube Angle (degrees) | 68 |
| Seat Tube Angle (degrees) | 73 |
| Bottom Bracket Height | 30 |
| Wheelbase | 1,032 |
| Chainstay | 415 |
| Fork Offset | 40 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
