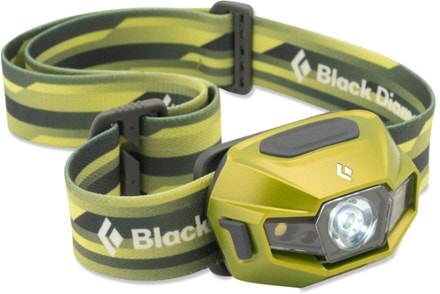

Black Diamond ReVolt Headlamp

This product is not available.

Shop similar products

The sophisticated Black Diamond ReVolt headlamp has a bright, powerful beam that lights up the night, and it can operate on alkaline or rechargeable NiMH batteries (both are included).


  • Pop the NiMH batteries in the ReVolt, connect the included micro USB cable and start charging from any USB power source, such as a solar panel, laptop or car power port
  • ReVolt also accepts non-rechargeable AAA batteries, so if you're on a mountain without a way to recharge, you can throw in your backup alkaline batteries and you're good to go
  • Headlamp features a TriplePower LED that outputs up to 110 lumens and throws a beam up to 70m when powered by AAA alkaline batteries
  • TriplePower LED outputs 90 lumens and illuminates objects up to 66m away when powered by AAA NiMH rechargeable batteries
  • 2 SinglePower white LEDs and 2 SinglePower red LEDs output 25 lumens and throw a beam up to 9m with alkaline batteries and 8m with NiMH batteries
  • Dimmer switch lets you choose the light output needed for the task at hand, from a blazing 110 lumens down to 4 lumens
  • Use the red LEDs to preserve night vision while hanging out at camp or making your way down the trail; red light mode activates without having to cycle through white mode
  • Use the strobe function to flash red or white light to signal for help
  • 3-level power meter shows how much battery life is remaining
  • Alkaline batteries provide up to 70 hrs. of use with the TriplePower LED on high and 300 hrs. with the TriplePower LED on low
  • NiMH batteries provide up to 12 hrs. of use with the TriplePower LED on high and 190 hrs. with the TriplePower LED on low
  • Recharge the NiMH batteries without removing them from the headlamp; simply plug the included USB cable into the headlamp and a USB power source
  • Lock mode prevents the Black Diamond ReVolt headlamp from accidentally being turned on while in your backpack
  • IPX4 water-resistant construction delivers reliability in inclement weather
  • Black Diamond ReVolt headlamp comes with 3 AAA alkaline batteries, 3 AAA NiMH batteries and a micro USB cable for recharging the NiMH batteries; wall plug not included


Specifications are based on use with 3 AAA alkaline batteries.
View all Black Diamond LED Headlamps

Technical Specs

Best Use


Bulb Type


Bulb Detail

High-output LED/2 LEDs/2 red LEDs

Red Light Mode


Beam Type



Max Light Output (Lumens)

110 lumens

Light Output

High: 110 / low: 4 lumens

Max Beam Distance (m)

70 meters

Beam Distance

High: 70 / low: 9 meters

Brightness Levels

2 + dimmer



Average Run Time

High: 70 / low: 300 hours

Regulated Output





3 AAA alkaline or 3 AAA NiMH rechargeable


2.25 x 2 x 1.5 inches

Weight With Batteries

3.5 ounces
