Cannondale Cargowagen Neo Electric Bike
With a low and wide step-through frame, low center of gravity and stable yet agile handling, the Cannondale Cargowagen Neo electric bike delivers confidence and control with even the heaviest loads.
Key Details
- A total capacity of 200 kg lets you carry 2 kids and lots of stuff with ease
- Compact dimensions make parking and storing simple and convenient
- Bosch Performance Speed motor has the power to move any load, all the way to 28 mph
- 545 Wh battery for plenty of range
- Need to go even farther? With 2 battery mounts, both connected to the same, convenient charging port on the frame, it's easy to double your range (second battery not included)
- Shimano Deore LinkGlide 10-speed gearing for smooth, durable shifting
- Small diameter 20 in. wheels are durable and allow a low step-over height and low center of gravity to make getting on or off the bike easy and improve stability and agility

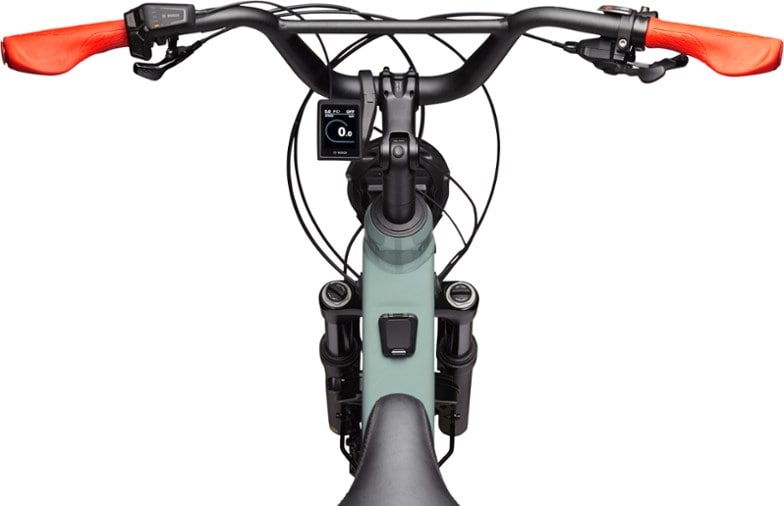

- Keep track of range, battery power, boost levels, speed and more with the easy-to-read Kiox display, mounted right up front on the handlebar
- Cushion your cargo and yourself with the smooth-riding suspension fork up front—it makes rough roads and even unpaved paths smooth
- Dropper seatpost quickly raises and lowers the saddle with the push of a lever on the handlebar, making it even easier to get on or off, or balance the bike while stopped
- Low center of gravity, StepThru frame and adjustable components can comfortably accept nearly any rider, from the short and small to the big and tall
- Designed with grippy grips, a supportive saddle, and natural, upright seating position, making this bike not just easy to ride all day, but a lot of fun, too
- Keys, wallet, water, snacks or whatever else you need close all fit neatly into the convenient central storage area, safely tucked down low and out of the way
- Comes ready to tackle the to-do list with a heavy-duty kickstand, wheel covers, chainguard, running boards, fenders, lights and even a lock
- Add other Cannondale accessories to suit your needs, such as a front rack or rear deck add-ons like a cushion and cargo box (accessories not included)
- Trailer mounting point fits most trailer types (trailer not included)
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Speed |
| Motor Type | Mid-Drive |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 545 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4.8 hours |
| Pedal Assist Range | 65 miles |
| Frame | SmartForm C2 Alloy step-through, integrated rear cargo rack (80 kg), integrated head tube rack mounts, dual battery ready, internal cable routing, disc brake, tapered head tube, center console storage |
| Step-Through | Yes |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80 mm travel |
| Fork Travel | 80 millimeters |
| Crankset | Samox, 52T |
| Shifters | Shimano Deore, 10-speed |
| Rear Derailleur | Shimano Deore 5130, 10-speed |
| Rear Cogs | Shimano CUES CS-LG300, 11-41T, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro HD-T5040, 4-piston hydraulic disc, 203/180 mm rotors |
| Brake Levers | Tektro HD-T5040, hydraulic disc |
| Rims | Heavy duty, alloy, double wall, 36 hole, 35 mm internal width, disc-specific |
| Front Hub | Formula, cartridge sealed bearings, 15 x 110 mm, Center Lock |
| Rear Hub | Formula, cartridge sealed bearings, 12 x 148 mm, Center Lock |
| Wheel Size | 20 inches |
| Tires | Front: Schwalbe Pick-Up, 20 x 2.6 in. (65-406); Rear: Schwalbe Pick-Up, 20 x 2.15 in. (55-406) |
| Tire Width | 2.15 inches 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale Cruise Control Hi-Rise, 6061 alloy, 31.8 mm, 15 deg. back, 740 mm |
| Stem | Alloy, adjustable angle, 31.8 |
| Seat Post | TranzX Suspension dropper post, 31.6, 70 mm drop |
| Dropper Post | Yes |
| Saddle | Cannondale Comfort |
| Pedals | Cannondale Urban |
| Headset | Acros Blocklock with steering stop, semi-integrated |
| Chain | KMC EGlide |
| Weight | Unavailable |
| Gender | Unisex |
| One Size | |
|---|---|
| Height Range | 4'11''-6'3'' |
| Effective Top Tube | 58.7 |
| Seat Tube Center-Top | 44 |
| Seat Tube Angle (degrees) | 71 |
| Bottom Bracket Height | 28 |
| Wheelbase | 133.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification

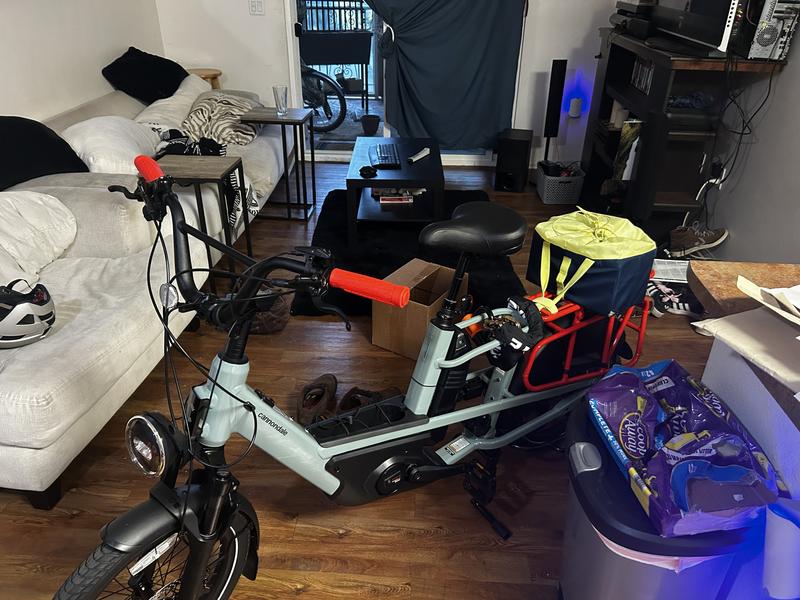

Customer Images
