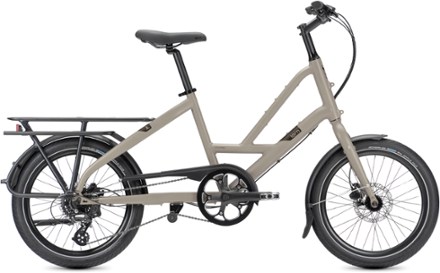

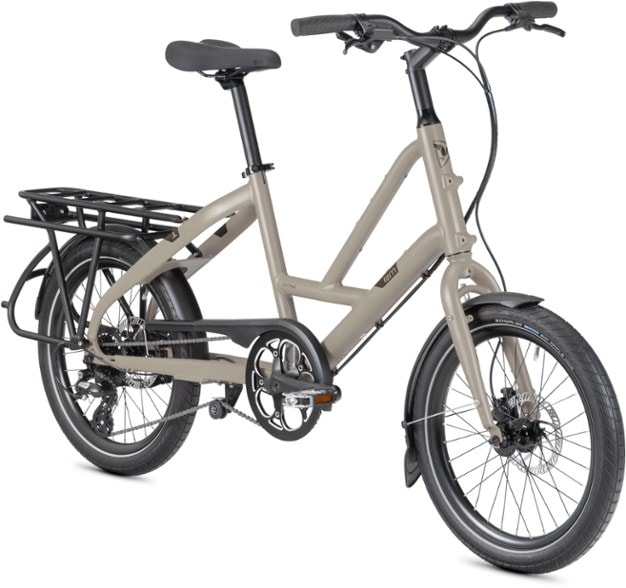

With its rear rack and optional front track, the Tern Short Haul D8 cargo bike allows you to create your ideal setup to haul your kid, your stuff, your dog—or all of the above.

Features

  • Rear rack carries up to 50 kg (110 lbs.); optional front rack carries an additional 20 kg (44 lbs.)
  • Frame and fork are EFBE-tested up to the 140 kg (308 lbs.) Maximum Gross Vehicle Weight for safety and reliability
  • Fits riders of different heights from 147 cm to 190 cm (4 ft.10 in. to 6 ft. 3 in.), weighing up to 120 kg (264 lbs.)
  • Low 49 cm (19 in.) standover height makes mounting, dismounting and waiting at stops easier
  • 1 x 8-speed Shimano Altus derailleur with trigger shifter
  • Hydraulic disc brakes deliver excellent stopping power, even when carrying heavy loads
  • Specs and images are subject to change

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Tern Cargo Bikes

Technical Specs

Item #216027
Best Use

Bike Commuting

Frame

140 g 6061aluminum, EFBE Tri-Test approved

Step-Through

Yes

Bike Suspension

No Suspension

Fork

140 g steel, EFBE-approved

Crankset

6061 aluminum crankarm

Bottom Bracket

FSA, cartridge sealed bearings

Shifters

Trigger, 1 x 8-speed

Rear Derailleur

Shimano Altus

Rear Cogs

11-34T

Number of Gears

8 gear(s)

Brake Type

Hydraulic Disc Brake

Brakes

Tektro Hydraulic Disc

Brake Levers

Tektro Hydraulic

Rims

Doublewall disc

Front Hub

Aluminum disc

Rear Hub

Aluminum disc, 8-speed

Wheel Size

20 inches

Tires

Reflex 55-406, puncture protection

Tire Width

2.15 inches

Handlebar Shape

Riser Bar

Handlebar

6061 aluminum low riser, 31.8 mm

Stem

Forged, 31.8 mm

Seat Post

6061 aluminum micro-adjust clamp, 31.6 mm

Saddle

Velo Comfort

Pedals

Urban with non-slip surface

Headset

TH, cartridge bearings

Chain

8-speed KMC

Weight

35 lbs. 8 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Sustainability

Contains recycled materials

Size Chart

One Size
Height Range4’10” - 6’3”

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
