$610.00
This item is not eligible for Member Coupons.
Color: Black
please select a Size
Quantity
Select size for delivery dates
Shipping restrictions apply.
Oversize shipping may apply.

Members get an estimated 10% back on this item as a part of your annual .

To buy,  sign in as an REI Co-op Member or join now.
Join the co-op today to get access to a lifetime of benefits.

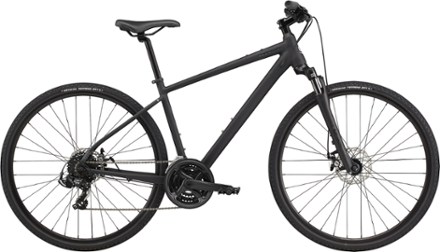

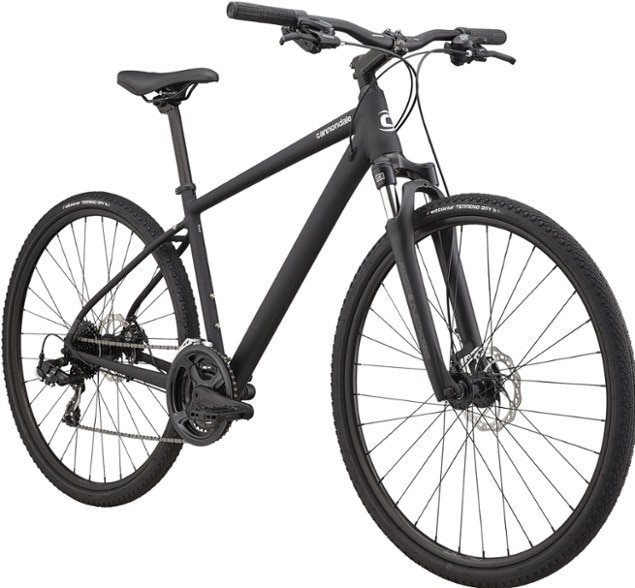

From paved city streets to dusty old country roads, the Cannondale Quick CX 4 bike broadens your horizons with unlimited potential to experience what a bike can do and where it can go.

Features

  • Lightweight, yet heavy-duty, SmartForm C3 alloy frame and long-travel suspension are well suited to handle multisurface riding and have the versatility to do it all
  • Robust 63 mm travel front suspension helps absorb rough bumps along the way while the 1-1/2 to 1-1/8 in. tapered head tube keeps steering precise
  • SAVE micro-suspension technology uses engineered flex in the frame reduce vibrations and increase the consistency of tire contact on uneven surfaces
  • Going up or going down, 3 x 7-speed shifting with powerful Promax disc brakes keep you in control
  • Large, Vittoria 700c x 40 mm multi-surface tires provide excellent on- and off-road grip, whether you're riding dirt or pavement
  • Natural upright riding position inspired by mountain biking keeps you comfortable and in control whenever you ride
  • StraightShot internal cable routing makes for clean lines and easy maintenance
  • Fender brackets and universal rack mounts let you customize the Quick CX for riding in foul weather or making trips to the store (fenders and racks not included)
  • Bright 360° reflective elements help to make you more visible to motorists in low-light conditions
  • Specs and images are subject to change

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Cannondale Quick Product LineView all Cannondale Hybrid Bikes

Technical Specs

Item #184513
Best Use

Recreational Cycling

Frame

SmartForm C3 alloy, 1-1/2 to 1-1/8 in. tapered head tube

Step-Through

No

Bike Suspension

Front Suspension

Fork

Suntour NEX-E25, 63 mm, coil, custom crown

Fork Travel

63 millimeters

Crankset

Prowheel, 48/38/28T

Bottom Bracket

Cartridge square taper

Shifters

microSHIFT, 3x7-speed

Front Derailleur

microSHIFT Dual Pull Compact, Band Clamp

Rear Derailleur

microSHIFT M26L

Rear Cogs

14-34T, 7-speed

Number of Gears

21 gear(s)

Brake Type

Mechanical Disc Brake

Brakes

Promax mechanical disc, 160/160 mm rotors

Brake Levers

Shimano ST-EF41

Rims

Cannondale Disc, double wall with eyelets, 32h

Front Hub

Alloy, sealed, quick-release

Rear Hub

Alloy, sealed, quick-release

Wheel Size

700c

Tires

Vittoria Terreno Dry, 700c x 40 mm, reflective strip

Tire Width

40 millimeters

Handlebar Shape

Riser Bar

Handlebar

Cannondale Riser, 6061 alloy, 25 mm rise, 8 deg. sweep, 6 deg. rise, 700 mm

Stem

6061 alloy, 31.8, 8 deg.

Seat Post

6061 alloy, 27.2 x 350 mm

Saddle

Cannondale Fitness Ergo Double Density

Pedals

Cannondale Platform

Headset

Semi Integrated, tapered

Chain

KMC Z7, 7-speed

Weight

31 lbs. 14.4 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

XSSMLXLXXL
Height Range4'10" - 5'3"5'2" - 5'7"5'5" - 5'10"5'9" - 6'2"6'0" - 6'5"6'4'' - 6'9''
Reach39.140.241.242.243.244.2
Stack57.959.060.762.364.065.7
Effective Top Tube56.658.259.761.262.864.3
Seat Tube Center-Top35.040.045.050.055.060.0
Standover Height67.772.576.480.284.087.6
Head Tube Length9.010.812.614.316.218.0
Head Tube Angle (degrees)69.069.069.069.069.069.0
Seat Tube Angle (degrees)73.073.073.073.073.073.0
Bottom Bracket Height29.329.329.329.329.329.3
Wheelbase109.1110.8112.4114.1115.8117.4
Chainstay45.045.045.045.045.045.0
Fork Offset5.55.55.55.55.55.5

Sizing Notes

Measurements are stated in centimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
