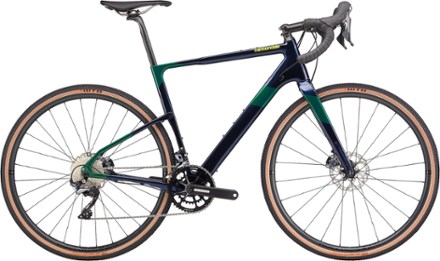

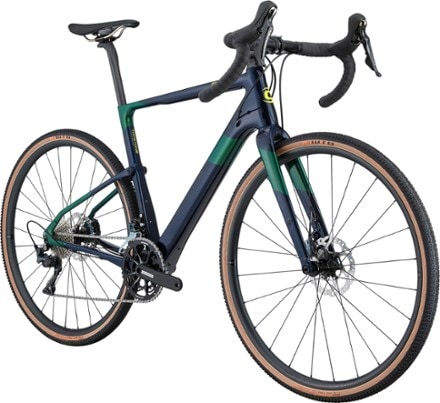

Cannondale  Topstone Carbon Ultegra RX Bike - 2020

This product is not available.

A gravel bike with real suspension, the Cannondale Topstone Carbon Ultegra RX 2 bike is a capable off-road, comfortable on-road adventure rig with more give and more go.

Shop similar products

Features

  • Shimano Ultegra RX 2 x 11 mechanical drivetrain uses a clutch design that cuts chain chatter and maintains crisp, accurate shifting over bumpy ground
  • Hydraulic disc brakes offer excellent stopping power on any terrain
  • Lightweight KingPin suspension system lets you ride harder on dirt and more smoothly on pavement, giving you better control, traction and comfort
  • KingPin system provides up to 30mm of travel at the saddle thanks to a thru-axle pivot joining the seatstays and seat tube
  • Flex zones in the chainstays, seat tube and top tube offer compliance at the saddle and added absorption at the rear axle
  • Comes with big 700c x 37mm tires for grip and comfort, but fits up to 700c x 40mm tires thanks to a roomy design with tons of clearance
  • Also fits smaller 650b wheels with up to 48mm wide tires for riders who are looking for maximum flotation
  • Store gear and water with multiposition mounts on the down tube, top tube, seat tube and under the down tube—there are even mounts on the fork
  • Fully fender ready; a removable fender bridge on the rear stays is there when you need it and gone when you don't
  • Speed Release thru axles offer the stiffness and solid feel of a thru axle with the easy use of a quick-release axle; compatible with most thru-axle wheelsets
  • Direct Line internal cable routing guides the cable and housing through the frame using an internal tube from entry to exit for headache-free service
  • Refined geometry and rider position deliver an experience that's stable, composed and comfortable without losing that spark
  • Built to accept an internally routed 27.2 dropper seatpost (not included)
  • Balanced riding position is upright enough for comfort over the long haul and control for technical off-road terrain, yet still low and forward enough for speedy efficiency
  • OutFront steering geometry keeps the steering light and agile, while positioning the wheel farther in front of the rider for stability and confidence on rougher stuff
  • An integrated wheel sensor delivers hyperaccurate speed, route and distance info, bike registration, service reminders and more—all through the free Cannondale app
  • Suspension and overall frame ride-feel are custom-tuned by size using different carbon layup and tube dimensions
  • Pedals not included
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View the Cannondale Topstone Product LineView all Cannondale Hybrid Bikes

Technical Specs

Best Use

Road Cycling

Frame

BallisTec Carbon, Kingpin suspension system, Proportional Response size-specific construction, Directline internal cable routing, BB30-83 Ai, 142x12 Speed Release thru-axle, flat-mount disc,

Bike Suspension

No Suspension

Fork

BallisTec Carbon, 55mm OutFront offset, SAVE, 1-1/8 to 1-1/2 in. steerer, integrated crown race, Directline internal routing, 12x100mm Speed Release thru-axle, flat mount disc

Crankset

Cannondale 1, BB30a, FSA rings, 46/30

Bottom Bracket

FSA Cartridge

Shifters

Shimano Ultegra hydro disc, 2x11

Front Derailleur

Shimano Ultegra, braze-on

Rear Derailleur

Shimano Ultegra RX

Rear Cogs

Shimano Ultegra, 11-34, 11-speed

Number of Gears

22 gear(s)

Brake Type

Hydraulic Disc Brake

Brakes

Shimano Ultegra hydro disc, 160/160mm RT54 rotors

Brake Levers

Shimano Ultegra hydro disc

Rims

HollowGram 22, 22mm deep, 25mm ID, tubeless ready

Front Hub

Formula CL-712, 12x100 center lock

Rear Hub

Formula RXC-142S

Wheel Size

700c

Tires

WTB Riddler TCS Light, 700c x 37mm, tubeless ready

Tire Width

37 millimeters

Handlebar Shape

Drop Bar

Handlebar

Cannondale 3, butted 6061 alloy, 16 deg flare drop

Stem

Cannondale 3, 6061 alloy, 7°

Seat Post

Cannondale C3, 6061 Alloy, 27.2 x 350mm (44-56), 400mm (58-63)

Saddle

Fabric Scoop Radius Sport, steel rails

Pedals

Not included

Headset

Topstone Si, 25mm Alloy top cap

Chain

Shimano HG601 11-speed

Weight

18 lbs. 9.6 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Cannondale Bikes (170069, 170062)
XSSMLXL
Reach36.837.738.539.440.2
Stack51.854.957.961.064.0
Effective Top Tube52.554.456.157.959.6
Seat Tube Center-Top41.045.850.555.360.0
Standover Height71.576.180.384.388.5
Head Tube Length9.713.116.519.823.2
Head Tube Angle (degrees)70.0°71.2°71.2°71.2°71.2°
Seat Tube Angle (degrees)73.1°73.1°73.1°73.1°73.1°
Bottom Bracket Height27.327.828.028.028.3
Wheelbase99.9101.0103.0104.0106.0
Chainstay41.541.541.541.541.5
Fork Offset5.55.55.55.55.5

Sizing Notes

Measurements are stated in centimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
