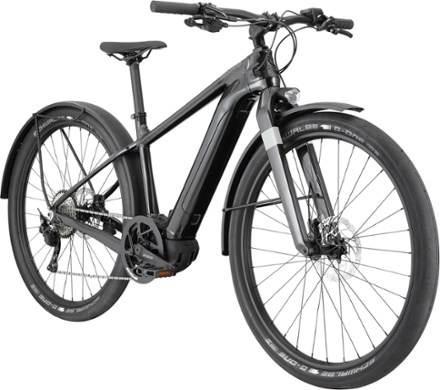

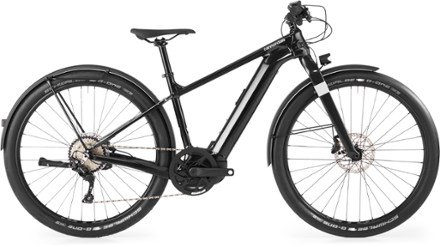

Built to turn rush hour into "what a rush!" hour, the Cannondale Canvas Neo 1 electric bike features big wheels and tires for comfort, grip and momentum.
- Built for daily duty with integrated rear pannier rack, full fenders, bright front and rear lights and weather-sealed battery cover
- Upright but sporty riding position features big, grippy, bump-erasing tires
- Bosch Performance Line Speed drive unit is compact and light, offering 75 Nm of torque and seamless assistance all the way up to 28 mph
- Smartform C1 alloy construction creates an incredibly light, stiff and durable frame
- Carbon fiber fork is light, stiff and durable; offers precise handling without the weight
- Proprietary motor mount positions the Bosch drive unit low and forward in the frame, keeping the center of gravity low and the chainstays short for agile handling
- For double the range and double the adventure, the Canvas Neo frame comes pre-wired and ready for the installation of a second battery kit
- Highly reflective accents on the frame and fork increase visibility in low-light conditions
- Integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Line Speed 250W |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 75 |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 500 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4.5 hours |
| Pedal Assist Range | 40 miles |
| Frame | SmartForm C1 alloy, dual battery ready, removable down tube battery, SAVE, tapered head tube, internal cable routing, thru axle, post-mount disc, hidden kickstand |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | BallisTec Carbon, 1-1/8 in. to 1.5 in. tapered steerer, OutFront 55mm offset, post mount disc, 15x110mm thru axle, hidden cable routing |
| Crankset | Bosch Gen4 with custom Ai offset, 46t |
| Shifters | Shimano Deore, 10-speed |
| Rear Derailleur | Shimano Deore GS |
| Rear Cogs | Shimano HG500 10-speed, 11-42t |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Deore hyrdo disc, 203/180mm RT30 rotors |
| Brake Levers | Shimano Deore hydro disc |
| Rims | WTB STX i29 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400 15x110mm thru axle |
| Rear Hub | Shimano MT400 12x148mm thru axle |
| Wheel Size | 29 inches |
| Tires | Schwalbe G-One Speed Performance, 29 x 2.35 in., RaceGuard |
| Tire Width | 2.35 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 alloy, 15mm rise, 8-degree sweep, 4-degree rise, 740mm |
| Stem | Cannondale 3, 3D forged 6061 alloy, 1-1/8 in., 31.8mm, 0-degree |
| Seat Post | 6061 alloy, 31.6 x 350mm |
| Saddle | Cannondale Ergo Urban |
| Pedals | Cannondale Fitness |
| Headset | Integrated, 1-1/8 to 1.5 in., sealed angular contact bearings (Integrated steer stop size small only) |
| Chain | Shimano HG54, 10-speed |
| Weight | 44 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 39.5 | 43.5 | 46.6 | 49.5 |
| Stack | 59.5 | 61.4 | 62.3 | 63.2 |
| Effective Top Tube | 55.9 | 59.5 | 62.8 | 66.0 |
| Seat Tube Center-Top | 40.0 | 43.5 | 47.0 | 50.0 |
| Standover Height | 73.6 | 72.5 | 73.4 | 73.3 |
| Head Tube Length | 12.0 | 12.0 | 13.0 | 14.0 |
| Head Tube Angle (degrees) | 68.4° | 68.4° | 68.4° | 68.4° |
| Seat Tube Angle (degrees) | 75.0° | 75.5° | 75.1° | 74.7° |
| Bottom Bracket Height | 31.7 | 29.7 | 29.8 | 29.8 |
| Wheelbase | 113.4 | 117.1 | 120.5 | 123.9 |
| Chainstay | 47.0 | 47.0 | 47.0 | 47.0 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
