GHOST Hybride Square Trekking B1.8 AL Electric Bike
This product is not available.

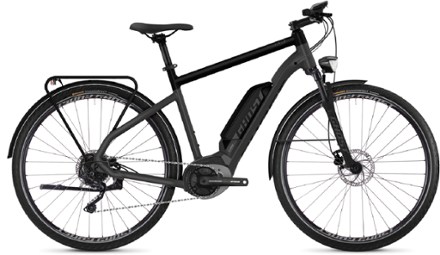

The GHOST Hybride Square Trekking B1.8 AL electric bike features a stiff alloy frame for a fast riding feel and comes equipped with fenders and luggage carriers for everyday use.
Shop similar productsKey Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Bosch active line plus
Battery Capacity (Wh)
500 watt hours
Weight
53 pounds
- Powerful Bosch mid-drive motor and 500Wh integrated battery with 3 assist modes
- Shimano 9-speed drivetrain provides smooth, reliable shifting
- Tektro hydraulic disc brakes provide power one-finger braking
- Outfitted with rear rack and fenders for commuting and touring
- REI is proud to be the exclusive U.S. retailer of GHOST brand bikes
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the GHOST Square Product LineView all GHOST Electric City Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch active line plus |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 50 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 500 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 5 hours |
| Pedal Assist Range | 20-30 miles |
| Frame | HYBRIDE Square Trekking AL |
| Step-Through | No |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour NEX E25 |
| Fork Travel | 63 millimeters |
| Crankset | FSA 38T |
| Shifters | Shimano Altus SL-M2000 |
| Rear Derailleur | Shimano Altus RD-M2000 9-S |
| Rear Cogs | Shimano CS-HG-200-9 11-34 |
| Number of Gears | 9 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro HD-T285 2/2 Piston |
| Brake Levers | Tektro HD-T285 2/2 Piston |
| Rims | Rodi Blackrock 32H |
| Front Hub | Formula DC 20 QR |
| Rear Hub | Formula DC 22 QR |
| Wheel Size | 700c |
| Tires | Continental Contact Plus |
| Tire Width | 42 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | GHOST Low Rizer SQUARE 680mm, rise 25mm, 31.8 mm diam. |
| Stem | GHOST SQUARE 31.8mm diam. |
| Seat Post | GHOST SP-DC1 31.6mm |
| Saddle | Ghost Cro-Mo Rails |
| Pedals | Not included |
| Headset | Integrated |
| Chain | Shimano 9-speed |
| Weight | 53 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
GHOST Bikes (153476)
| M | L | XL | |
|---|---|---|---|
| Reach | 393 | 400 | 403 |
| Stack | 641 | 664 | 683 |
| Effective Top Tube | 595 | 610 | 625 |
| Seat Tube Center-Top | 520 | 570 | 620 |
| Standover Height | 770 | 815 | 855 |
| Head Tube Length | 165 | 185 | 205 |
| Head Tube Angle (degrees) | 70 | 71 | 71 |
| Seat Tube Angle (degrees) | 72.5 | 72.5 | 72 |
| Wheelbase | 1129 | 1133 | 1142 |
| Chainstay | 476 | 476 | 476 |
Sizing Notes
Measurements are stated in millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
