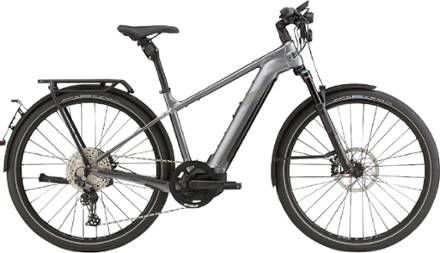

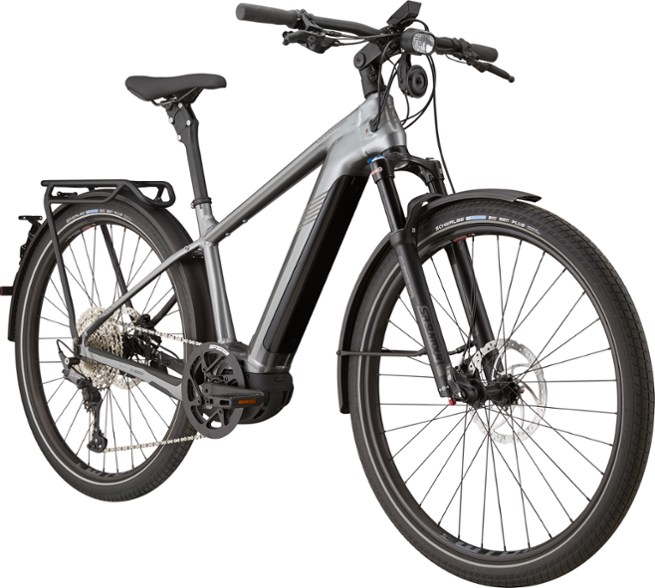

Cannondale Tesoro Neo X Speed Electric Bike
A rugged, comfortable electric bike for commuting and transport, the Cannondale Tesoro Neo X Speed electric bike is built off-road tough to handle the worst that city roads can dish out.
Key Details
- Bosch Performance Line Speed drive unit and long-lasting 625 Wh PowerTube battery offer support up to 28 mph, max torque of 85 Nm and boost up to 340% of your output
- With up to 117 km (73 mi) of range on a single charge, you've got the power to go where you want
- 28 in. wheels with high-volume tires absorb bumps, roll over obstacles and deliver better speed, comfort and control, on road or off
- Seatpost is designed to smooth out impacts and jolts from the road, so you can roll along in total comfort
- Comes equipped with a SR Suntour Raidon 34 100 mm travel fork
- For double the range, Tesoro Neo X frame comes prewired and ready for installation of a second battery kit (not included)
- SmartForm C1 alloy frame is incredibly light, stiff and durable
- Ai Offset Drivetrain opens up the rear triangle for more tire clearance and delivers a stiffer, stronger rear wheel
- Highly reflective accents on the frame and tires increase visibility in low light
- 12-speed drivetrain
- Comes equipped with a horn, mirror, extra-bright headlights, brake lights and disc brakes with large rotors
- Also includes an integrated speed sensor, KickFlip hidden kickstand mount, motor protection, rack/fender mount and a lock mount
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Line Speed 250W (28 mph) |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 625 watt hours |
| Battery Removable | Yes |
| Pedal Assist Range | 73 miles |
| Frame | SmartForm C1 alloy |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour Raidon 34, 100 mm, 15 x 110, 46 mm offset |
| Fork Travel | 100 millimeters |
| Crankset | FSA Bosch E-Bike with custom Ai offset, 46T |
| Shifters | Shimano Deore M6100, 12-speed |
| Rear Derailleur | Shimano Deore |
| Rear Cogs | Shimano Deore M6100, 10-51T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Magura MT5 hydraulic disc, 203/203 mm Storm rotors |
| Brake Levers | Magura MT Next "e" with brake light switch |
| Rims | WTB STX i30 TCS, 32 h, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110 mm thru axle |
| Wheel Size | 29 inches |
| Tires | Schwalbe Big Ben Plus Performance, Green Guard, Snake Skin |
| Tire Width | 2.15 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15 mm rise, 8 deg. sweep, 4 deg. rise, 740 mm |
| Stem | Cannondale Adjustable, A-headset, 31.8 mm |
| Seat Post | Parallelogram Suspension Seatpost, 31.6 mm |
| Saddle | Cannondale Ergo Touring |
| Pedals | Cannondale Fitness |
| Headset | Integrated Sealed Bearing, Tapered |
| Chain | KMC X12, 12-speed |
| Weight | 58 lbs. 6.4 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'4''-5'8'' | 5'7''-6'0'' | 6'0''-6'3'' | 6'4''-6'8'' |
| Reach | 40.5 | 42 | 45 | 48 |
| Stack | 62.4 | 62.4 | 63.3 | 64.2 |
| Effective Top Tube | 58.4 | 59.9 | 63.2 | 66.5 |
| Seat Tube Center-Top | 40 | 43.5 | 47 | 50 |
| Standover Height | 74.5 | 74.6 | 75.3 | 75.1 |
| Head Tube Length | 12 | 12 | 13 | 14 |
| Head Tube Angle (degrees) | 67 | 67 | 67 | 67 |
| Seat Tube Angle (degrees) | 74 | 74 | 74 | 74 |
| Bottom Bracket Height | 30.9 | 30.9 | 30.9 | 30.9 |
| Wheelbase | 116.7 | 118.2 | 121.7 | 125 |
| Chainstay | 47 | 47 | 47 | 47 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
Customer Images
Great all purpose bike with all accessories I need
So far the bike is pretty awesome! I like the geometry of a martial and the wide handle bars. The suspension and big tires are very forgiving. It will make a great city bike that can transition to the dirt trails along the rivers in Sacramento. Bosch system is top notch range is good and this bike has every accessory I need from the start
Not running well even after a service.
I had the Tesoro Neo X3 2021 before that was stolen and it ran great. I bought this one at $5500 and it runs very poorly. I took it in for a service which hasn't improved the condition much. The gears are clunky and do not transition well. There is a lag on the pedal to connect with the drive. It looses power on the uphill compared to the Neo X3. Riding uphill on a slight incline in Turbo mode is still hard work. I'm thinking of returning it and getting the NeoX3. Nice features but poor performance.
Highest spec in category
It’s too bad they are being discontinued- it’s a great bike for the price. [it was $5500 originally] the Bosch speed motor & 625watt battery are excellent, with plenty of power & good range at the lower Eco setting. Good drivetrain & brakes, a good fork when set up properly: Set air pressure and damping to your weight. The shock post works pretty well, although I switched to a PNW dropper. I changed out the saddle, bars & stem, and pedals for a better fit / personal preference, but the stock parts were good. I also changed the tires to something lighter/faster, but the Schwalbe BigBen is a quality & very durable tire, perfect for the bike’s intended use. An excellent all-round e-bike for commuting, light touring & all-road use. I’ve now put 600+ miles on it, averaging 30-50 miles per day, and never used more than 75% of the battery charge. Highly recommend e-bike (my first one) from a life long cyclist.
Durability issues, very disappointing.

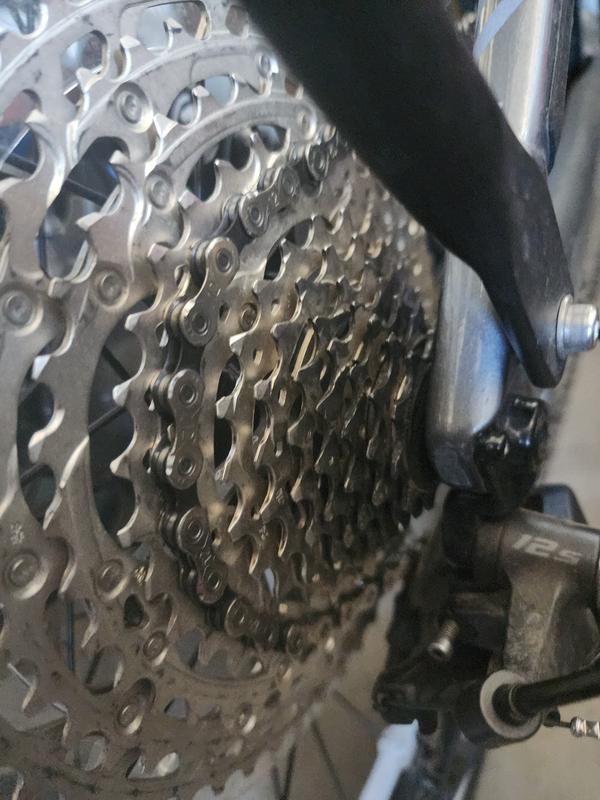

Was liking it but found it has durability/deisgn problems. After 1 month of riding, rear gears(cassette) are worn out. Only 400 miles. I've been back to REI 3 times, and they have no idea how to fix it. Emailed Cannondale, and they basically said the equivalent of "not our problem, call Shimano". In the weeds, they took a standard mountain biking gear setup which is geared speared for low speeds and put a class 3 motor on it. So to ride at speed you're basically always in the top 2 gears which aren't as durable. The bike should have been setup for a 42-54T front ring which would have solve all of this but mine came with a 36T. Cannondale seems to have figured this out later so some of the bikes come with a 45t but they won't acknowledge that they screwed their earlier customers. Other issues, REI sold it too me with the handlebars loose. I've read online something about cannondales design causes it to reloosen alot. Thanks Cannondale. The rear kickstand has to be retightened every 2 weeks because it's too cheap. The front light can't be turned off, which annoys other bikers on trail. The bike comes with a horn instead of a bell which is kind of obnoxious to use anywhere. The charge port isn't secured well so when you pull the charger out it can pull the port out with it which seems like a durability concern for the internal wiring. Do i sound bitter? Currently very frustrated with this 4k bike, Very likely I'm going to return soon if the REI bike shop doesn't give me a call back with some fixes. I've ridden several cannondale's but if they don't shape up
Happy rider
Having ridden 600 miles on the Cannondale Tesoro Neo X Speed, I can confidently share my insights on this e-bike. One of its standout features is the unparalleled comfort it offers, making even the longest rides feel like a breeze. Furthermore, the braking system is top-notch, providing a sense of security even when navigating challenging terrains. What truly sets this e-bike apart is the addition of a second battery. This enhances the range significantly, allowing for over 100 miles of travel, even in mountainous terrains. It's an invaluable feature for those long exploratory rides. Before settling on the Tesoro Neo X Speed, I meticulously compared various bikes and their respective components. In terms of value for money and overall performance, this Cannondale model genuinely stands out from the competition. In summary, the Cannondale Tesoro Neo X Speed is not just an e-bike; it's a statement of quality and efficiency. Whether you're an avid cyclist or someone looking for a reliable mode of transportation, this model is worth considering. ---
Comfortable and fast
Awesome bike. We bought this one for my wife after I had a Neo 1 for 2 years (almost 2000 miles on mine). This bike is significantly better than my 2 year old Neo 1. The computer on the Neo X Speed is wonderful and connects to an app via Bluetooth. It is light years better than my Purion system. The bike is fast and smooth. My wife has had one 40 mile ride on it and loves it. The only downside is that the power plug in the bike comes loose from the factory. It was the same on my '22 and friends that bought two NEO 1's last year. After a few years of this, I would have expected Cannondale to have fixed this oversight. It requires the bottom panel to come off and a zip tie mounting the plug in the bike frame. It is a 15 minute fix once you know what to do. I looked up a U-Tube video and fixed my '22 Neo 1. I told the assembly folks at REI about it and they fixed it upon pick up. They noted that they have seen this problem on other Tesoros. Also, when we picked up the headlight came on everytime the bike was on. Fortunately, the REI shop manager was there and she remembered how to reprogram the computer so the headlight would turn on and off as it should be. Once you get through these assembly issues, the bike is awesome.
