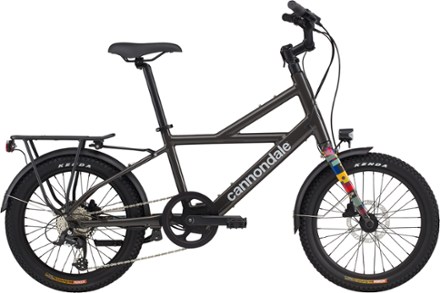

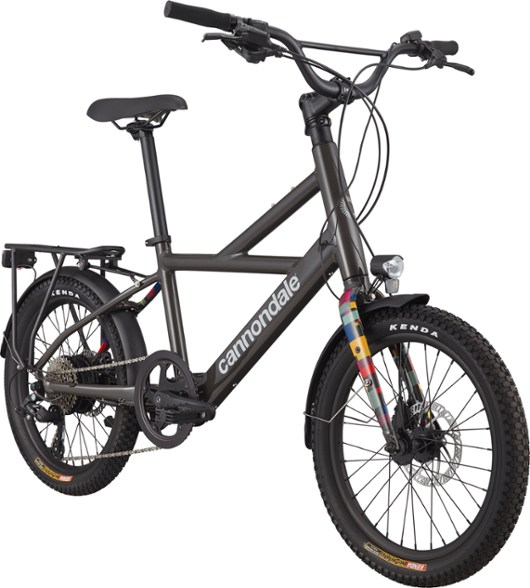

Cannondale Compact Neo Electric Bike
Compact, capable and built for urban life, the Cannondale Compact Neo electric bike takes you from home to work to the store to the trailhead, for whatever your day holds.
Key Details
- Lightweight, powerful rear-hub drive system
- Hidden down tube 250 Wh battery
- Folding stem and pedals for easy parking
- 8-speed shifting
- 20 in. wheels
- Includes a rack, lights and fenders
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Hyena 250W Rear Hub Motor MRC-250 |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 40 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 250 watt hours |
| Battery Removable | No |
| Charge Time (hrs) | 3.5 hours |
| Frame | SmartForm C2 alloy |
| Step-Through | Yes |
| Bike Suspension | No Suspension |
| Fork | SmartForm C2 alloy |
| Fork Travel | Not Applicable |
| Crankset | Samox, 48T |
| Bottom Bracket | BSA 73; Hyena torque sensor |
| Shifters | 39-8R Thumb-Tap |
| Rear Derailleur | microSHIFT M26S Short-Cage |
| Rear Cogs | 11-34T, 8-speed |
| Number of Gears | 8 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro HD-R280 hydraulic disc, 160/160 mm rotors, post mount discs |
| Brake Levers | Tektro |
| Rims | Cannondale lightweight alloy, 20 in., front: 32 h/rear: 36h |
| Front Hub | Formula DC-1420, 100 mm QR |
| Rear Hub | Hyena 250W Rear Hub Motor MRC-250 |
| Wheel Size | 20 inches |
| Tires | Kenda K-Rad |
| Tire Width | 2.35 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale Cruise Control riser, 6061 alloy, 31.8 mm, 15 deg. back, 740 mm |
| Stem | TranzX folding stem |
| Seat Post | Cannondale 4, 6061 alloy, 31.6 mm |
| Saddle | Cannondale Treadwell, 170 mm, steel rails |
| Pedals | Cannondale Folding |
| Headset | Semi-integrated, 1-1/8 in. |
| Chain | KMC X8, 8-speed |
| Weight | Unavailable |
| Gender | Unisex |
| One Size | |
|---|---|
| Reach | 39.3 |
| Stack | 53 |
| Standover Height | 59 |
| Head Tube Length | 26.6 |
| Head Tube Angle (degrees) | 68 |
| Seat Tube Angle (degrees) | 73 |
| Bottom Bracket Height | 28 |
| Wheelbase | 108.5 |
| Chainstay | 43 |
| Fork Offset | 3.8 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
