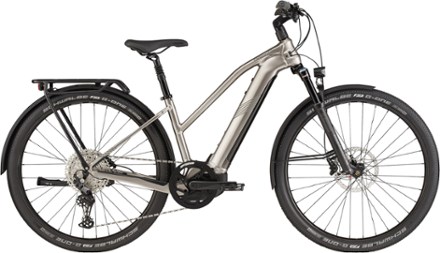

Cannondale Tesoro Neo X 1 Remixte Electric Bike
Potholes? Gravel? Singletrack? No worries. The Cannondale Tesoro Neo X 1 electric bike's step-through frame and fork and big 29 in. wheels live for bikepacking, backroad trekking or rugged transport.
Key Details
- Remixte frame features a lowered top tube for easier step-through and greater comfort
- Performance Line Speed motor and powerful 625 Wh PowerTube battery are ready to tackle any terrain with support up to 28 mph and increased torque of 85 Nm
- Long-lasting battery provides a range of up to 105 mi. (170 km)
- Premium SmartForm C1 alloy construction creates an incredibly light, stiff and durable frame
- Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the center of gravity low and the chainstays short for agile handling
- Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility—a stiffer, stronger rear wheel is just icing
- 100 mm of front suspension and wide 2.25 in. tires smooth out rough roads, gravel and potholes for a comfortable, confident experience on and off road
- 12-speed Shimano Deore shifters and derailleurs provide crisp, accurate access to a range of gears; Shimano hydraulic disc brakes deliver excellent stopping power
- An integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
- Secure, rattle-free fenders, a full rear rack, bright front and rear lights and even a kickstand mean you're ready to tackle any adventure
- Highly reflective accents on the frame and fork increase visibility in low-light conditions
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
Best Use | Bike Touring Urban Cycling |
---|---|
E-Bike Classification | Class 3: pedal assist up to 28 mph |
Motor | Bosch Performance Line Speed 250W (28 mph) |
Motor Type | Mid-Drive |
Motor Torque (Nm) | 85 Newton meters |
Battery Type | Lithium Ion |
Battery Capacity (Wh) | 625 watt hours |
Battery Removable | Yes |
Charge Time (hrs) | 4.9 hours |
Pedal Assist Range | 105 miles |
Frame | SmartForm C1 alloy |
Step-Through | Yes |
Bike Suspension | Front Suspension |
Fork | SR Suntour Raidon 34 Boost, 100 mm, 15 x 110 mm thru-axle, 46 mm offset |
Fork Travel | 100 millimeters |
Crankset | FSA Bosch E-Bike with custom Ai offset, 46T |
Shifters | Shimano Deore M6100, 12-speed |
Rear Derailleur | Shimano Deore M6100 |
Rear Cogs | Shimano Deore M6100, 10-51T, 12-speed |
Number of Gears | 12 gear(s) |
Brake Type | Hydraulic Disc Brake |
Brakes | Shimano MT200 hydraulic disc, 180/180 mm RT30 rotors |
Brake Levers | Shimano MT200 hydraulic disc |
Rims | WTB STX i30 TCS, 32h, tubeless ready |
Front Hub | Shimano MT400, 15 x 110 mm thru axle |
Rear Hub | Shimano MT510 12 x 148 mm thru axle |
Wheel Size | 29 inches |
Tires | Schwalbe G-One Allround Performance, 29 x 2.25 in., RaceGuard, tubeless ready |
Tire Width | 2.25 inches |
Handlebar Shape | Riser Bar |
Handlebar | Cannondale 3, double-butted 6061 alloy, 20 mm rise, 9 deg. back, 720 mm |
Stem | Cannondale Adjustable, A-headset, 31.8mm |
Seat Post | Suspension Seatpost, 31.6 |
Saddle | Cannondale Ergo Touring |
Pedals | Cannondale Fitness |
Headset | Integrated sealed bearing, tapered |
Chain | KMC X12, 12-speed |
Weight | 55 lbs. 6.4 oz. |
Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
Gender | Unisex |
S | M | L | |
---|---|---|---|
Height Range | 5'4" - 5'8" | 5'7" - 6'0" | 6'0" - 6'3" |
Reach | 40.5 | 42.0 | 45.0 |
Stack | 62.4 | 62.4 | 63.3 |
Effective Top Tube | 58.4 | 59.9 | 63.2 |
Seat Tube Center-Top | 40.0 | 43.5 | 47.0 |
Standover Height | 74.5 | 74.6 | 75.3 |
Head Tube Length | 12.0 | 12.0 | 13.0 |
Head Tube Angle (degrees) | 67.0 | 67.0 | 67.0 |
Seat Tube Angle (degrees) | 74.0 | 74.0 | 74.0 |
Bottom Bracket Height | 30.9 | 30.9 | 30.9 |
Wheelbase | 116.7 | 118.2 | 121.7 |
Chainstay | 47.0 | 47.0 | 47.0 |
Fork Offset | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Review this Product
Adding a review will require a valid email for verification
over the top electric bike
this bike is the bomb. its heavy the tires grab and its so stable. it has unbelievable responsiveness.
Great bike…but
Bought this bike two years ago and have almost 2000 ridden. The bike is very comfortable and fast. The semi-fat 29er tires soak up bumps and grip well. Front shock is not the best but okay. The Bosch motor is quiet and responsive. This is my third pedal-assist bike, so somewhat experienced. My reason for not a full five stars is twofold. First, the zip-tie that holds the internal power plug in the bike bottom bracket was not installed at factory. I talked to a REI bicycle technician and he walked me through the fix. Easy to do, but really? The second negative is that nothing in the bike instrumentation reveals fraction of a mile. Every mileage data is single digit whole integer speed (mph or kph). Seems odd that there is no fractional mileage is shown. Otherwise, I plan on putting 5k miles on this baby before I consider another bike.
Fit and finish
This Cannondale comes equipped with a fantastic Bosch motor and it deserves a 5 star rating. I love the speed I can achieve and the smoothness of the assist. The reason for only 3 stars is the fit and finish of the bike itself. Not sure if the blame lies at the feet of Cannondale, or the REI bike shop from which I purchased the bike, or both. After traveling 10 hours (round trip) to pick up the bikes (we purchased 2), we were extremely disappointed to find they were not at all ready to ride. 1. The chain needed a link removed, 2. The headset was not at all tight, 3. The tires and tubes that came on the bikes were so cheap that the first ride produced unfixable flats on both bikes from goathead stickers. 4. The fenders were not aligned on the frame which didn’t allow the tires to rotate. We had to “tweak” them to fix this issue. Thank goodness my husband knew how to work on bikes so we could get them on the road. Now that they are set up, we are happy with our purchase, but it took 2 days of working on them and a new set of tires.
Great bike
I wanted to buy the best 29 inch tire bike with shocks speed of Bosch motor and quality frame. I was thinking specialized turbo Como since I rented one for a week and it was an excellent ride. But inventory was tight and I wanted a bike in two weeks or less everybody’s telling me three or four months if I had to order and REI had one in stock.
