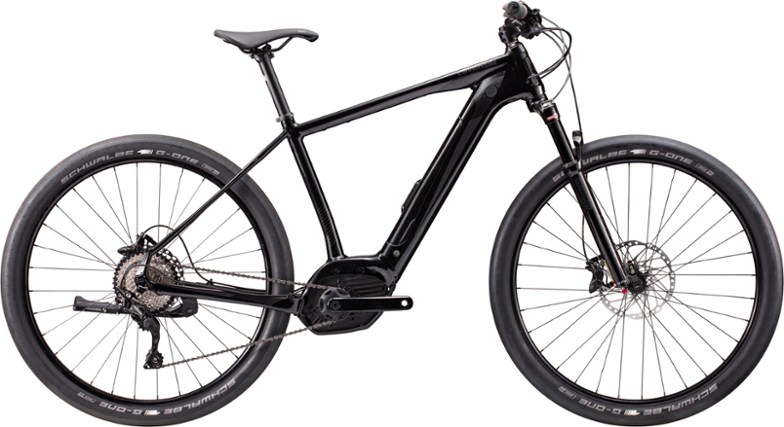

Cannondale Tesoro NEO X Speed Electric Bike
Whether you're commuting to the office or exploring gravel roads on the weekend, the Cannondale Tesoro NEO X Speed e-bike has the wide tires, front suspension, power and range to get you there, fast.
Key Details
- Control Position, a mountain-biking-inspired riding position, gives you exceptional control on mixed terrain and great heads-up visibility in traffic
- Bosch Performance Line Speed drive unit and PowerTube 500 Wh battery integrate cleanly into the frame and boast speeds up to 28 mph and ample range to seek serious adventure

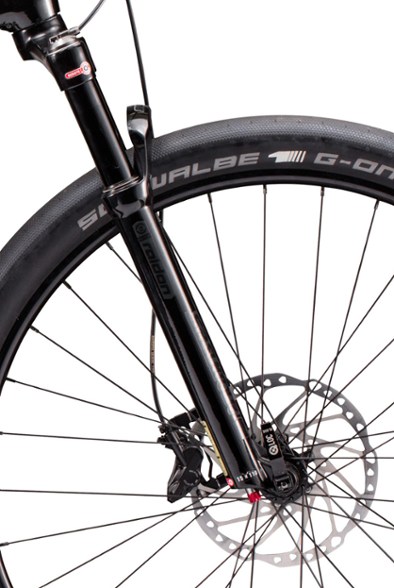

- Suntour Raidon 34 LOR suspension fork offers 100mm of air-damped travel, with crown-mounted lockout and rebound adjustments and 110x15mm Boost spacing
- Schwalbe G-One Speed 29x2.35 in. tires offer great speed and comfort on-road, with the ability to confidently explore well beyond the pavement's end
- Custom battery cover blends seamlessly with the down tube and seals out the elements, while a moto-style skid plate protects the drive unit
- SmartForm C2 alloy construction delivers a frame that is light and durable with a lively feel
- Prewired for front and rear lights; fully rack- and fender-ready (lights, racks and fenders not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Road Cycling Recreational Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Line Speed 250W |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 63 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 500 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4.5 hours |
| Pedal Assist Range | 50 miles |
| Frame | Tesoro NEO X, SmartForm C2 alloy, integrated PowerTube battery, SAVE, tapered head tube, 148x12mm thru-axle |
| Step-Through | No |
| Bike Suspension | Front Suspension |
| Fork | Suntour Raidon 34 LOR boost, 29 in., 100mm air, 110X15mm, tapered |
| Fork Travel | 100 millimeters |
| Crankset | FSA ebike, 170mm, Gen2, 20T |
| Shifters | Shimano Deore, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore GS |
| Rear Cogs | Shimano HG500, 11-42, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Deore hydraulic disc, 203/180mm RT64 rotors |
| Brake Levers | Shimano Deore hydraulic disc |
| Rims | WTB STX i29 TCS, tubeless ready |
| Front Hub | Formula CL-811 15x110 |
| Rear Hub | Shimano Deore 12x148 |
| Wheel Size | 29 inches |
| Tires | Schwalbe G-One Speed, 29x2.35 in., tubeless ready |
| Tire Width | 2.35 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
| Stem | Cannondale C4, 3D forged 6061 alloy, 1-1/8 in., 31.8mm, 60mm |
| Seat Post | Cannondale C4, 6061 alloy, 31.6 x 400mm |
| Saddle | Cannondale Ergo XC |
| Pedals | Not included |
| Headset | Integrated Sealed Bearing, tapered |
| Chain | Shimano HG54, 10-speed |
| Weight | 49 lbs. 6.4 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 39.3 | 43 | 45.1 | 47.4 |
| Stack | 62.9 | 62.9 | 63.7 | 64.4 |
| Effective Top Tube | 58 | 61.7 | 64 | 66.5 |
| Seat Tube Center-Top | 38 | 43.5 | 48.5 | 53.5 |
| Standover Height | 74.6 | 77.5 | 81.3 | 84.7 |
| Head Tube Length | 12.8 | 12.8 | 13.6 | 14.4 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73.5 | 73.5 | 73.5 | 73.5 |
| Bottom Bracket Height | 31.5 | 31.5 | 31.5 | 31.5 |
| Wheelbase | 115.5 | 119.2 | 121.6 | 124.2 |
| Chainstay | 47.9 | 47.9 | 47.9 | 47.9 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
