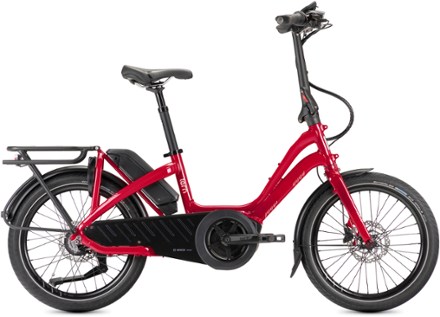

Tern  NBD P8i Electric Bike

$3,199.00
Color: Red/Silver
Size: One Size
Quantity
Heads up! Bikes usually take 1-2 additional days to assemble but can take longer during busy periods. We'll email you when yours is ready.

Members get an estimated $319.90 (10%) back on this item as a part of your annual .

Members get an estimated $319.90 (10%) back on this item.
To buy,  sign in as an REI Co-op Member or join now.

Enjoy smiles for miles with the Tern NBD P8i electric bike. Its Bosch PowerPack 400 battery gets you through long trips and commutes while the Bosch Active Line Plus motor cruises up hills.

10% Reward $320

$30Bonus Card

This item pays for membership!

$320

10% Reward*

For this item

+

$30

Bonus Card*

Valid for 30 days

=

$350

Value

Start earning when you buy a $30 lifetime membership.

Keep shopping

Location Image of color Red/SilverLocation Image of color Red/SilverLocation Image of color Red/Silver
Location Image of color Red/Silver

Features

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • Bosch PowerPack 400 powers long trips, commutes and journeys
  • Shimano Nexus 8-speed internal hub
  • Shimano hydraulic disc brakes provide reliable stopping power—even when carrying cargo and riding fast
  • Ultralow 15.4 in. (39 cm) stand-over height means gentle, low steps are all that are required to get on and go
  • Ultralow center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
  • Fits riders 4 ft. 10 in.–6 ft. 3 in. (147–190 cm)
  • Gaia Rack is certified to carry up to 60 lbs. (27 kg) and works with many child seats
  • Frame and fork have undergone the EFBE Tri-Test to the 309 lbs. (140 kg) maximum gross vehicle weight
  • Specs and images are subject to change

Imported.

This e-bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • An additional year of free adjustments on e-bikes
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

UL2849 certified
View all Tern Electric Cargo Bikes

Technical Specs

Item #223692
Best Use

Urban Cycling

E-Bike Classification

Class 1: pedal assist up to 20 mph

Motor

Bosch Active Line Plus, 270% assist, 50 Nm torque

Motor Type

Mid-Drive

Motor Torque (Nm)

50 Newton meters

Battery Type

Lithium Ion

Battery Capacity (Wh)

400 watt hours

Battery Removable

Yes

Charge Time (hrs)

5 hours

Pedal Assist Range

34-67 miles

Frame

6061-AL, Patented design, EFBE Tri-Test approved: 309 lbs.

Step-Through

Yes

Bike Suspension

No Suspension

Fork

6061-AL, hydroformed, EFBE approved: 309 lbs.

Fork Travel

Not Applicable

Crankset

6061-AL crankarm

Bottom Bracket

Motor intergrated

Shifters

Shimano 8-speed

Rear Cogs

16T

Number of Gears

8 gear(s)

Internally Geared

Yes

Brake Type

Hydraulic Disc Brake

Brakes

Shimano hydraulic brake

Brake Levers

Shimano hydraulic brake

Rims

Kinetix Comp for disc

Front Hub

Shimano disc

Rear Hub

Shimano Nexus 8

Wheel Size

20 inches

Tires

55-406, puncture protection, Reflex

Tire Width

55 millimeters

Handlebar Shape

Moustache Bar

Handlebar

6061-AL, Tern Andros adapted

Stem

Tern Andros, adjustable, forged construction, patented technology

Seat Post

Tern RideEasy Suspension, 34.9 mm

Saddle

Tern Upright by Velo

Pedals

MKS Platform, Tern custom design

Headset

Tern Flux by FSA, cartridge bearings, Physis integrated

Chain

KMC for eBike, EPT corrosion-resistant coating

Weight

52 lbs. 3.2 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

One Size
Height Range4'10'' - 6'3''

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
