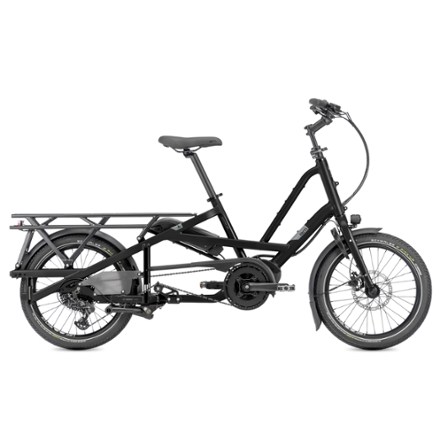

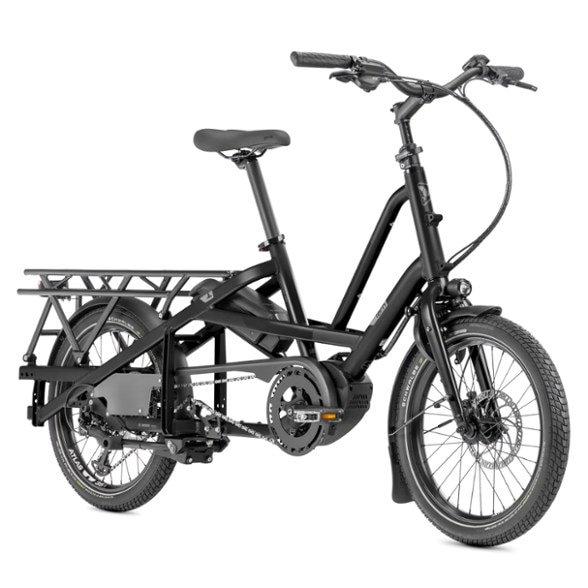

Tern Quick Haul Long D9 Electric Bike
A compact cargo e-bike designed to safely carry 2 kids—or plenty of cargo—the Tern Quick Haul Long D9 Electric Bike features a Bosch Cargo Line motor for powerful assist. Life is better by bike!
Key Details
- Designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
- Built tough for hauling, rated to a maximum gross vehicle weight of 419 lbs. (190 kg) with a rear rack load capacity of 198 lbs. (90 kg)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
- Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
- Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
- Robust, patented Atlas kickstand keeps the bike steady for safe loading and unloading of cargo and passengers
- Customize your setup with a wide range of kid- and cargo-carrying accessories from Tern (not included)
- Adjusts without tools to fit riders 5'1" to 6'3" (155–190 cm) tall, weighing up to 265 lbs. (120 kg)
- Third-party tested for safety; meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch Cargo Line, 400% assist |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 500 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 2.5-4 hours |
| Pedal Assist Range | 26-53 miles |
| Step-Through | Yes |
| Bike Suspension | No Suspension |
| Fork | Cargo, aluminum alloy, patented design, 6061-AL, DIN 79010 Certified, 419 lbs. |
| Crankset | Tern Custom forged 6061 aluminum crankarm, anti-drop chainring |
| Bottom Bracket | Motor integrated |
| Shifters | Tektro, 1 x 9-speed, trigger |
| Rear Derailleur | Tektro custom for Tern, 1 x 9-speed |
| Rear Cogs | Tektro 11-42T, 9-speed |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro Hydraulic Disc |
| Brake Levers | Tektro Hydraulic Disc |
| Rims | Tern Atlas H, Cargo |
| Front Hub | Disc, aluminum |
| Rear Hub | 9-speed, disc, aluminum, Boost |
| Wheel Size | 20 inches |
| Tires | Schwalbe Pick Up (ISO 60-406), Super Defense puncture protection, Reflex |
| Tire Width | 2.35 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Low Riser Ergo, 31.8 mm, 6061 aluminum |
| Stem | Speedlifter, adjustable, 3D-forged stem, 31.8 mm |
| Seat Post | 34.9 mm, 6061 aluminum, micro-adjust clamp |
| Saddle | Velo Comfort |
| Pedals | Urban with nonslip surface |
| Headset | TH, cartridge bearings |
| Chain | KMC for Ebike, 9-speed |
| Weight | 64 lbs. 9.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | Contains recycled materials |
| One Size | |
|---|---|
| Height Range | 5'1" - 6'1" |
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Write a Review
Adding a review will require a valid email for verification
Tentative Rating
For now, I think the Quick Haul Long D9 deserves four stars. However, I don't believe the true value of a bike can be judged after a few weeks or even a few months of ownership. The real test is how well it holds up after years of regular use. If this bike lasts me 50,000 miles with only routine maintenance, I will consider it one of the best bikes you can buy for the money. At that point, I would rate it higher than five stars if I could. On the other hand, if it only lasts around 10,000 miles before requiring major repairs or expensive component replacements despite being properly maintained, then I would consider it a poor value for the price. As of now, my biggest criticism of the Quick Haul Long D9 is that it is a bike built for the European market and sold in the United States without being redesigned for a completely different competitive market. It comes with a 250 W Bosch Cargo Line motor and a 500 Wh battery. In my opinion, those specifications put it at a disadvantage against many competing cargo bikes in the U.S. that offer more powerful motors and larger batteries. To be clear, I do not think every e-bike needs a 750 W motor. More power is not always better. I think the sweet spot for a bike like this is a 350–500 W motor paired with a larger battery. In terms of build quality, I have very few complaints. The bike rides smoothly, shifts cleanly, handles well, and feels very refined overall. The accessories also have a premium feel and appear to be built to last. That said, I do not give Tern extra credit simply for building a high-quality bike because that quality is already reflected in the price. This is a nearly $4,000 bike. The upgraded front rack costs around $200, the larger panniers are about $300, and a second 500 Wh battery is close to $1,000. You are paying for that quality. I expect a bike at this price point to ride smoothly, feel refined, and use premium components. Those are not bonus features from Tern, they are what you should expect when spending this much money. One thing I found disappointing is how Tern chose to use the available frame space. Instead of providing a mounting location for a second battery, the empty space is dedicated to an optional Tern lockbox that you have to purchase separately. Unlike the GSD, the Quick Haul Long does not support a dual-battery setup. Given the price of the bike, I would have preferred to see that space used for a second battery. Extending the range would provide a much greater benefit than creating another opportunity to sell an additional accessory.
