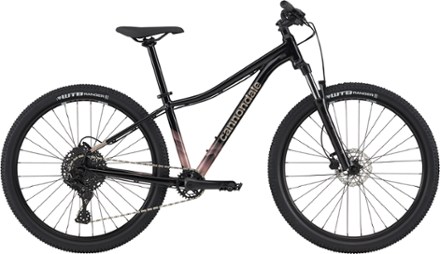

Cannondale Trail 5 Women's Mountain Bike

$730.93Compared to $960.00*
Reduced Price. You save 23%
*Intermediate markdowns may have been taken.
HURRY! This item is discontinued. Shop now for best selection.
Color: Black Pearl
please select a Size
Quantity
Choose a shipping method

Members get an estimated 10% back on this item as a part of your annual .

To buy,  sign in as an REI Co-op Member or join now.
Join the co-op today to get access to a lifetime of benefits.

Built to raise your game and ignite a passion for the trail, the Cannondale Trail 5 women's bike is designed for the mountains with a light and durable frame and front suspension.

  • Features

    • Light and durable SmartForm C3 alloy frame
    • SR Suntour XCM suspension fork provides 100 mm travel and remote lockout
    • 10-speed shifting Shimano hydraulic disc brakes; post-mount disc
    • StraightShot internal cable routing
    • Compatible with dropper posts (not included)
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Cannondale Trail Product LineView all Cannondale Hardtail Mountain Bikes
  • Technical Specs

    Best Use

    Mountain Biking

    Mountain Bike Style

    Trail

    Frame

    SmartForm C3 alloy with SAVE technology

    Bike Suspension

    Front Suspension

    Fork

    XS: SR Suntour XCM coil, 42 mm offset

    S: SR Suntour XCM coil, 42 mm offset

    Fork Travel

    100 millimeters

    Crankset

    Prowheel, Charm 30T

    Bottom Bracket

    Sealed bearing cartridge BSA 73 mm, square taper

    Shifters

    10-speed

    Rear Derailleur

    microSHIFT Advent X

    Rear Cogs

    11-48T, 10-speed

    Number of Gears

    10 gear(s)

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Tektro M275 hydraulic disc, 160/160 mm rotors

    Brake Levers

    Tektro hydraulic disc

    Rims

    WTB SX19, 32h

    Front Hub

    Shimano HB-TX505, quick-release

    Rear Hub

    Shimano FH-TX505, quick-release

    Wheel Size

    XS: 27.5 inches

    S: 27.5 inches

    Tires

    XS: WTB Ranger Comp, 27.5 x 2.25 in., DNA Compound

    S: WTB Ranger Comp 27.5 x 2.25 in., DNA Compound

    Tire Width

    2.25 inches

    Handlebar Shape

    Riser Bar

    Handlebar

    Cannondale Riser: 6061 alloy, 25 mm rise, 8 deg. sweep, 6 deg. rise, 720 mm wide

    Stem

    6061 alloy, 31.8 mm, 7 deg.

    Seat Post

    XS: Cannondale 3 6061 alloy, 31.6 x 350 mm

    S: Cannondale 3 6061 alloy, 31.6 x 350 mm

    Saddle

    Cannondale Stage 2 Women's

    Pedals

    Cannondale Platform

    Headset

    Semi-Integrated, 1-1/8 in.

    Chain

    KMC X10, 10-speed

    Weight

    31 lbs. 1.6 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Women's

  • Size Chart

    SM
    Reach35.738.3
    Stack64.866.2
    Effective Top Tube55.558.5
    Seat Tube Center-Top38.044.0
    Standover Height43.543.5
    Head Tube Length16.518.0
    Head Tube Angle (degrees)67.067.0
    Seat Tube Angle (degrees)73.073.0
    Bottom Bracket Height29.929.9
    Wheelbase114.3117.4
    Chainstay49.049.0
    Fork Offset4.64.6

    Sizing Notes

    Measurements are stated in centimeters unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
