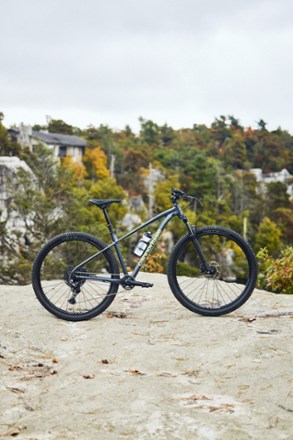

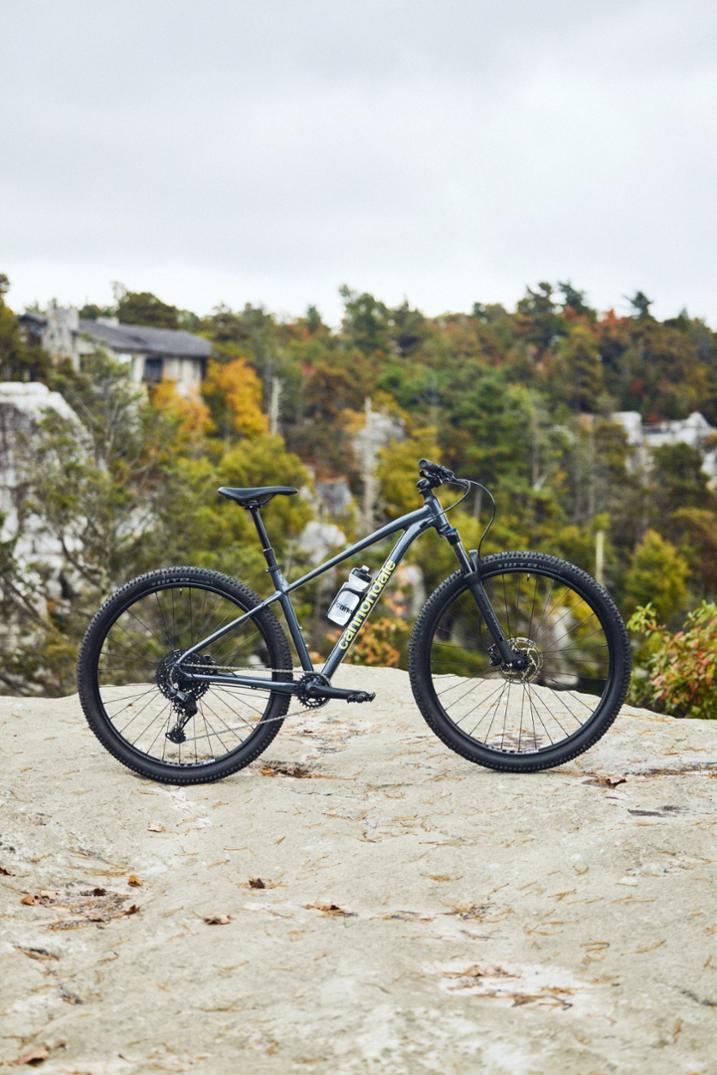

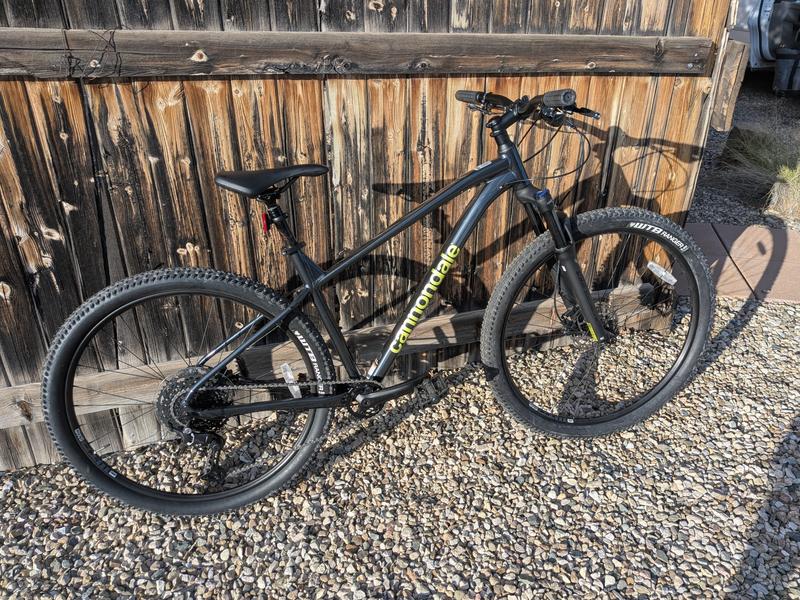

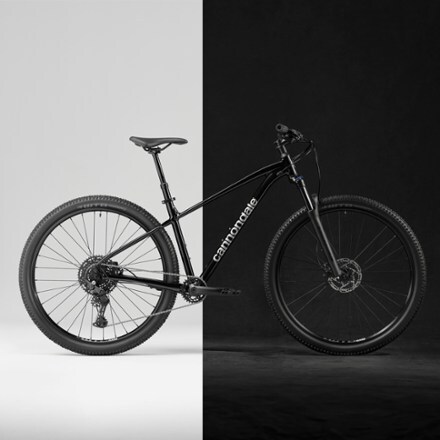

Cannondale Trail 1 Mountain Bike
$999.00
Your first-class upgrade to next-level mountain biking, the Cannondale Trail 1 delivers an easy-to-handle and sporty ride that's zippy and fun. Plus, it's just as happy on the street as it is on dirt.
Key Details
Wheel Size
XS: 27.5 inches
S: 27.5 inches
M: 29 inches
L: 29 inches
Fork Travel
XS: 80 millimeters
S: 80 millimeters
M: 100 millimeters
L: 100 millimeters
Number of Gears
10 gear(s)
- C3 alloy frame delivers an easy-to-handle and sporty ride that feels zippy and fun; it's lightweight and built to last
- 1x drivetrain—no front derailleur and clunky front shifter—for fewer moving parts to ensure smooth, reliable shifting for effortless climbs and descents
- Comfortable, confidence-boosting geometry and responsive handling mean more smiles per mile, whether you're cruising or charging
- 27.5 in. wheels on XS/S frames and 29 in. wheels on M/L/XL frames provide the perfect fit, catering to your proportions for the proper handling no matter your size
- StraightShot internal cable routing keeps your bike looking fresh and your cables out of harm's way, making maintenance easy and hassle-free
- Dropper post equipped with instant seat adjustments to raise and lower
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Trail Product LineView all Cannondale Hardtail Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|

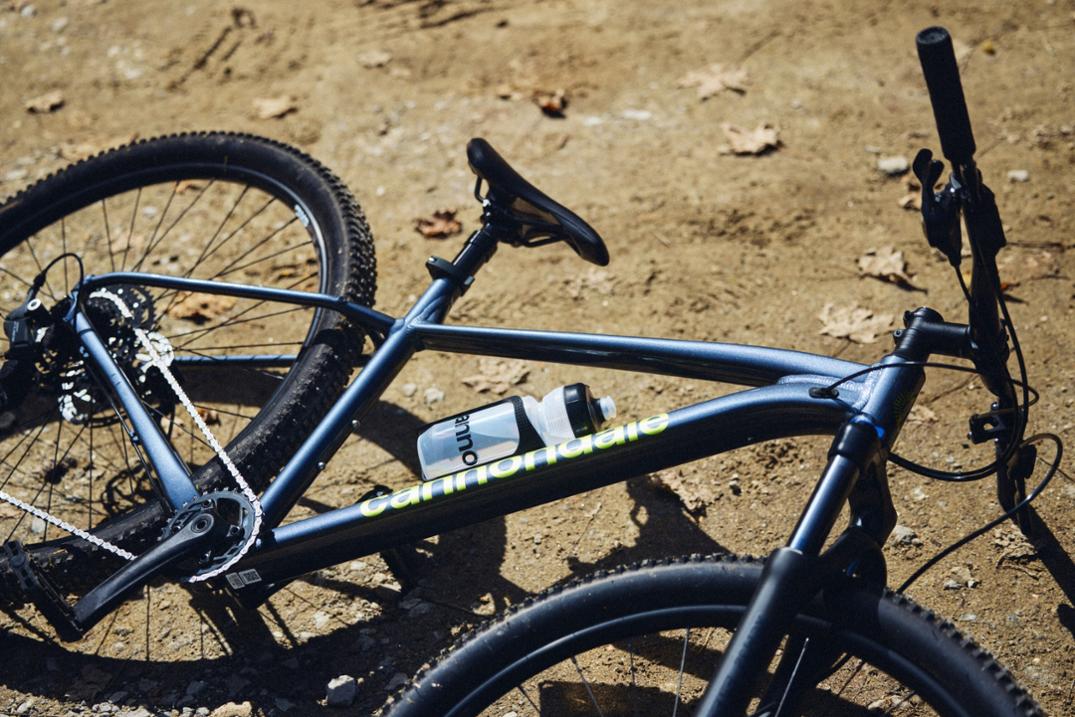

| Frame | SmartForm C3 alloy: 142 x 12 mm, SAVE, 1-1/8 in. head tube, post-mount disc, StraightShot internal cable routing, dropper-post compatible, KickFlip hidden 18 mm 2-bolt kickstand mount, BSA-73 |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | XS: SR Suntour XCM: 100 mm, coil, 42 mm offset S: SR Suntour XCM: 100 mm, coil, 42 mm offset M: SR Suntour XCM: 100 mm, coil, 46 mm offset L: SR Suntour XCM: 100 mm, coil, 46 mm offset |
| Fork Travel | XS: 80 millimeters S: 80 millimeters M: 100 millimeters L: 100 millimeters |
| Crankset | Prowheel, Charm 30T |
| Bottom Bracket | ProWheel, square taper |
| Shifters | Shimano CUES U6000, 10-speed |
| Rear Derailleur | Shimano CUES U6000 |
| Rear Cogs | Shimano CUES, 11-48T, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro M275 hydraulic disc, 160/160 mm rotors |
| Brake Levers | Tektro hydraulic disc |
| Rims | WTB SX19, 32 h |
| Front Hub | Shimano TC500, 15 x 110 mm |
| Rear Hub | Shimano TC500, 12 x 142 mm |
| Wheel Size | XS: 27.5 inches S: 27.5 inches M: 29 inches L: 29 inches |
| Tires | XS: WTB Ranger 27.5 x 2.25 in. S: WTB Ranger 27.5 x 2.25 in. M: WTB Ranger 29 x 2.25 in. L: WTB Ranger 29 x 2.25 in. |
| Tire Width | 2.25 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale Riser, 6061 alloy: 25 mm rise, 8-deg. sweep, 6-deg. rise, 720 mm |
| Stem | Cannondale 4, 6061 alloy: 31.8 mm, 6 deg. |

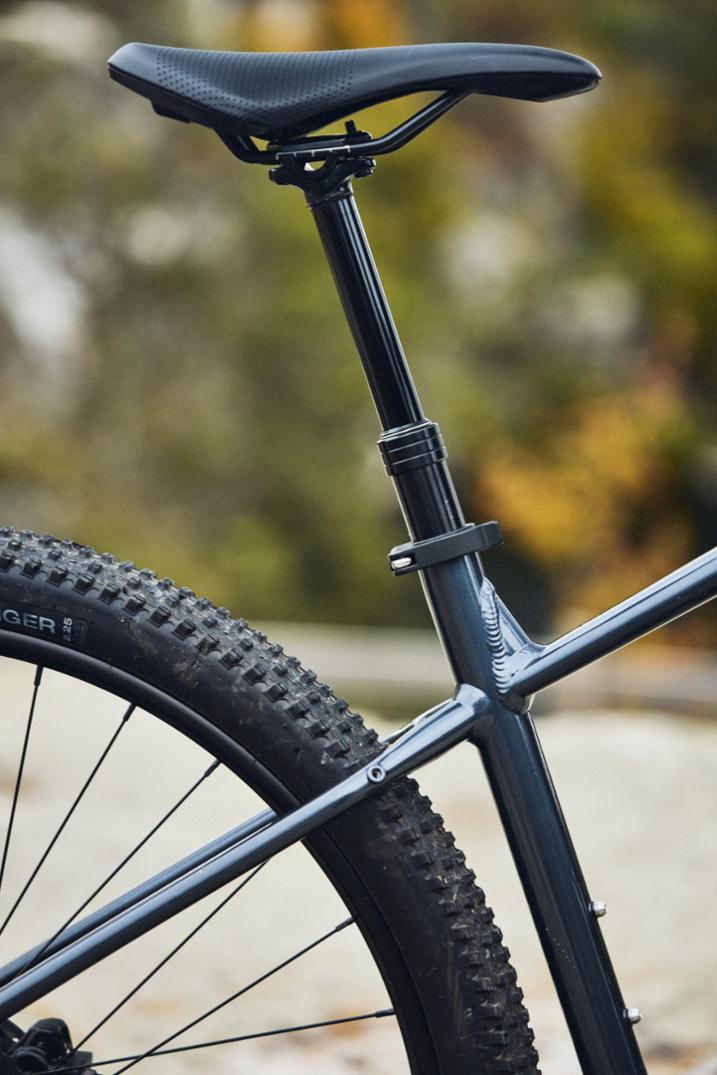

| Seat Post | JD Dropper with internal routing: 31.6 mm, 130 mm |
| Dropper Post | Yes |
| Saddle | Cannondale Trail |
| Pedals | Cannondale Platform |
| Headset | Semi-integrated, 1-1/8 in. |
| Chain | KMC X-Glide 9-10-11 speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (248903)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 4'6''-5'2'' | 5'1''-5'4'' | 5'4''-5'8'' | 5'7''-6'0'' | 6'0''-6'3'' |
| Reach | 36.5 | 40.2 | 42.5 | 44.7 | 46.9 |
| Stack | 57.3 | 59.1 | 62.3 | 63.2 | 64.1 |
| Effective Top Tube | 53.5 | 57.7 | 60.9 | 63.4 | 65.9 |
| Seat Tube Center-Top | 33 | 38.1 | 43.2 | 47 | 53.3 |
| Standover Height | 67.3 | 71 | 76.8 | 79.5 | 83.9 |
| Head Tube Length | 9.5 | 9.5 | 10.5 | 11.5 | 12.5 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Bottom Bracket Height | 29.3 | 29.3 | 30.7 | 30.7 | 30.7 |
| Wheelbase | 105.4 | 109.8 | 114 | 116.6 | 119.2 |
| Chainstay | 44 | 44 | 44.5 | 44.5 | 44.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
