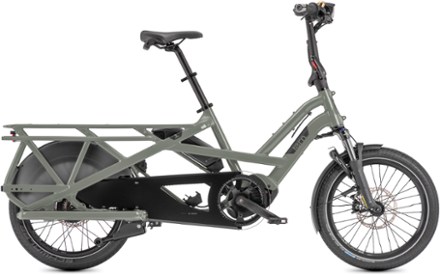

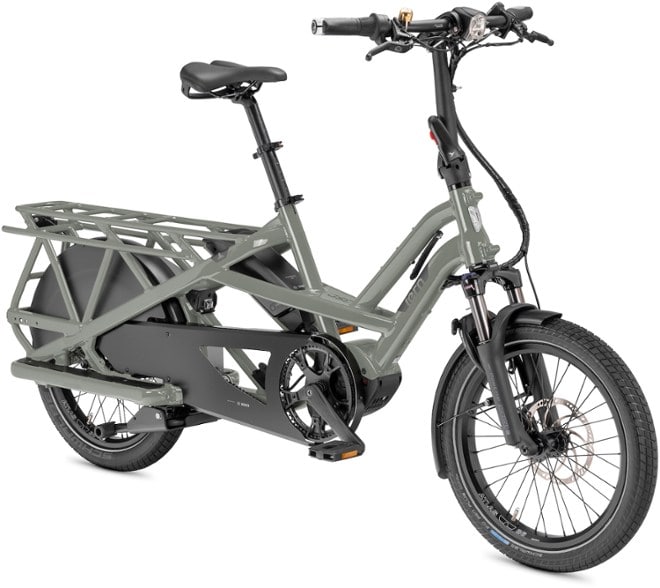

Looking for a bike that could replace your car? The Tern GSD S00 electric bike carries 2 kids plus groceries—or a whole lot of cargo—and with dual-battery technology, it's ready to ride all day.
Shop similar productsKey Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Bosch Cargo Line Motor
Battery Capacity (Wh)
500 watt hours
Weight
77 lbs. 1.9 oz.
- The same length as a regular bike, the GSD S00 is incredibly easy to own and use, thanks to space-saving features like FlatFold and Vertical Parking
- With FlatFold, the handlebar and stem fold down next to the frame, and the seatpost telescopes all the way down, enabling the bike to fit in larger vehicles and tight spaces
- Regular bikes take up a lot of floor space, but the GSD S00 parks vertically, so it takes up about as much space as a potted plant—perfect for city apartments and elevators
- Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support, making it easier to tackle big hills and ride with heavy loads
- Heavy-duty, continuously variable Enviolo SP hub and Gates® CDX belt drive offer a silent, smooth ride that's virtually maintenance-free
- Adjustable cockpit comfortably fits riders 4'11" to 6'5" (150 to 195 cm)
- Super tough Atlas Lockstand™ automatically locks when engaged—just press a button on the handlebar to unlock
- Heavy-duty frame-integrated rear rack and integrated lower decks offer plenty of kid and cargo capacity—this bike handles up to a 440 lb. (200 kg) Maximum Gross Vehicle Weight
- Magura® MT5 eSTOP 4-piston hydraulic disc brakes deliver powerful and responsive braking in all conditions
- Always-on RearStop™ brake light helps you signal stops
- Integrated Abus® wheel lock is keyed-alike with the battery
- Upgraded Atlas wheels feature custom CNC-machined hubs for extra strength and durability
- Integrated Tern Valo direct head light provides 150 lumens (41 lux) to help you see and be seen
- Compatible with a wide range of cargo- and passenger-carrying accessories (not included)
- Fits up to 2 Thule® Yepp Maxi seats (not included) with no adapters needed
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Tern GSD Product LineView all Tern Electric Cargo Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch Cargo Line Motor |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 500 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 2.5-4 hours |
| Pedal Assist Range | 31-63 miles |
| Frame | 6061 aluminum |
| Step-Through | Yes |
| Bike Suspension | Front Suspension |
| Fork | Chromoly steerer; 32 mm stanchions |
| Fork Travel | 70 millimeters |
| Crankset | Tern GSD custom, Gates CDX CNC-machined beltring |
| Bottom Bracket | Motor integrated |
| Shifters | Enviolo twist |
| Rear Cogs | Gates CDX, precision CNC-machined cog |
| Internally Geared | Yes |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Magura MT5 |
| Brake Levers | MT5 E-Stop, hydraulic, with brake sensor |
| Rims | Tern Atlas, ultrawide 36 mm, dual reinforced joint |
| Front Hub | Tern Atlas, Boost thru axle, cargo-optimized design, sealed cartridge bearing |
| Rear Hub | Enviolo Sport 380 continuously variable; Boost |
| Wheel Size | 20 inches |
| Tires | Front: Schwalbe Big Ben Plus 20 x 2.15 in. (55-406); rear: Schwalbe Super Moto-X 20 x 2.4 in. (62-406); both with Green Guard puncture protection and Reflex |
| Tire Width | 2.4 inches 2.15 inches |
| Handlebar Shape | Moustache Bar |
| Handlebar | 6061 aluminum |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Seat Post | Tern Telescope, 34.9/30.9 mm, 2014 aluminum, telescopic |
| Saddle | Tern GSD by Velo with rear handle |
| Pedals | Urban with nonslip surface, sealed bearings |
| Headset | Tern Flux Pro Taper, 1.5 in., angular contact bearings, Physis Integrated |
| Chain | Gates Cabon Drive CDX belt |
| Belt Drive | Yes |
| Weight | 77 lbs. 1.9 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | Contains recycled materials |
Tern Bikes (187356, 169179, 169178, 187355)
| One Size | |
|---|---|
| Height Range | 4'11''-6'5'' |
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
