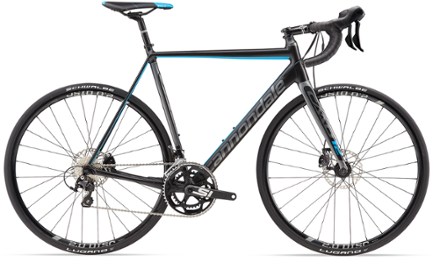

Cannondale CAAD12 Disc 105 5 Bike - 2017
This product is not available.
Think you know aluminum? Think again. Incomparably light, explosively stiff and impossibly smooth, the CAAD12 Disc 105 redefines performance with the finest alloy racing bike ever made by Cannondale.
Shop similar productsKey Details
Wheel Size
700c
Number of Gears
22 gear(s)
- This bike is for aspiring racers, fast club riders and anyone else looking for a high-performance alternative to carbon
- CAAD12 is the first bike designed with the new Flow Modeling process, resulting in elegant shapes that yield lower weights and improved compliancy without losing stiffness
- Butted-and-shaped seatstays and chainstays help reduce side-to-side flex for energy efficiency while also helping make bumps and road vibrations less jarring
- Lightweight all-carbon fork supplies great road performance, slicing through corners and damping road vibrations; tapered steerer enhances stiffness and responsiveness
- Shimano Ultegra 105 derailleurs and shifters offer precise, dependable shifts throughout the 22 gear combinations
- Cannondale HollowGram Si Compact crankset is paired with a 11-28 tooth cassette for a capable gear range; stiff BB30 bottom bracket ensures efficient power transfer
- Shimano BR785 hydraulic disc brakes offer reliable stopping power
- Maddux RD 2.0 wheelset is decked out with fast Schwalbe Lugano tires for excellent handling and speed
- Pedals sold separately
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Cannondale- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | 6069 alloy |
| Fork | BallisTec carbon |
| Bike Suspension | No Suspension |
| Crankset | Cannondale Si, 52/36 |
| Bottom Bracket | FSA BB30 |
| Shifters | Shimano R505 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Rear Cogs | Shimano 105, 11-28, 11-speed |
| Number of Gears | 22 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano BR785/505 hydraulic disc |
| Brake Levers | Shimano R505 |
| Rims | Maddux RD 2.0 |
| Front Hub | Formula Disc CX-20 |
| Rear Hub | CX-22 |
| Wheel Size | 700c |
| Tires | Schwalbe Lugano, 700 x 25, folding |
| Tire Width | 25 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Cannondale C3, 6061 alloy |
| Stem | Cannondale C3 |
| Seat Post | Cannondale C2, UD carbon |
| Saddle | Selle Royal Seta S1 |
| Pedals | Sold separately |
| Headset | CAAD12 |
| Chain | Shimano HG600-11 |
| Weight | 19 lbs. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (892481)
| 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | |
|---|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” -5’9 | 5’9” - 6’0” | 6’0" - 6’3” | 6'3" - 6'6" |
| Reach | 38.1 | 38.7 | 39.3 | 39.9 | 40.5 |
| Stack | 53.6 | 55.1 | 56.7 | 58.4 | 60.3 |
| Effective Top Tube | 56 | 57 | 58.5 | 60 | 61.5 |
| Seat Tube Center-Top | 53.4 | 54.7 | 56.1 | 57.5 | 59.1 |
| Standover Height | 78.2 | 79.6 | 81.2 | 83.1 | 85.1 |
| Head Tube Length | 12.5 | 13.9 | 15.5 | 17.5 | 19.5 |
| Head Tube Angle (degrees) | 72.6 | 72.9 | 73.1 | 73.2 | 73.3 |
| Seat Tube Angle (degrees) | 74.1 | 73.8 | 73.5 | 73.2 | 72.9 |
| Bottom Bracket Height | 7.2 | 7.2 | 7.2 | 6.9 | 6.9 |
| Wheelbase | 97.2 | 98 | 98.9 | 100 | 101.3 |
| Chainstay | 40.5 | 40.5 | 40.5 | 40.5 | 40.7 |
| Fork Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Sizing Notes
Measurements are stated in centimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
