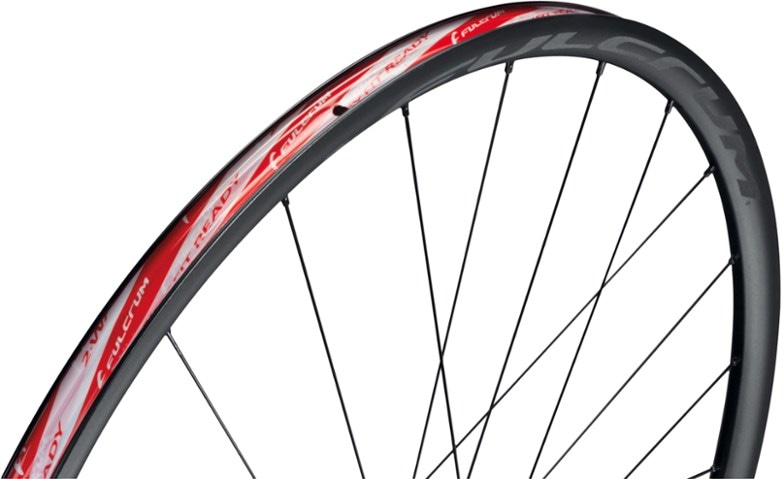

Fulcrum  Racing Red 5 DB Wheel

$237.00to $301.00
Color: Black
please select a Size
Select size for delivery dates
Shipping restrictions may apply.

A 24 mm U-shape profile gives the Fulcrum Racing Red 5 DB wheel decreased stiffness and lower aerodynamic resistance, making it an energy-saving choice for long and technical rides.


  • Aluminum rim with a 20 mm inner channel width to easily fit 25–28 mm tires
  • 2-Way Fit rims can be used with either tubed or tubeless clincher tires, ensuring the widest possible compatibility
  • Anti-Rotation System creates solid and unmovable spokes and hub housing so the spokes never lose their tension, keeping the wheel reactive and centered
  • Anti-Rotation System keeps the spokes in a wind-tunnel-tested position to ensure the best aerodynamic penetration possible
  • Axial Fixing System™ (AFS) fixes the disc brake to the hub, offering greater structural rigidity and therefore more precise and powerful braking
  • AFS is compatible with any Center Lock rotor; a dedicated external-threading lockring is included
  • Stainless-steel, rounded straight-pull spokes with aluminum nipples
  • Aluminum hubs and flanges with sealed cartridge bearings for easy serviceability
  • Tubeless tape installed and valve included
  • Features striking laser-etched, weather-resistant graphics


View all Fulcrum Road Bike Wheels

Technical Specs

Item #222752
Best Use

Road Cycling

Wheel Type

Front 700C (12X100): Front Wheel

Rear 700C (12X142) Shimano: Rear Wheel

Rear 700C (12X142) XDR: Rear Wheel

Freehub Standard

Front 700C (12X100): Not Applicable

Rear 700C (12X142) Shimano: Shimano Hyperglide (HG)

Rear 700C (12X142) XDR: SRAM XDR

Tire Type

Tubeless Ready

Hub Brake Design

Center Lock Disc

Front Axle

Front 700C (12X100): 12 x 100 mm Thru-Axle

Rear 700C (12X142) Shimano: Not Applicable

Rear 700C (12X142) XDR: Not Applicable

Front Spoke Count


Rear Axle

Front 700C (12X100): Not Applicable

Rear 700C (12X142) Shimano: 12 x 142 mm Thru-Axle

Rear 700C (12X142) XDR: 12 x 142 mm Thru-Axle

Rear Spoke Count

Front 700C (12X100): Not Applicable

Rear 700C (12X142) Shimano: 24

Rear 700C (12X142) XDR: 24

Wheel Size


Internal Rim Width

20 millimeters

Tubeless Compatible


Rim Material



Front 700C (12X100): 810 grams

Rear 700C (12X142) Shimano: 921 grams

Rear 700C (12X142) XDR: 921 grams
