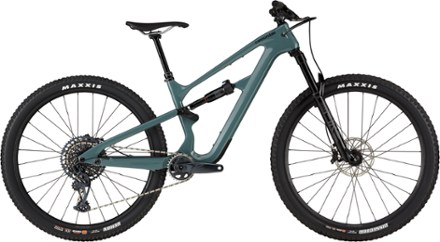

Cannondale Habit Carbon 1 Mountain Bike
$3,399.93Compared to $5,550.00* Save 38%
A trail mountain bike that's primed for grinding climbs, mashing flats and ripping descents, the Cannondale Habit Carbon 1 bike is one fun ride that thrives when it's out in the elements.
Key Details
Wheel Size
XS: 27.5 inches
S: 29 inches
M: 29 inches
L: 29 inches
Fork Travel
140 millimeters
Number of Gears
12 gear(s)
- Full carbon frame with SRAM GX Eagle 12-speed drivetrain
- RockShox Pike Select+ 140 mm fork and RockShox Deluxe Select+ shock with 130 mm of travel soaks up the bumps
- Comes with SRAM G2 R hydraulic disc brakes and a DownLow dropper post
- With Proportional Response Design, everything from the suspension layout to the geometry is completely customized by size
- Full size-specific frame geometry, right down to the chainstay lengths, keeps you centered between the wheels for incredible traction and handling
- With a head-tube angle of 65.5° and the seat tube set at 77.5°, this bike puts you in the optimal position for powering uphill, shredding down and stopping to smell the roses
- Keeps things simple and easy with a threaded bottom bracket, universal derailleur hanger, standard shock mount, internal cable routing and an updated 55 mm chainline standard
- Equipped with a universal derailleur hanger so you wont be left hanging if your hanger breaks
- Down tube protection offers peace of mind, knowing a rugged rubber guard is protecting your bike
- Suspension built for you—Proportional Response Suspension alters the design by size for truly next-level performance
- Simple, functional StrapRack cradle (included) bolts to frame and carries tools, spares, snacks—whatever you can fit in there
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Habit Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Habit full carbon, 130 mm travel, 55 mm chainline, ISCG05, BSA threaded BB, post-mount brake, tapered head tube, DirectLine internal cable routing, UDH hanger |
| Mountain Bike Style | Trail |
| Bike Suspension | Full Suspension |
| Fork | RockShox Pike Select+, 140 mm, DebonAir, 15 x 110 mm thru axle, tapered steered, 42 mm offset |
| Fork Travel | 140 millimeters |
| Rear Shock | RockShox Direct Select+ 2-pos. mode adjust, adjustable rebound |
| Crankset | 1-C Eagle DUB, 30T, 55 mm chainline |
| Bottom Bracket | SRAM DUB BSA MTB73 Wide |
| Shifters | 12-speed |
| Rear Derailleur | SRAM GX Eagle Lunar |
| Rear Cogs | SRAM Eagle XG-1275, 10-52, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM G2 R hydraulic disc, 180/180 mm HS2 centerlock rotors |
| Brake Levers | SRAM G2 R hydraulic disc |
| Rims | Stan's NoTubes Arch MK4, 28 h, tubeless ready |
| Front Hub | Formula 15 x 110 mm thru axle |
| Rear Hub | DT Swiss, 12 x 148 mm thru axle |
| Wheel Size | XS: 27.5 inches S: 29 inches M: 29 inches L: 29 inches |
| Tires | Front: Maxxis Dissector, 3C, EXO, tubeless ready; rear: Maxis Rekon, 3C, EXO, tubeless ready |
| Tire Width | 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | HollowGram SAVE riser bar, carbon, 35 mm clamp, 30 mm rise, 8 deg. sweep, 5 deg. rise, 780 mm |
| Stem | Cannondale 1, 7075 alloy, 1-1/8 in., 35 mm, 0 deg. |
| Seat Post | Cannondale DownLow dropper, internal routing, 31.6, 125 mm (XS-S), 150 mm (M-XL) |
| Dropper Post | Yes |
| Saddle | Cannondale Scoop Shallow Elite, chromoly rails |
| Pedals | Not included |
| Headset | Integrated sealed bearing, tapered |
| Chain | 12-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (208171)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'0'' - 5'2'' | 5'1'' - 5'5'' | 5'4'' - 5'9'' | 5'8'' - 6'0'' | 5'11'' - 6'5'' |
| Reach | 40.5 | 43.0 | 45.5 | 48.0 | 51.5 |
| Stack | 57.5 | 62.3 | 63.2 | 64.1 | 65.0 |
| Effective Top Tube | 52.7 | 56.3 | 59.0 | 61.7 | 65.4 |
| Seat Tube Center-Top | 36.0 | 38.0 | 40.0 | 44.5 | 50.0 |
| Standover Height | 70.5 | 73.0 | 73.5 | 75.1 | 76.2 |
| Head Tube Length | 10.0 | 11.0 | 12.0 | 13.0 | 14.0 |
| Head Tube Angle (degrees) | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat Tube Angle (degrees) | 71.5 | 70.5 | 71.0 | 72.0 | 73.0 |
| Bottom Bracket Height | 34.2 | 34.1 | 34.1 | 34.1 | 34.1 |
| Wheelbase | 112.9 | 117.0 | 120.0 | 123.4 | 127.8 |
| Chainstay | 43.4 | 43.4 | 43.5 | 44.0 | 44.5 |
| Fork Offset | 3.7 | 4.2 | 4.2 | 4.2 | 4.2 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
