How to Choose Mountain Bikes
Cannondale Moterra 3 Electric Mountain Bike
$5,299.00
Ready to roll, this Cannondale electric bike is snappy in the switchbacks and poised on sketchy descents. The stiff alloy frame and silky suspension give you the perfect combo for rugged trails.
Key Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Bosch Performance Line CX
Battery Capacity (Wh)
800 watt hours
- Built to go further—faster, this e-bike is made for endless spins, uphill wins and permanent grins on all kinds of trails, from the mild to the wild
- Rugged, responsive, and ready for anything, it has everything needed to tackle big days on the trail
- The 150 mm travel SmartForm C1 Alloy frame, huge 800 Wh battery and the most powerful Performance CX motor from Bosch make short work of long climbs
- SmartForm C1 Alloy frame is light, stiff and guaranteed for life by the manufacturer; frameset offers a cocktail of robust resilience and playful trail performance
- Equipped with the most powerful CX motor from Bosch and a removable 800 Wh battery to deliver smooth, sustained power, with enough juice to taunt gravity all day
- Performance CX motor cranks out up to 85 Nm of torque at 600W with a smooth, immediate and natural-feeling power delivery; adjustable to 100 Nm and 750W via the Bosch Flow app
- Bosch 800 Wh PowerTube battery fuels marathon rides and ambitious routes, giving you an extended range for adventures that refuse to quit
- Pedal assist range of 18 to 124 miles (30 to 200 km) depending on terrain, weight, riding style, etc.; see Bosch Range Calculator for more precise estimates

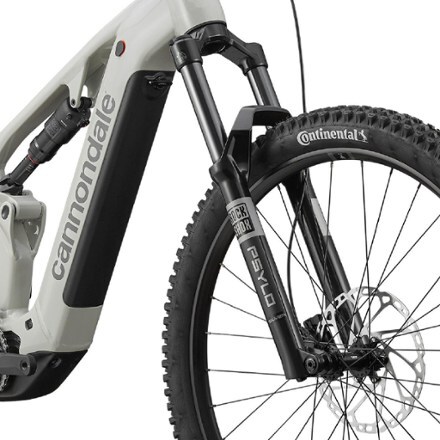

- A 160 mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride
- The RockShox workhorse all-mountain suspension combines a 160 mm Psylo Silver RC fork and Deluxe Select air shock for incredibly natural power delivery and a huge range
- Precise shifting from Shimano's CUES U6000 LinkGlide 11-speed drivetrain
- Shimano MT520 4-piston hydraulic disc brakes with 203 mm rotors deliver strong, consistent braking power
- Reliable WTB ST i30 rims, 30 mm inner width, with Shimano hubs and Continental™ Kryptotal tires
- 29 in. wheels roll fast, grip hard and float over obstacles that others dodge so roots and rocks become ramps and trails become playgrounds
- Integrated alloy skid plate keeps your motor and battery protected from roots and rocks
- Internal cable routing
- 55 mm chainline
- 200 mm native post mount brake
- 1.5 to 1.8 in. tapered headtube
- Integrated stealth kickstand mount means extra convenience, minus clunky visuals; easy to bolt on a kickstand if you need one (kickstand not included)
- Integrated Moterra rear rack and fender mounts (rack and fenders not included)
- Compatible with the Bosch PowerMore 250 range extender (not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Cannondale Moterra Product LineView all Cannondale Full-Suspension Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Mountain Biking |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bosch Performance Line CX |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 800 watt hours |
| Battery Removable | Yes |
| Pedal Assist Range | 18-124 miles |
| Mountain Bike Style | Trail |
| Frame | SmartForm C1 Alloy |
| Bike Suspension | Full Suspension |
| Fork | RockShox Psylo Silver RC, 160 mm, Motion Control, SoloAir, 15 x 110 mm Maxle, tapered steerer, 44 mm offset |
| Fork Travel | 160 millimeters |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230 x 62.5 mm |
| Crankset | FSA Bosch E-bike w/ 55 mm chainline, 160 mm, 34T |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Rear Cogs | Shimano CUES LG400, LinkGlide, 11-50T, 11-speed |
| Number of Gears | 11 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT520 4-piston hydraulic disc, 203 mm RT64 rotors |
| Brake Levers | Shimano MT501 hydraulic disc |
| Rims | WTB ST i30 TCS, 30 mm inner width, 32h, tubeless compatible |
| Front Hub | Shimano TC500, 15 x 110 mm thru-axle |
| Rear Hub | Shimano TC500, 12 x 148mm thru-axle, Center Lock |
| Wheel Size | 29 inches |
| Tires | Front: Continental Kryptotal-F, 29 x 2.4 in., Enduro Soft Black Foldable/Rear: Continental Kryptotal-R, 29 x 2.4 in., Enduro Soft Black Foldable |
| Tire Width | 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 riser, 6061 alloy, 25 mm rise, 8° sweep, 4° rise, 800 mm |
| Stem | Cannondale 1, 6061 alloy, 35.0, 40 mm, 0° |
| Seat Post | Cannondale DownLow Dropper, internal routing, 34.9, 150 mm (S), 170 mm (M), 200 mm (L), 230 mm (XL) |
| Dropper Post | Yes |
| Saddle | WTB Silverado Medium |
| Pedals | Not included |
| Headset | Acros ICR, 1.5 to 1.8 in., sealed bearings |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (C00568, C00567)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1'' - 5'5'' | 5'4'' - 5'9'' | 5'8'' - 6'1'' | 6'0'' - 6'5'' |
| Reach | 43.4 | 45.9 | 48.4 | 51.9 |
| Stack | 64.1 | 64.1 | 64.9 | 65.8 |
| Effective Top Tube | 56.3 | 59.2 | 62.2 | 66.2 |
| Seat Tube Center-Top | 40 | 40 | 43 | 46 |
| Standover Height | 76.8 | 77 | 77.2 | 77.5 |
| Head Tube Length | 12.5 | 12.5 | 13.5 | 14.5 |
| Head Tube Angle (degrees) | 64.8 | 64.8 | 64.8 | 64.8 |
| Seat Tube Angle (degrees) | 72.5 | 72.5 | 72.5 | 72.5 |
| Bottom Bracket Height | 34.3 | 34.3 | 34.3 | 34.3 |
| Wheelbase | 122 | 124.5 | 127.4 | 131.4 |
| Chainstay | 45.5 | 45.5 | 45.5 | 45.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
