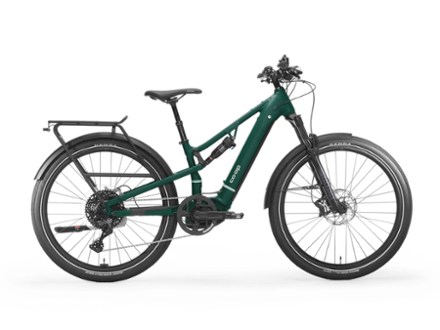

Co-op CyclesĀ CTY e3.1 Electric Bike
Cruise through daily rides all week and into the weekend with the Co-op Cycles CTY e3.1 e-bike. This urban SUV's dual-suspension design delivers control and comfort on even the roughest city streets.
Key Details
- Bosch Performance Line Speed, the smart system, is a Class 3 mid-drive motor with assist up to 28 mph; motor is paired with a PowerTube 625 battery and handlebar display
- The smart system connects your e-bike to the eBike Flow mobile app, which tracks power usage and ride data, lets you tune ride modes, and connects to popular apps like Strava
- PowerTube battery can be charged on or off the bike and is simple to remove: Unlock with the key, then push the secondary retention with an Allen key to get it all the way out
- Integrated front and rear lights increase visibilityā; plus, they run off the main battery so you don't have to charge them separately
- Sporty dual-suspension fit with adjustable stem provides a customized, comfortable riding position in easy-to-fit sizesā
- RockShox Recon Silver RL suspension fork and Deluxe Select+ RL rear shock provide 120 mm travel front and rear for a high level of control and comfort on rough pavement
- Tektro Gemini SL 4-piston hydraulic disc brakes with 180 mm rotors provide strong stopping power
- Ergo-style, gel-cushioned grips and steel rail comfort saddle fight fatigue so you can ride longer in comfort
- Flat-resistant Kenda tires stand up to city streets; reflective sidewalls for added visibility
- Tubeless-ready rims for riders who wish to upgrade to a tubeless tire system
- Fenders cut down road spray to keep you drier on rides ināor afterārainy weather
- X Fusion Manic dropper seatpost with remote lets you adjust saddle height on the go
- Comes with a bell
- Kickstand is stable and easy to use
- Comes with a 4A battery charger
- Included rear rack lets you carry your gear on the bike; rack weight limit is 39 lbs.; not designed for a child carrier
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
- Complies with UL 2849 ā Intertek Testing Services NA Inc.
- Some states require that Class 3 e-bike riders be 16 years or older; check your local regulations
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)āas many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Line Speed, the smart system |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 75 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 625 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 50% charge: approx. 2.1 hours; 100% charge: approx. 5.4 hours |
| Pedal Assist Range | Up to 60 miles |
| Bike Suspension | Full Suspension |
| Fork | RockShox Recon Silver RL Solo Air |
| Fork Travel | 120 millimeters |
| Rear Shock | RockShox Deluxe Select Plus RL |
| Crankset | FSA Isis 44T |
| Bottom Bracket | Bosch |
| Shifters | microSHIFT Advent X Trai Pro 1 x 10-Speed |
| Rear Derailleur | microSHIFT Advent X |
| Rear Cogs | microSHIFT Advent X CS-H10410-speed 11-48T |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro Gemini SLĀ 4-piston hydraulic disc |
| Brake Levers | Tektro 2-finger hydraulic with reach adjust |
| Rims | Co-op alloy double-wall, eyeleted, tubeless-ready |
| Front Hub | Alloy Disc 15 mm thru axle |
| Rear Hub | Alloy 32H, 148 mm; thru axle |
| Wheel Size | XS: 27.5 inches S: 27.5 inches M: 29 inches L: 29 inches XL: 29 inches |
| Tires | Kenda Kwick Seven.5 or Kwick Nine; 60 tpi; wire bead; K-Shield Plus Protection; reflective sidewalls |
| Tire Width | 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Co-op Riser, 15 mm rise, 9-degree sweep; 31.8 mm at center |
| Stem | 31.8 mm; forged aluminum; 4-bolt |
| Seat Post | X Fusion Manic dropper with remote |
| Dropper Post | Yes |
| Saddle | Co-op steel rail comfort saddle |
| Pedals | Wellgo aluminum platform with steel spindle |
| Headset | FSA Orbit 1-1/8 in. to 1-1/2 in. |
| Chain | KMC E10 Turbo |
| Weight | 60 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Label Certified brand |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'0" - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'3" |
| Reach | 400 | 415 | 435 | 460 | 485 |
| Stack | 601 | 601 | 630.5 | 639.7 | 639.7 |
| Effective Top Tube | 536.8 | 552.3 | 581.5 | 609.3 | 634.2 |
| Seat Tube Center-Top | 360 | 380 | 395 | 410 | 450 |
| Standover Height | 768.2 | 786.7 | 787.7 | 792.3 | 814.5 |
| Head Tube Angle (degrees) | 67 | 67 | 67 | 67 | 67 |
| Seat Tube Angle (degrees) | 72.8 | 72.7 | 72.7 | 72.7 | 72.7 |
| Wheelbase | 1143.3 | 1158.3 | 1192.7 | 1221.6 | 1246.6 |
| Chainstay | 440 | 440 | 456 | 456 | 456 |
| Fork Offset | 46 | 46 | 46 | 46 | 46 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Better gear is built together
From feedback to field testing, all of our gear is dialed-in by REI Co-op members. Their adventures informed every stitch and detailāmaking for better, longer-lasting gear.
Review this Product
Adding a review will require a valid email for verification
Customer Images
Feels like floating on air!
This bike simply āfloatsā along smooth surfaces. That may seem obvious but I mean it actually feels like you are floating on airā¦no resistance from the ground. And hitting speed bumps? What speed bumps?! Haha! With the full suspension it rolls right over any bumps. When I first took the bike out of the store to ride it around the block, I thought they left it on turbo because I was peddling with absolutely no effort. So clearly when the engine is engaged it is amazing. Having the ādropperā is so cool and really convenient b/c you can instantly adjust the seat as you ride to change the pressure on your wrists , making longer rides more apt to happen and more fun! Having the headlights come with the bike and already attached is a great help for the times you think you will be back before nighttime and donāt take your detachable lights and then donāt get home until after dark. And having the headlight run off the lithium batteries means you can leave it on all day and not worry about the lights batteries dying , a great safety feature. All in all I love this bike!
Multiple Issues with New Bike Purchase
I purchased this bike less than a week ago and am already on my second trip back to REI for repairs. On the very first ride, the hydraulic seat lever broke due to a screw not being properly tightened during assembly. That was resolved, but now Iāve encountered a second major issueāthe bike wonāt charge, either while connected directly to the frame or with the battery removed and plugged in separately. This bike was intended to help reduce my car usage, but ironically, Iāve been driving even more since purchasing itāback and forth trying to resolve issues that shouldnāt be happening on a brand-new product.
Luxury Mountain Bike
I'll start by saying that this is my first electric bike, so I am likely a bit more wowed by the coolness of it all than someone else whose had others. Before buying, I tried some cannondales and other coop-bikes but while I am an older (50) female and "should" have gone for a more cruiser type ebike, I grew up with BMX and mountain bike style bikes, so this sort of frame and set up feels more natural to me. I bought the bike to both commute to work, but also keep up with husband on trails. So far I love it. The motor is very powerful, smooth and pretty quiet. Since it is pedal assist, you can still work up a sweat, but you can do things that you may have not been able to do before. The full suspension is also new for me, and it is very kind on my broken tailbone. The dropper seat post is also super convenient, especially when stopping and dismounting. The rack is sturdy and quiet, and the integrated lights with internal cabling a gem. Why 4 instead of 5 stars - I am 5' 3.5" so I ordered both the Small and X-Small. The X-Small is rated for people 5'-5'3" and the Small 5'4" to 5'6". The standover height, however, is for much taller or leggier people. I kept the extra small and and if standing in front of the seat with flat shoes, I'm getting "intimate" with the bike. This is where the dropper seat post helps, so you're not dropping on the post from a higher position. The bike is also clumsy when you adjust the gears before the motor adjusts as well - take the motor a bit to adjust and you may end up pedaling like crazy until it settles. And yes, it is heavy like every other ebike, but taking out the battery makes picking it up to put in the car much easier. Finally, I really wish it was Class I. The crazy high speeds are not needed as this is not primarily a road bike - it is a mountain bike frame after all. With all the absurd regulations limiting class 3s, but letting class 2 throttle "scooters" on sidewalks, it would have been nicer to have it as a Class 1. (Color me bitter.) Overall, I am very satisfied with the purchase. I felt that the Co-op brand "threw in more" than pricier bikes from more well-known brands. My broken back is very appreciative of the full suspension, and my husband thrilled that we can do trails together again.
Workaholic
I bought this for use as a commuter. My ride is about ten miles, and it takes about forty minutes. I've had the bike about ten weeks, and ridden it to work about twenty times, round trip. It has 560 miles on the odometer. The bike is heavy, and could benefit with a "more bitey" front tire. I will inquire at REI. It really only works with the "OFF" mĆ“de going down hill; I have done a couple rides with long descents (3500 feet in ten miles) and found that mĆ“de useful. Note that was on gravel, and see "more bitey" above. By the way the ascent was done in TOUR or AUTO mode with no issues; it did eat up the battery in the 100 minute ascent, hence the use of OFF going down. NO known issue with the bike; the kickstand screws came loose; easily tightened with a 4 or 5 mm Allen. The rear rack is non-standard; even REI's panniers didn't fit. I ended up going back to the 1980s and using Eclipse panniers with the adapter plates from eBay. I have loaded the panniers with a spare battery shoes, food, but nothing close to the 300 pound weight limit ā 250 pounds maybe ā with only the usual effect on handling, like any loaded touring bike with tent, sleeping bag, clothes, food, &c. I also replaced the pedals with Shimano SPDs; with the stock pedals, the several shoes (like hiking boots, and sans cleats) which I had tried got rather loosened and sloppy after a few rides. The Bosch "Flow" app for android is okay (3Ā½ stars). It lacks heart rate monitoring, and has no web/browser equivalent, and doesn't work with Garmin nor MapMyRide application. The owner's manual sucks. It doesn't really explain the Bosch motor control, has a few pages on "sag", and doesn't detail any repair issues, e.g., a flat tire (which I haven't had), lubrication (I have ridden in rain), or other such niceties like the suspension, drive, &c. Parts availability? Unknown. I sought a spare battery (found on eBay) but the associated frame plate (the green plastic underneath) nor the lock plate (screwed on the upper forward end of battery to engage clamp) were not as yet obtainable. Anyway REI needs to up its game on support. The people are friendly enough, but the parts? I gave it a five ā anyway since it fits the purpose. I have ten months left to return it. And i really wish I could up the max speed from 28 mph to 34 .. it is needed in commuting with cars
