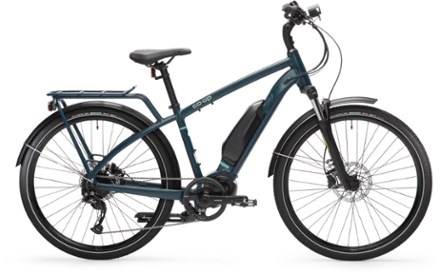

Co-op Cycles CTY e2.2 Electric Bike

$2,158.93 Compared to $2,699.00 *
Reduced Price. You save 20%
*Intermediate markdowns may have been taken.
HURRY! This item is discontinued. Shop now for best selection.
Color:Twilight Blue
please select a Size
Quantity
Choose a shipping method

You'll feel like you have quads of steel as you flatten hills, get a rush from rush hour and even roll down dirt roads to camp if you like, on the fast, nimble Co-op Cycles CTY e2.2 electric bike.

  • Features

    • An upgrade from the CTY e2.1 with a more powerful motor for improved acceleration and hill climbing, better battery to support the motor and increase range and fenders
    • Low stand-over height design makes the bike easy to get on and off and easy to stabilize while standing at a stop
    • Upright riding position gives you great visibility; adjustable stem lets you fine-tune the cockpit to fit you
    • Shimano e6100 motor is the strong, silent type, with more torque than that of the CTY e2.1, offering 3 pedal-assist modes plus a walk mode
    • Shimano E8010 504Wh battery extends your range and is equipped with an ABUS lock so you can feel confident parking it around town
    • Suntour front suspension fork smooths out the ride with 75mm of travel
    • 27.5 in. wheels with multisurface tread profile let you roll fast on hard pack, grip on gravel or dirt roads
    • Shimano hydraulic disc brakes deliver reliable, nuanced stopping power

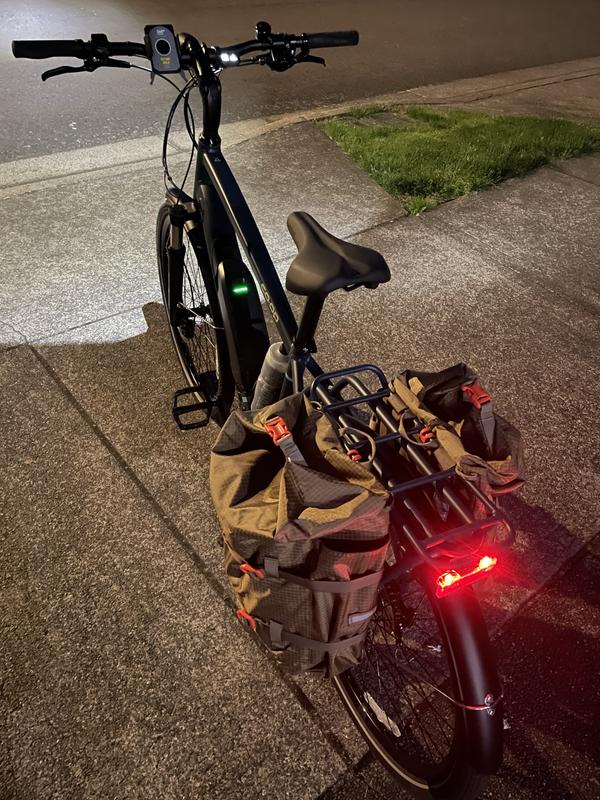

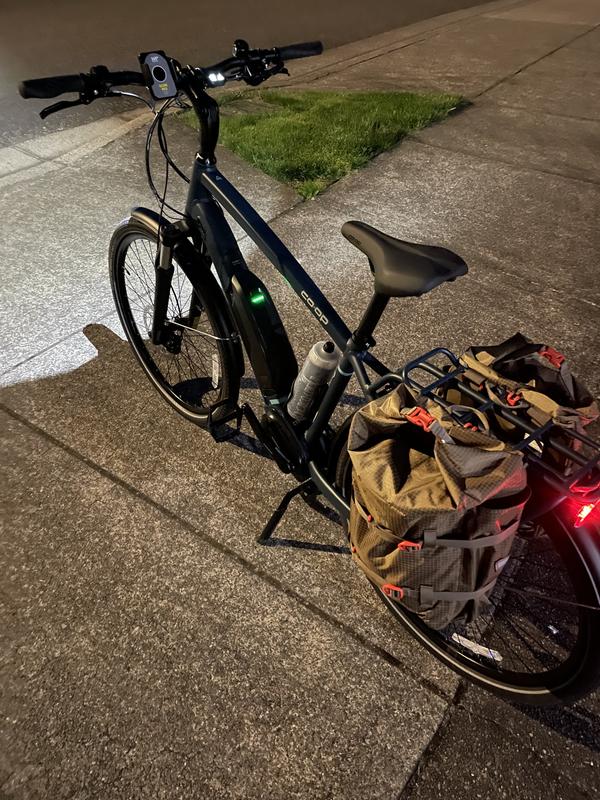

    • Integrated rear rack facilitates grocery runs, commuting or adding a kid carrier; pannier compatible with a weight limit of 59 lbs
    • Included front and rear lights run on the battery so you don't need to think about keeping them charged

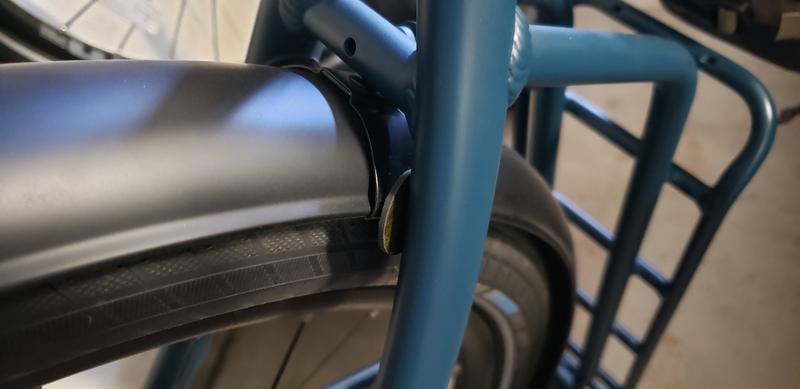

    • Included front and rear fenders for riding in less-than-ideal weather
    • Center kickstand is easy to use and super stable
    • Battery charger included
    • Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
    • Specs and images are subject to change

    Imported.

    This e-bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • An additional year of free adjustments (2 total years; see below)
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Co-op Cycles CTY Product Line View all Co-op Cycles Electric City Bikes
  • Technical Specs

    Best Use

    Urban Cycling

    E-Bike Classification

    Class 1: pedal assist up to 20 mph

    Motor

    Shimano E6100 250W with Shimano E8010 36V/504Wh battery (max torque output 60Nm)

    Motor Type

    Mid-Drive

    Motor Torque (Nm)

    60 Newton meters

    Battery Type

    Lithium Ion

    Battery Capacity (Wh)

    504 watt hours

    Battery Removable

    Yes

    Charge Time (hrs)

    4 hours

    Pedal Assist Range

    50 miles

    Frame

    6061 Aluminum

    Step-Through

    L: No

    Bike Suspension

    Front Suspension

    Fork

    Suntour MOBIE-A32

    Fork Travel

    75 millimeters

    Crankset

    Shimano FC-E6100

    Bottom Bracket

    Shimano FSA

    Shifters

    Shimano Acera, Rapidfire plus, 9-speed

    Rear Derailleur

    Shimano Alivio RD-M3100, 9-speed

    Rear Cogs

    Shimano HG200; 11-34, 9-speed

    Number of Gears

    9 gear(s)

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Shimano Altus

    Brake Levers

    Shimano

    Rims

    Co-op Cycles double-wall, 36h

    Front Hub

    Shimano Alivio

    Rear Hub

    Shimano Alivio

    Wheel Size

    27.5 inches

    Tires

    Schwalbe Big Ben 27.5 x 1.95 in.

    Tire Width

    1.95 inches

    Handlebar Shape

    Riser Bar

    Handlebar

    Co-op Cycles 6061 aluminum

    Stem

    Promax HQ adjustable

    Seat Post

    Co-op aluminum

    Saddle

    Co-op Comfort Plus with memory foam

    Pedals

    FPD alloy

    Chain

    Shimano for e-bike

    Weight

    51.9 pounds

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    S M L
    Height Range 5'0"-5'6" 5'3"-5'9" 5'6"-6'3"
    Reach 370 380 390
    Stack 612 621 649
    Effective Top Tube 558 577 602
    Seat Tube Center-Top 375 425 475
    Standover Height 676 755 790
    Head Tube Length 135 145 175
    Head Tube Angle (degrees) 70 70 70
    Seat Tube Angle (degrees) 73 72.5 72
    Fork Offset 44 44 44

    Sizing Notes

    Measurements are stated in millimeters unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
