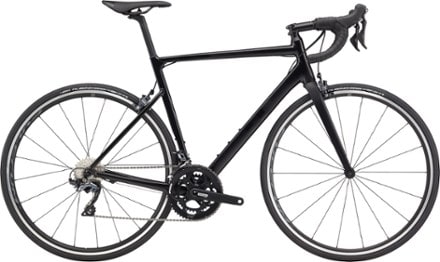

Cannondale CAAD13 Ultegra Bike - 2020
This product is not available.
Designed to be the ultimate alloy race machine, the 2020 Cannondale CAAD13 Ultegra bike can outperform carbon bikes—at an aluminum price—with its exceptional efficiency and superb handling.
Shop similar productsKey Details
- Drag-reducing tube shapes and sleek integration keep the CAAD13 light and make it much faster; truncated airfoil tube shapes reduce drag by up to 30% compared to round tubes
- Dropped seatstay configuration and ample room for bigger tires deliver an excellent blend of stiff efficiency and supple comfort
- Made from SmartForm C1 alloy, the lightest, most sophisticated aluminum construction available from Cannondale
- Subtle fender mounts let you fender up for wet weather riding and training (fenders not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | SmartForm C1 Premium Alloy |
| Bike Suspension | No Suspension |
| Fork | BallisTec Carbon, direct mount rim brake, SAVE, 1-1/8 to 1-1/4 in. tapered steerer, integrated crown race, 100x9mm QR, 55mm offset (47-54cm) 45mm offset (56-62cm) |
| Crankset | Cannondale 1, BB30a, FSA rings, 52/36 |
| Bottom Bracket | Cannondale BB30 |
| Shifters | Shimano Ultegra, 2x11 |
| Front Derailleur | Shimano Ultegra, braze-on |
| Rear Derailleur | Shimano Ultegra GS |
| Rear Cogs | Shimano 105, 11-30t, 11-speed |
| Number of Gears | 22 |
| Brake Type | Rim |
| Brakes | Shimano Ultegra |
| Brake Levers | Shimano Ultegra |
| Rims | Fulcrum Racing 600, alloy, 26mm deep |
| Front Hub | Fulcrum Racing 600 |
| Rear Hub | Fulcrum Racing 600 |
| Wheel Size | 700c |
| Tires | Vittoria Rubino Pro Bright Black, 700c x 28mm |
| Tire Width | 28 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Cannondale 3, 6061 alloy, Compact |
| Stem | Cannondale 3, 6061 alloy, 31.8, 7° |
| Seat Post | All-New HollowGram 27 KNOT, Alloy, 2 bolt clamp, 330mm |
| Saddle | Prologo Nago RS STN |
| Pedals | Not Included |
| Headset | CAAD13, 1-1/4" lower bearing, 25mm Alloy top cap |
| Chain | Shimano HG601, 11-speed |
| Weight | 18 lbs. 1.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| 51 CM | 54 CM | 56 CM | 58 CM | 60 CM | |
|---|---|---|---|---|---|
| Reach | 37.8 | 38.4 | 38.9 | 39.5 | 40 |
| Stack | 53.5 | 55.5 | 57.5 | 59.5 | 61.5 |
| Effective Top Tube | 53 | 54.6 | 56.2 | 57.8 | 59.4 |
| Seat Tube Center-Top | 48.1 | 51.9 | 54 | 56.2 | 58.3 |
| Standover Height | 75.3 | 79 | 80.5 | 82.9 | 84.8 |
| Head Tube Length | 13 | 15.4 | 16.4 | 18.8 | 20.9 |
| Head Tube Angle (degrees) | 71.2° | 71.2° | 73° | 73° | 73° |
| Seat Tube Angle (degrees) | 74.1° | 73.7° | 73.3° | 72.9° | 72.5° |
| Bottom Bracket Height | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 |
| Wheelbase | 59.8 | 61.1 | 59.4 | 60.7 | 61.8 |
| Chainstay | 40.8 | 40.8 | 40.8 | 40.8 | 40.8 |
| Fork Offset | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
