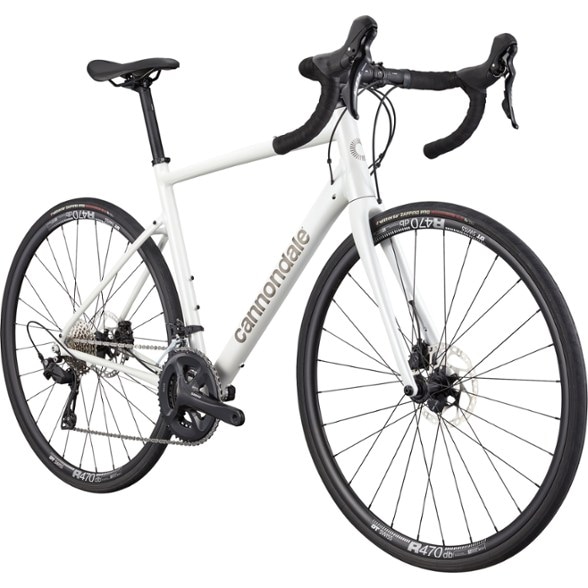

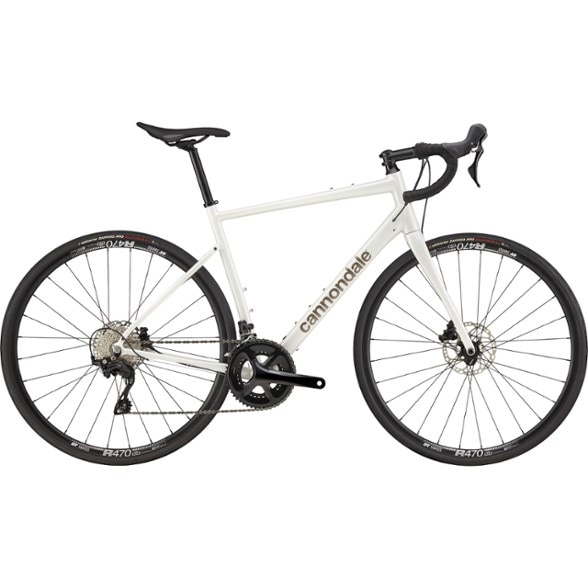

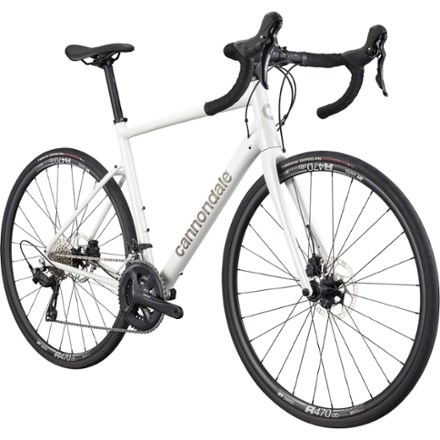

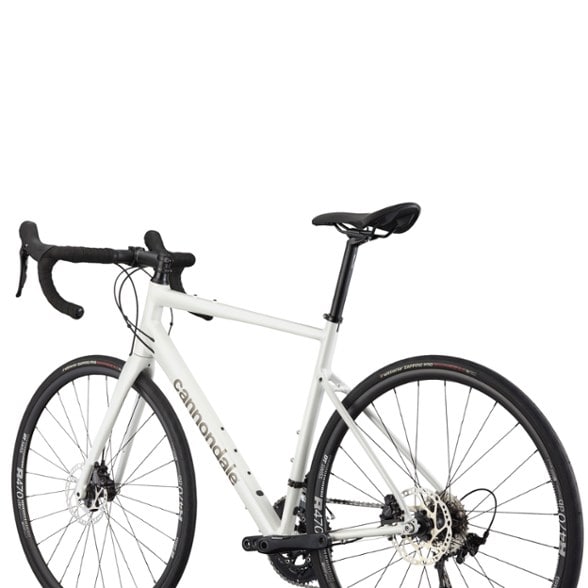

Cannondale Synapse 1 Bike
Wherever the road takes you, roll with this Cannondale Synapse bike. It's a comfortable, all-around, up-for-anything, pure road machine. The light SmartForm C2 Alloy frame has a full carbon fork.
Key Details
- Lightweight SmartForm C2 Alloy frame with a full carbon fork
- Synapse alloy frame tubes are shaped and butted with absolute precision to help absorb road chatter and bumps without adding weight or isolating you from the ride experience
- Everything you need for a bump-absorbing ride is engineered into the frame's tube shapes and alloy construction, giving you a light, smooth and sleek ride
- A comfortable riding position, planted handling and the responsiveness of alloy under power all create a bike that will help you feel in control and get more out of every ride
- Shimano 105 12-speed group
- Shimano 105 hydraulic disc brakes for smooth, controllable braking
- Clearance for up to 32 mm tires, with a big 6 mm of room on each side, lets you venture beyond the pavement with comfort and grip, or ride with full fenders
- Light, durable DT Swiss R470 wheels with 700c x 30 mm Vittoria tires
- Mounts and eyelets galore on the Synapse Alloy mean you can gear up for whatever the day, week or month has in store
- Your favorite bottle cages, gear bags and accessories (not included) are good to go
- SmartSense-compatible Synapse Alloy frame means it's easy to upgrade to the Cannondale system of intelligent running lights and rear-facing radar (not included)
- Trainer-ready; Synapse Alloy will help you push hard, on or off the road; comes with easy-to-install end caps, making it quick and simple to mount the bike on a trainer
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Cycling |
|---|---|
| Frame | Lightweight SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat mount, 142 x 12 thru axle, hidden rack/fender mounts |
| Bike Suspension | No Suspension |
| Fork | Synapse Carbon, integrated crown race, 12 x 100 mm thru axle, internal routing, flat mount brake, fender mounts |
| Crankset | Shimano RS520, 50/34 |
| Bottom Bracket | Shimano BB-RS500, BSA |
| Shifters | Shimano 105 7100, 12-speed |
| Front Derailleur | Shimano 105 7100, braze-on |
| Rear Derailleur | Shimano 105 7100, 12-speed |
| Rear Cogs | Shimano 105 7100, 12-speed, 11-34 |
| Number of Gears | 24 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano 105 7170 hydraulic disc, 160/160 mm RT64 centerlock rotors |
| Brake Levers | Shimano 105 7100 hydraulic disc |
| Rims | DT Swiss R470 DB, 28h |
| Front Hub | Formula CL-712, 12 x 100 mm centerlock |
| Rear Hub | Formula RXC-400, 12 x 142 mm centerlock |
| Wheel Size | 700c |
| Tires | Zaffiro Pro Bright Black Reflective, 700c x 30 mm |
| Tire Width | 30 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Cannondale 3, 6061 alloy, Compact |
| Stem | Cannondale 3, 6061 alloy, 31.8 mm, 7° |
| Seat Post | Cannondale 3, 6061 alloy, 27.2 x 350 mm |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Pedals | Not included |
| Headset | Integrated, 1-1/8 in. - 1-1/4 in. |
| Weight | Unavailable |
| Gender | Unisex |
| 44 CM | 48 CM | 51 CM | 54 CM | 56 CM | 58 CM | |
|---|---|---|---|---|---|---|
| Height Range | 5'0" - 5'4" | 5'2" - 5'6" | 5'5" - 5'9" | 5'7" - 5'11" | 5'9" - 6'1" | 6'0" - 6'4" |
| Reach | 36.5 | 37.1 | 37.6 | 38.1 | 38.7 | 39.3 |
| Stack | 51 | 53 | 55 | 57 | 59 | 61 |
| Effective Top Tube | 52.1 | 53.3 | 54.4 | 55.5 | 56.7 | 58 |
| Seat Tube Center-Top | 40 | 42.2 | 44.3 | 48 | 52 | 55 |
| Standover Height | 68.1 | 70.2 | 72.3 | 75.3 | 78.4 | 81 |
| Head Tube Length | 9.6 | 11.5 | 14 | 16 | 18.1 | 20.5 |
| Head Tube Angle (degrees) | 70.2 | 70.8 | 71 | 71.9 | 72 | 72 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 26.3 | 26.3 | 26.8 | 27 | 27 | 27.3 |
| Wheelbase | 98.5 | 99.3 | 100.6 | 101 | 102.1 | 103.5 |
| Chainstay | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Write a Review
Adding a review will require a valid email for verification
Customer Images
Disappointed in REI's saddle substitution
I am disappointed not so much in Cannondale as in REI. REI's specifications differ from the Cannondale specs published online. For example, REI provides a Fizik Aliante Delta saddle but Cannondale specs an Aliante R5. The difference is significant because accessing the angle adjustment screw on the seat post requires a saddle with a center hole, but the cheap REI spec saddle is a solid saddle. That means I need to remove the saddle to adjust the seat angle. (There is a plastic nut (add?) that might be for adjustment, but it does not budge without removing the saddle.) REI should highlight its changes so that co-op members are fully aware that they are buying a product that is different from the manufacturer's standard specification. Apparently, I should have gone line-by-line to compare what Cannondale describes and what REI describes. If that is the expectation, REI should list the product as a "Modified Cannondale Synapse 1" rather than a genuine Synapse 1 as sold by Cannondale.

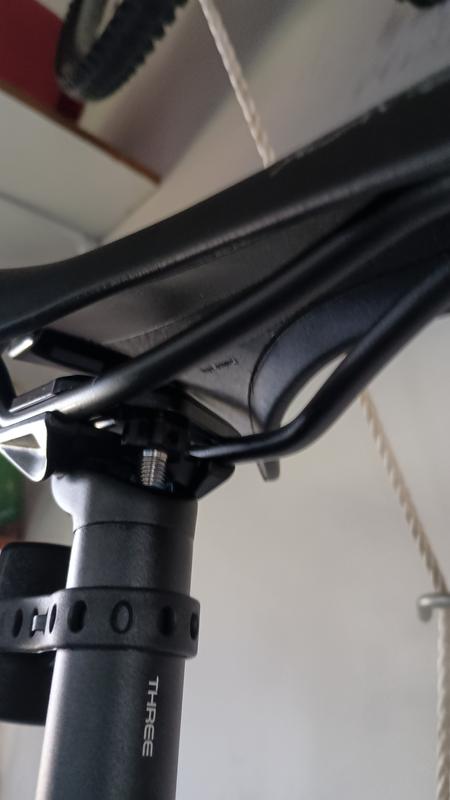

Saddle adjustment on synapse 1
You need to look closer , there is a star nut with a set screw so you can move it if needed to stay within the range. All you have to do is turn the star style nut from the front to tilt the saddle. Simple and ingenious.
