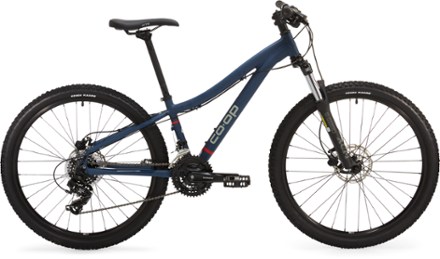

Co-op Cycles DRT 1.0 Mountain Bike
$478.93Compared to $599.00*Save 20%
For riders 4'9" to 5' tall who're ready to rip some singletrack, the Co-op Cycles DRT 1.0 features 26 in. wheels, a versatile 3 x 7 drivetrain and the solid stopping power of hydraulic disc brakes.
Key Details
Wheel Size
26 inches
Fork Travel
100 millimeters
Number of Gears
21 gear(s)
- Shimano 3 x 7 drivetrain provides 21 gears for riders to conquer a variety of terrain
- 26 in. wheels make steering quick and responsive
- SR Suntour suspension fork's aluminum lower is lightweight and provides 100 mm of travel for a smooth ride
- Shimano rear derailleur delivers smooth and precise gear changes
- Tektro hydraulic disc brakes deliver reliable stopping power on or off-road, regardless of weather conditions
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles DRT Product LineView all Co-op Cycles Hardtail Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Co-op Cycles 6061 aluminum |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour |
| Fork Travel | 100 millimeters |
| Crankset | Shimano Tourney 42/34/24T |
| Bottom Bracket | Cartridge bearing square |
| Shifters | Shimano Rapidfire Plus |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney |
| Rear Cogs | Shimano 12-32T, 7-speed |
| Number of Gears | 21 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro hydraulic disc |
| Brake Levers | Tektro |
| Rims | Co-op Cycles 26, 32 H |
| Front Hub | Shimano |
| Rear Hub | Shimano |
| Wheel Size | 26 inches |
| Tires | Kenda Kadre, 26 x 2.1 |
| Tire Width | 2.1 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Co-op Cycles |
| Stem | Co-op Cycles 6061 |
| Seat Post | Co-op Cycles 27.2 diameter |
| Saddle | WTB Volt Sport |
| Pedals | Co-op Cycles |
| Headset | External headset |
| Chain | KMC 7-speed |
| Weight | 31 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Label Certified brand |
Co-op Cycles Bikes (162207)
| XXS | |
|---|---|
| Height Range | 4'9" - 5'0" |
| Reach | 375 |
| Stack | 539.7 |
| Effective Top Tube | 540 |
| Seat Tube Center-Top | 320 |
| Standover Height | 647.5 |
| Head Tube Angle (degrees) | 69 |
| Seat Tube Angle (degrees) | 73 |
| Wheelbase | 1042.6 |
| Chainstay | 430 |
| Fork Offset | 40 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
