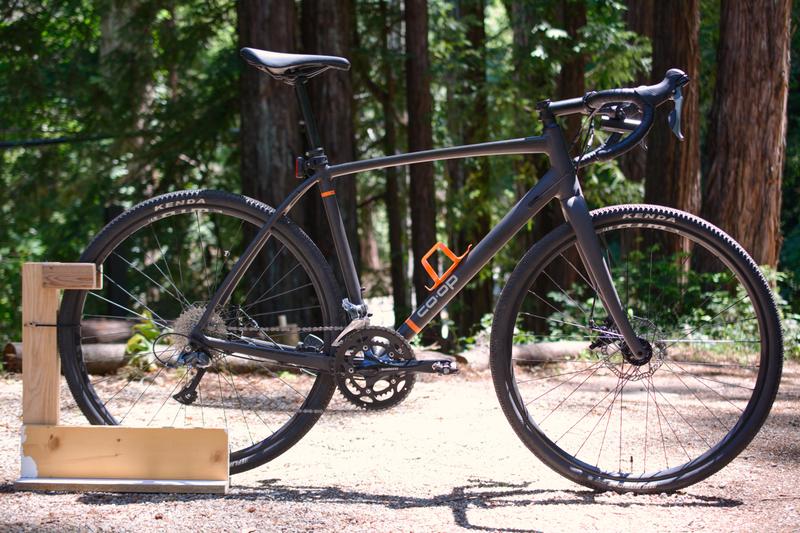

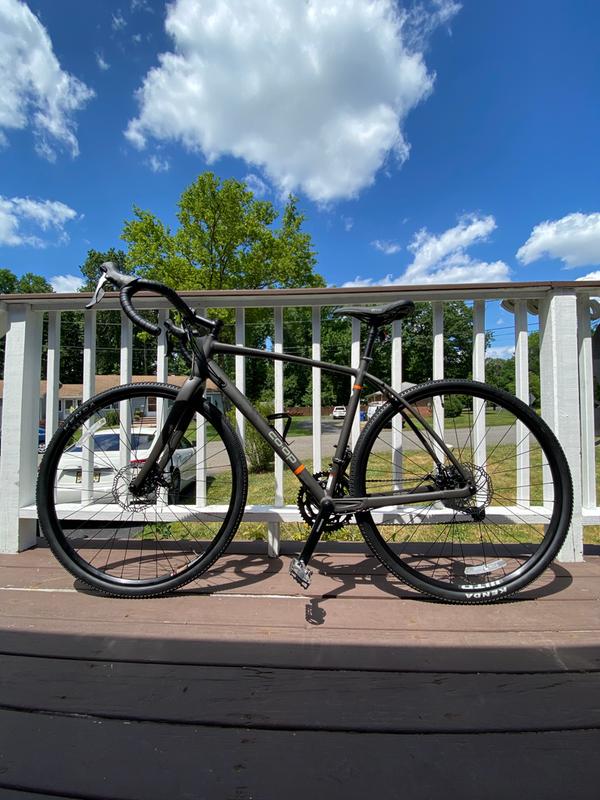

Co-op Cycles ADV 2.1 Bike

$1,299.00
Color:Pirate Black
please select a Size
Quantity
Choose a shipping method
To buy, sign in as an REI Co-op Member or join now.
Members get an estimated $129.90 back on this item.
Join the co-op today to get free standard shipping. Members get free standard shipping with this item.

Members, get an estimated $129.90 back on this item as a part of your annual .

Fast and comfortable spinning down the highway, the Co-op cycles ADV 2.1 bike doesn't flinch when you leave the pavement behind—it just digs in and grinds gravel.

  • Features

    • Aluminum frame and carbon fork balance durability and light weight—durability so you can carry a kit and lightness so you can climb with ease
    • Shimano Claris 2 x 8 drivetrain with compact double cranks provides an excellent range of gears for both speed and power
    • Promax mechanical disc brakes deliver powerful, reliable speed control

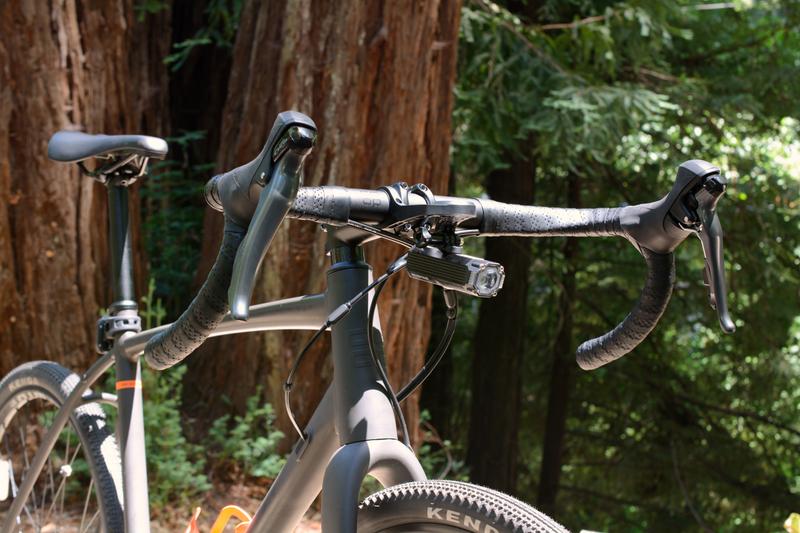

    • 12° flared handlebars gives you a wider and more upright hold
    • Kenda Flintridge 700c x 35mm tires are built for speed with a clean centerline for efficiency on hardpack terrain and shoulder knobs for grip on gravel
    • All-gender fit simplifies the buying process and fits riders 5'0"–6'3"
    • ADVs are our adventure bikes: This one is made for riders ready to make the leap to gravel, with a focus on solid components for on-and off-road riding

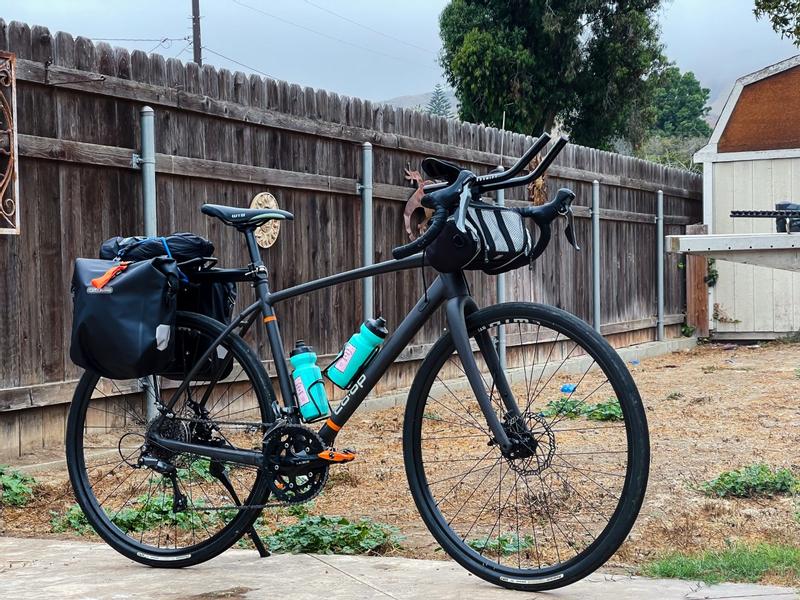

    • Add a frame bag or rear rack to extend your adventure overnight (bag and rack not included)

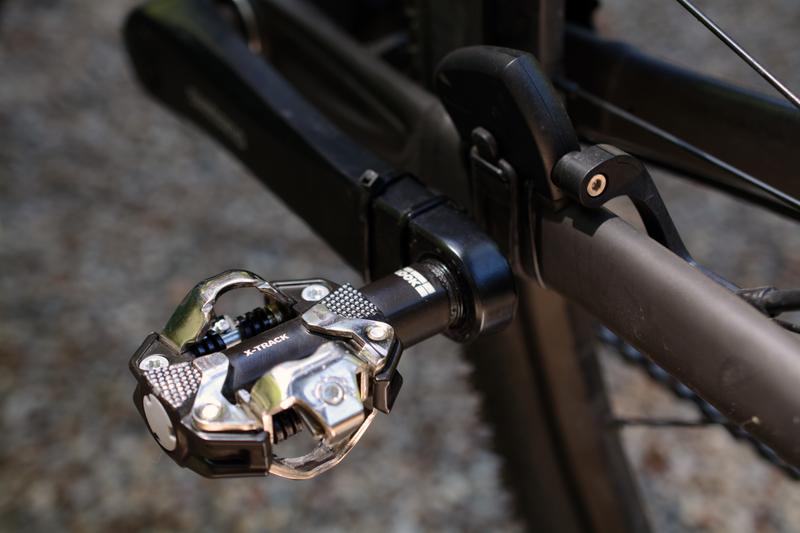

    • Pedals not included
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Co-op Cycles ADV Product Line View all Co-op Cycles Gravel Bikes
  • Technical Specs

    Best Use

    Road Cycling

    Bikepacking

    Gravel Cycling

    Bike Frame Material

    Aluminum

    Frame

    Double-butted 6061 aluminum

    Fork

    Carbon with 1-1/8 to 1-1/2 tapered steerer tube

    Bike Suspension

    No Suspension

    Crankset

    Shimano FC-RS200, 50-34t

    Bottom Bracket

    Shimano UN26

    Shifters

    Shimano Claris

    Front Derailleur

    Shimano Claris

    Rear Derailleur

    Shimano Claris

    Rear Cogs

    Shimano Claris, 8-speed

    Number of Gears

    16 gear(s)

    Brake Type

    Mechanical Disc Brake

    Brakes

    Promax DSK-718R cable actuated dual piston

    Brake Levers

    Promax

    Rims

    WTB ST i19 TCS 2.0 (tubeless ready)

    Front Hub

    DM 32H, 12mm thru axle

    Rear Hub

    DM 32H, 12mm thru axle

    Wheel Size

    700c

    Tires

    Kenda Flintridge 700c x 35mm with reflective patch

    Tire Width

    35 millimeters

    Handlebar Shape

    Drop Bar

    Handlebar

    Co-op Cycles 12-degree flared

    Stem

    Co-op Cycles 6061 aluminum

    Seat Post

    Promax 6061 aluminum

    Saddle

    WTB Silverado Comp

    Pedals

    Not included

    Headset

    Integrated 1-1/8 x 1-1/2 in. tapered

    Chain

    KMC HG40

    Weight

    23.5 pounds

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    XS S M L XL
    Height Range 5' - 5' 3" 5' 3" - 5' 6" 5' 6" - 5' 9" 5' 9" - 6' 6' - 6' 3"
    Reach 373 380 386 394 404
    Stack 521 532 554 571 592
    Effective Top Tube 513 528 545 563 585
    Seat Tube Center-Top 385 435 470 510 545
    Standover Height 698.5 727 756 785 811
    Head Tube Angle (degrees) 70 70.5 71.5 71.5 72
    Seat Tube Angle (degrees) 75 74.5 74 73.5 73
    Wheelbase 1022 1029 1029 1040 1045
    Chainstay 432 432 432 432 432
    Fork Offset 55 55 50 50 50

    Sizing Notes

    Measurements are stated in millimeters, unless otherwise indicated

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
