Co-op Cycles CTY 2.2 Bike

Item #121599
Product Image of color Dark Army Cot loading
Dark Army Cot

This product is not available. Good news: we have a newer version.

Shop newer version

Smooth riding even on rough streets, the Co-op Cycles CTY 2.2 hybrid bike has rack/fender compatibility, a front suspension fork for bumps, an all-Shimano 3 x 9 drivetrain and hydraulic disc brakes.

  • Features

    • Lightweight yet strong 6061 aluminum frame with front suspension delivers a smooth ride over rough roads; fork lockout option helps you ride more efficiently on smooth terrain
    • Shimano Alivio trigger shifters guide the 27 smooth-shifting gears with precision

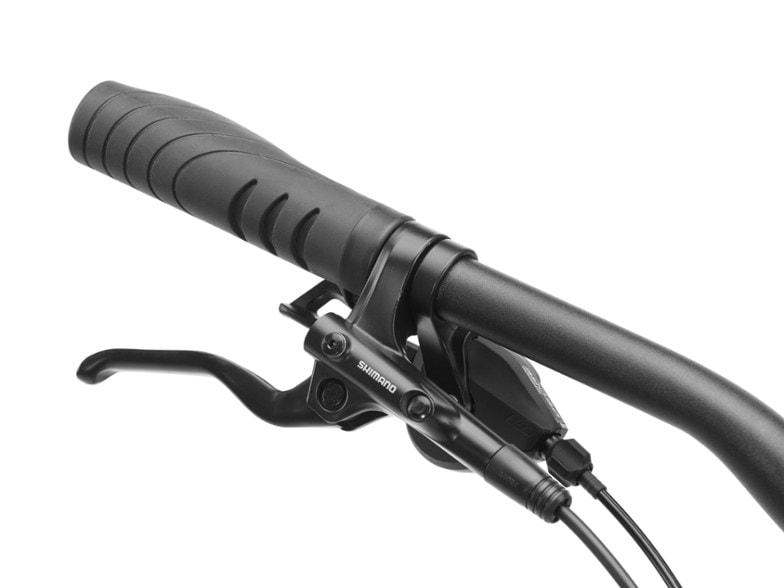

    • Shimano hydraulic disc brakes maintain consistent performance in all conditions
    • Puncture-resistant 700 x 40c tires employ a wide, stable contact patch for confidence on and off pavement
    • Selle Royal Shadow + gel saddle adds comfort
    • Accommodates a rear rack and fender (racks and fenders sold separately)
    • Rear brake cable internal routing offers a clean look
    • Platform pedals do not require special shoes—just jump on and go
    • Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Co-op Cycles CTY Product LineView all Co-op Cycles Hybrid Bikes

  • Technical Specs

    Best Use

    Urban Cycling

    Frame

    6061 aluminum

    Step-Through

    No

    Bike Suspension

    Front Suspension

    Fork

    SR Suntour NRX, 63mm travel with lockout

    Fork Travel

    63 millimeters

    Crankset

    Shimano Acera, 44/32/22

    Bottom Bracket

    Shimano Octalink

    Shifters

    Shimano Alivio

    Front Derailleur

    Shimano Alivio

    Rear Derailleur

    Shimano Alivio

    Rear Cogs

    Shimano HG-300, 11-36, 9-speed

    Number of Gears

    27 gear(s)

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Shimano M365 hydraulic disc

    Brake Levers

    Shimano

    Rims

    GLM

    Front Hub

    Joytech

    Rear Hub

    Joytech

    Wheel Size

    700c

    Tires

    Kenda Flintridge, 700 x 40

    Tire Width

    40 millimeters

    Handlebar Shape

    Riser Bar

    Handlebar

    Aluminum

    Stem

    Aluminum

    Seat Post

    Aluminum

    Saddle

    Selle Royal Shadow with gel

    Pedals

    Wellgo aluminum platform with steel spindle

    Headset

    FPD cartridge

    Chain

    Shimano CN-HG53

    Weight

    30.8 pounds

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Instructions & Manuals

    Owners manual , opens in new window

  • Size Chart

    XSSMLXL
    Height Range5'0"-5'3"5'3"-5'6"5'6"-5'9"5'9"-6'0"6'0"-6'3"
    Reach380.6397.3401.1409.6422.6
    Stack582.9592.2615.3634.2657.9
    Effective Top Tube549.6569584.5604.5624.5
    Seat Tube Center-Top350400450500550
    Standover Height712.0748783.0816.0852.0
    Head Tube Angle (degrees)70.070.071.071.071.0
    Seat Tube Angle (degrees)74.074.073.573.573.5
    Wheelbase10721092109611081129
    Chainstay450450450450450
    Fork Offset4646464646

    Sizing Notes

    All measurements are stated in millimeters or degrees unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
