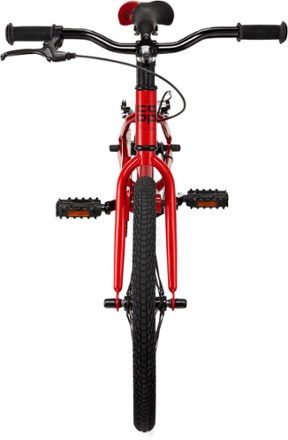

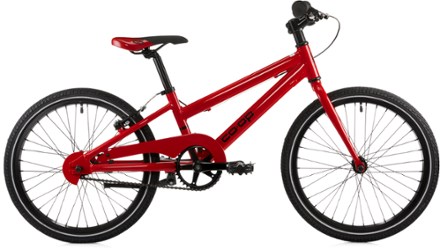

Co-op Cycles REV 20 Kids' Bike - Red Hot

Item #113910
Product Image of color Red Hot loading
Red Hot

This product is not available.

Shop similar products

Developing riders can comfortably transition to hand brakes with the Co-op Cycles REV 20 bike—it has coaster brakes, too, as well as a light aluminum frame and familiar BMX-inspired handlebar.

  • Features

    • Sturdy and light aluminum can handle kids on the move
    • BMX-style handlebar is comfortable and fun; pads enhance safety while front mud guard helps keep things clean
    • 2 brake options let kids learn to use hand brakes while offering the familiarity of coaster brakes while they adjust
    • Sticker pack includes tons of fun designs so kids can decorate their bike however they want
    • Bicycle weight limit is 80 lbs. total, including rider + all gear carried on the bike and on the rider's body
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Co-op Cycles Rev Product LineView all Co-op Cycles Kids' Mountain Bikes

  • Technical Specs

    Best Use

    Recreational Cycling

    Frame

    Aluminum single-speed frame

    Bike Suspension

    No Suspension

    Fork

    Steel

    Crankset

    Allow, 36t

    Bottom Bracket

    Steel loose ball

    Rear Cogs

    16t

    Number of Gears

    1

    Brake Type

    Rim

    Brakes

    Tektro linear pull

    Brake Levers

    Tektro

    Rims

    Aluminum

    Front Hub

    Joytech, 36h, nutted

    Rear Hub

    KT, 36h coaster, nutted

    Wheel Size

    20 inches

    Tires

    Kenda Kontact, 20" x 1.75"

    Tire Width

    1.75 inches

    Handlebar Shape

    Riser Bar

    Handlebar

    Steel

    Stem

    Co-op Cycles aluminum

    Seat Post

    Alloy

    Saddle

    Co-op Cycles

    Pedals

    Wellgo composite platform

    Headset

    1-1/8 threadless steel

    Chain

    KMC

    Weight

    20 lbs. 1.3 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Kids'

  • Instructions & Manuals

    User Manual , opens in new window

  • Size Chart

    20 IN
    Reach331
    Stack371
    Effective Top Tube473
    Seat Tube Center-Top257
    Standover Height511
    Head Tube Angle (degrees)71
    Seat Tube Angle (degrees)69
    Wheelbase878
    Chainstay375
    Fork Offset42

    Sizing Notes

    Measurements are stated in millimeters unless otherwise indicated.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
