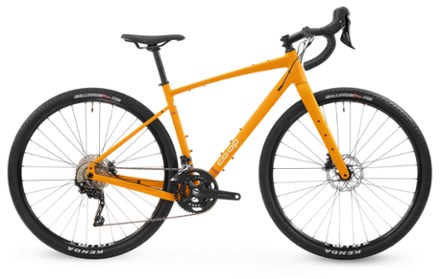

Co-op Cycles ADV 2.2 Bike
Equipped with Shimano GRX components, a full carbon fork and plenty of tire clearance, the gravel-forward Co-op Cycles ADV 2.2 keeps it stable but lively on back roads—or wherever your ride takes you.
Key Details
- Stable but lively, gravel-forward 6061 aluminum frame features a full carbon fork, internal cable routing and plenty of accessory mounts
- Multiple accessory mounts let you fit everything you want to carry; mounts include under/over triple on down tube, under/over double on top tube, and triple on both fork legs
- Also features fender/rack mounts on seatstays and a fender mount on the chainstay bridge
- Spec'd with 700c x 45 mm tires; also compatible with 650b wheels and up to 45 mm tires with fenders (not included)
- Offered in 5 sizes for heights 5' to 6'3"
- 12 mm front thru axle, 12 mm rear thru axle and SRAM UDH (universal derailleur hanger) for universal repairability and lateral stiffness
- Frame is compatible with a 27.2 mm diameter dropper post (not included)
- WTB gravel saddle with relief section
- Tubeless-ready rims and tires make it easy to go tubeless to help minimize flats and optimize tire pressure (requires use of tubeless sealant; not included)
- Shimano GRX 400 hydraulic disc brakes for powerful braking with great modulation
- Co-op Cycles gravel-flare handlebar with shockproof pinhole tape provides multiple hand position choices and vibration damping
- Shimano GRX 400/600 2x10-speed drivetrain provides smooth shifting on varied terrain
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
Best Use | Road Cycling Gravel Cycling |
---|---|
Frame | Co-op Cycles aluminum with SRAM UDH Road; 12 mm thru |
Bike Suspension | No Suspension |
Fork | Co-op Cycles ADV full carbon fork with tapered steerer |
Crankset | Shimano GRX 600, 2-piece, 46/30T, size-specific arm length |
Bottom Bracket | BSA, included in crankset |
Shifters | Shimano GRX 400, 2x10-speed dual-control levers |
Front Derailleur | Shimano GRX 400, 10-speed, brazed-on type with SM-AD91 34.9 mm clamp adapter |
Rear Derailleur | Shimano GRX 400, 10-speed, Shadow Plus, direct attachment |
Rear Cogs | Shimano CS-HG50, 10-speed cassette, 11-36T |
Number of Gears | 20 gear(s) |
Brake Type | Hydraulic Disc Brake |
Brakes | Shimano GRX 400 hydraulic disc with 160 mm Shimano SM-RT54 Center Lock rotors |
Rims | WTB ST i21 TCS 2.0, 29 in./700c, 32-hole, tubeless-ready |
Front Hub | Shimano HB-RS470 100 x 12 mm thru, 32-hole, Center Lock |
Rear Hub | Shimano FH-RS470 142 x 12 mm thru, 32-hole, Center Lock |
Wheel Size | 700c |
Tires | Kenda Alluvium Pro, 700c x 45 mm, folding, 120 tpi, tubeless-ready |
Tire Width | 45 millimeters |
Handlebar Shape | Drop Bar |
Handlebar | Co-op Cycles aluminum ergo, 31.8 mm clamp, 12 deg. flare, 80 mm reach, 125 mm drop, size-specific width |
Stem | Co-op Cycles aluminum 4-bolt, 31.8 mm clamp, 6 deg. rise, size-specific length |
Seat Post | Co-op Cycles aluminum, 8mm offset, 27.2 mm diameter, size-specific length |
Saddle | WTB Silverado medium, steel, polyurethane leather, 265 x 142 mm, ABR corners |
Pedals | Not included |
Headset | Integrated, 1-1/8 in. upper, 1-1/2 in. lower |
Chain | Shimano HG-X 10-speed, 114 links |
Weight | Unavailable |
Gender | Unisex |
Sustainability | From a Climate Label Certified brand |
XS | S | M | L | XL | |
---|---|---|---|---|---|
Height Range | 5'0" - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'3" |
Reach | 365.0 | 376.0 | 385.0 | 394.0 | 404.0 |
Stack | 540.5 | 558.5 | 579.2 | 600.1 | 621.1 |
Effective Top Tube | 519.8 | 536.1 | 556.5 | 571.7 | 587.9 |
Seat Tube Center-Top | 385 | 435.0 | 470.0 | 500.0 | 530.0 |
Standover Height | 689.5 | 728.2 | 758.1 | 788.1 | 814.3 |
Head Tube Length | 100 | 114 | 138 | 160 | 180 |
Head Tube Angle (degrees) | 69.8 | 71.0 | 71.5 | 71.5 | 72.0 |
Seat Tube Angle (degrees) | 74.0 | 74.0 | 73.5 | 73.5 | 73.5 |
Bottom Bracket Height | 284.5 | 284.5 | 288.5 | 288.5 | 288.5 |
Wheelbase | 1023.1 | 1028.5 | 1041.5 | 1057.5 | 1069.0 |
Chainstay | 438.0 | 438.0 | 438.0 | 438.0 | 438.0 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Better gear is built together
From feedback to field testing, all of our gear is dialed-in by REI Co-op members. Their adventures informed every stitch and detail—making for better, longer-lasting gear.


Review this Product
Adding a review will require a valid email for verification
Love this bike....from an ex bike racer
Awesome bike! Ex bike racer and wanted a versatile performance ride for gravel roads and pavement at a lower cost. Super pleased with how well this bike rides. Tire size is fantastic with a cush ride but it also gets up and goes very quickly. Love this bike! I've always had great products from the REI brand from their soft goods to hard goods. Highly recommend this bike. Love all the built-in attachment points for racks, panniers, bags, etc. Really well done!
First Gravel Bike
This is the first bike I've owned in probably 20 years, and the first gravel bike at that. I test rode a few other bikes before this purchase to make sure drop handlebars felt alright. While they take a little getting used to, this bike has been pretty forgiving to someone who hasn't ridden in years. From the more experienced bike folks I've spoken with, it's got great components for the price and will take care of me as long as I take good care of it. So far I'm happy with it after a handful of 15+ mile rides. Will update if anything changes.
Great for the price.
Great bike for the price. Got it on sale for about 1,500 before tax, and I couldn't be happier. Components are good for the price range, the hydraulic disc brakes came set up great and work fantastic. Not the lightest bike in the world, but still feels quick and agile, while also comfortable. The wrap job on the bars could have been better, but that's a cheap and easy fix. Wheels were easy to go tubeless in, and the included tires so far have been great for hard pack gravel and a bit of single track.
Reach is a little long, overall great value
Picked this up a week ago, so my experience with it is limited. First impressions are very promising, great spec for the price. One thing I will say is this bike is a tad more aggressive than I would like for an all day rider. Pay attention to the reach, the medium fits like my M/L endurance bike from another brand. The bike accelerates quick and turns seem stable, even high speed on the road. Not sure why REI is discontinuing this particular model, but it provides great value for the dollar.
Perfect rural area bike
First Ride was wonderful, upgraded from a Mountain bike to this Gravel road bike and love the difference. Handles great on the dirt roads and on paved roads the gearing and feel is much faster and more comfortable. I found that the majority of my miles will be on paved roads but require at least 2 to 3 miles of gravel roads to get there. I really like the drop down bars, allowing for more positions on longer rides and also into the wind the lower position cuts the wind resistance. Shifting was easy and comfortable, I purchases Shimono dual pedals with clipping and standard pedal. I wanted to keep the jump on the bike and ride to a friends house while still wearing tennis shoes option but when going for the training ride I wanted that full use pedal stroke. I recommend this bike.
Get It While You Can
Solid gravel bike. Love the color, mounting options, carbon fork and 2x10 drive train. I've taken this on some intense single track and it's held up great. Shame it's being discontinued.
