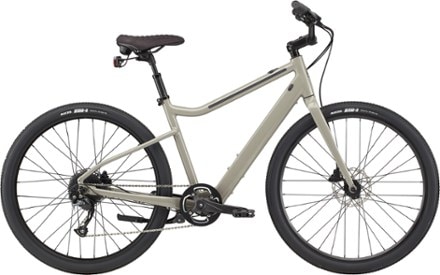

Cannondale Treadwell Neo Electric Bike
This product is not available.
A pedal around town on the Cannondale Treadwell Neo electric bike is sure to put a smile on your face. This e-bike is comfortable for leisurely rides and agile enough to take on crowded streets.
Shop similar productsKey Details
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
MAHLE ebikemotion X35 250W
Battery Capacity (Wh)
250 watt hours
Weight
33 lbs.4.8 oz.
- E-system display includes MAHLE ebikemotion iWoc ONE integrated controller, iWoc Trio and a smartphone app with Intellimount stem
- ebikemotion iWoc ONE integrated controller uses one button to control the entire bike and connects to your smartphone for additional customization
- Intuitive controller allows you to select your assist level and see your battery charge, all with a simple color-coded button
- MAHLE ebikemotion electric assist system has a strong 250-watt rear hub motor and hidden 250Wh battery, giving you the power to do more
- Light, powerful ebikemotion rear-hub drive system; battery range up to 47 mi. (75 km)
- Integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
- Comfort saddle, suspension seatpost and upright handlebar for a seat position that's not too upright or too forward
- Easy-ride geometry makes it easy to get on and off, with an easy reach to the handlebar, and a seat position that makes it easy to put a foot down when you stop
- Rear light for added visibility
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Treadwell Product LineView all Cannondale Electric City Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | MAHLE ebikemotion X35 250W |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 40 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 250 watt hours |
| Battery Removable | No |
| Charge Time (hrs) | 6 hours |
| Pedal Assist Range | 47 miles |
| Frame | SmartForm C3 alloy |
| Step-Through | No |
| Bike Suspension | Seat Suspension |
| Fork | SmartForm C3 alloy |
| Crankset | Prowheel, 38T |
| Bottom Bracket | Cartridge, square taper |
| Shifters | Shimano Altus, 9-speed |
| Rear Derailleur | Shimano Altus 9-speed |
| Rear Cogs | Shimano HG200, 11-36T, 9-speed |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro HD-R280 hydraulic disc, 160/160 mm rotors |
| Brake Levers | Tektro hydraulic disc |
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Front Hub | Formula, quick release |
| Rear Hub | Formula, quick release |
| Wheel Size | 650b |
| Tires | Maxxis DTR-1, 650b x 47 mm |
| Tire Width | 47 millimeters |
| Handlebar Shape | BMX Bar |
| Handlebar | Cannondale Cruise Control riser, 6061 alloy, 31.8 mm, 15 deg. back, 740 mm |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8 mm clamp |
| Seat Post | Promax Suspension seatpost, 31.6, 40 mm |
| Saddle | Cannondale Treadwell Saddle 170 mm steel rails |
| Pedals | Cannondale Urban |
| Headset | 1-1/8 in. Ahead, semi-integrated |
| Chain | KMC E9T, 9-speed |
| Weight | 33 lbs.4.8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (189124)
| S | M | L | |
|---|---|---|---|
| Height Range | 4'11" - 5'6" | 5'4" - 6'0" | 5'10" - 6'0" |
| Reach | 36.8 | 37.9 | 39.0 |
| Stack | 55 | 68 | 61 |
| Standover Height | 66.5 | 70.9 | 74.7 |
| Head Tube Angle (degrees) | 70.5 | 71 | 71 |
| Seat Tube Angle (degrees) | 71 | 71 | 71 |
| Bottom Bracket Height | 28 | 28 | 28 |
| Wheelbase | 105.4 | 107.1 | 109.2 |
| Chainstay | 46 | 46 | 46 |
| Fork Offset | 5.5 | 5.5 | 5.5 |
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
