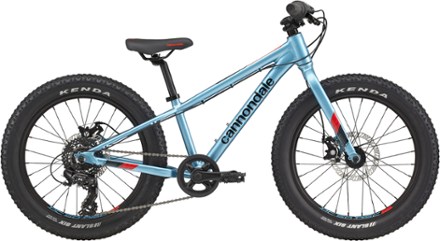

Cannondale Cujo 20+ Kids' Mountain Bike
This product is not available.
Built to turn little rippers into full-on mountain bikers, the Cannondale Cujo 20+ kids' bike is equipped with big grippy tires, mechanical disc brakes and seriously trail-worthy components.
Shop similar productsKey Details
- SmartForm C2 alloy frame and fork are light and durable
- Shimano Revo 7-speed twist shifter makes it easy for kids to change gears across the wide-range cassette
- Mechanical disc brakes offer reliable stopping power in all conditions and on any terrain
- Kids' plus-size wheels and tires (20 x 2.6 in.) offer a plush, grippy ride
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
Best Use | Mountain Biking |
---|---|
Mountain Bike Style | Trail |
Frame | SmartForm C3 alloy, smooth welding |
Fork | SmartForm C3 alloy, 1-1/8 in. steerer, IS disc mount |
Bike Suspension | No Suspension |
Crankset | Prowheel with double guard, 30T, 130 mm |
Bottom Bracket | Cartridge, square taper |
Shifters | Shimano Revo 7-speed twist shift |
Rear Derailleur | Shimano Tourney |
Rear Cogs | 11-34T, 7-speed |
Number of Gears | 7 gear(s) |
Brake Type | Mechanical Disc Brake |
Brakes | Tektro mechanical disc, 160/160 mm rotors |
Brake Levers | Tektro 3 finger |
Rims | Cannondale Disc, lightweight alloy, double wall, 20 in., 29mm inner width, 28h |
Front Hub | Alloy Disc QR, 28H |
Rear Hub | Formula QR |
Wheel Size | 20 inches |
Tires | Kenda Slant 6, 20 x 2.6 in. |
Tire Width | 2.6 inches |
Handlebar Shape | Riser Bar |
Handlebar | Alloy 600 mm x 30 mm (width x rise) |
Stem | Alloy Ahead, 30 mm |
Seat Post | Lightweight alloy, 25.4 mm |
Saddle | Cannondale Ergo |
Pedals | Wellgo composite platform with reflectors |
Headset | 1-1/8 in. Ahead, semi-integrated |
Chain | KMC Z7, 7-speed |
Weight | Unavailable |
Gender | Kids' |
20 IN | |
---|---|
Reach | 30.6 |
Stack | 44.4 |
Effective Top Tube | 45 |
Seat Tube Center-Top | 26.5 |
Standover Height | 52.2 |
Head Tube Angle (degrees) | 69.5 |
Seat Tube Angle (degrees) | 72 |
Bottom Bracket Height | 21.6 |
Wheelbase | 86.6 |
Chainstay | 37.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
