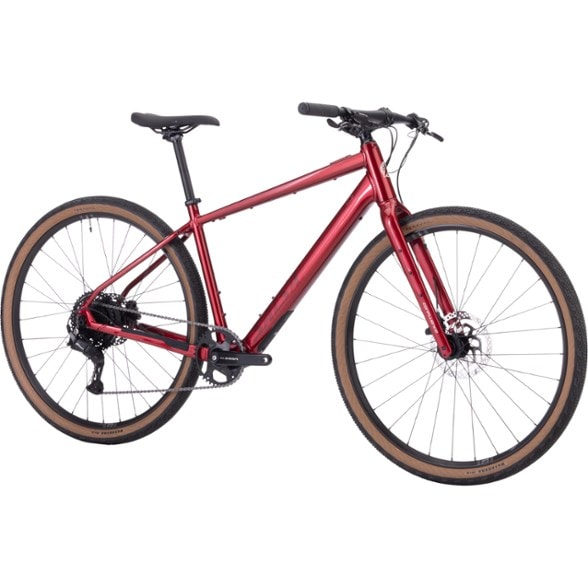

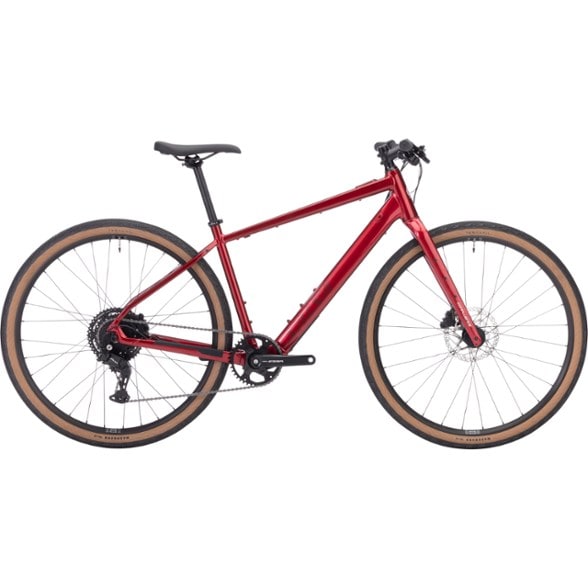

Salsa Confluence Flat Bar ESSA 8 Electric Bike
Squeeze more adventure into each day with this Salsa e-bike. It empowers riders to chase gravel with low-torque assist. Plus it has mounts for on-bike cargo for any mission.


Key Details
- 6061-T6 aluminum alloy frame
- Carbon fork offers a compliant ride and keeps weight down
- Geometry is designed for comfort and stability
- Suspension-corrected for 40 mm gravel suspension forks (not included)
- MAHLE X30 class 1 hub-drive system with 45 Nm max torque
- 250Wh internal battery
- Multiple mounting points for on-bike storage, including both rack and fender mounts (racks and fenders not included)
- Salsa handlebar and stem
- HMI compact remote top tube controller
- Shimano ESSA 1 x 8-speed drivetrain with hydraulic brakes
- 40T chainring with 11–45T cassette
- Spec'd with tubeless-ready WTB i25 wheels and Teravail Washburn 700c x 50 mm tires
- Accommodates up to 700c x 50 mm tires without fenders; 700c x 42mm maximum tire clearance with fenders
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Gravel Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | MAHLE X30 |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 45 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 250 watt hours |
| Battery Removable | No |
| Charge Time (hrs) | 3.5 hours |
| Frame | Aluminum |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | Carbon |
| Crankset | Shimano ESSA U2000, 40T |
| Shifters | Shimano ESSA M315-8R |
| Rear Derailleur | Shimano ESSA U2000 |
| Rear Cogs | Shimano HG300, 11-45T, 8-speed |
| Number of Gears | 8 gear(s) |

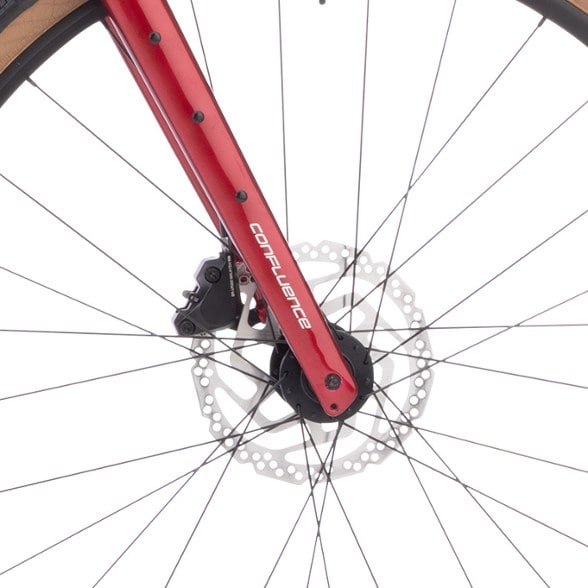

| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT201 |
| Brake Levers | Shimano MT200 |
| Rims | WTB ST i25 |
| Front Hub | WTB |
| Rear Hub | MAHLE X30 |
| Wheel Size | 700c |
| Tires | Teravail Washburn, wire bead |
| Tire Width | 50 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | Salsa Salt Flat |
| Stem | Salsa Guide |
| Seat Post | Promax 12 mm setback |
| Saddle | WTB Volt |
| Pedals | Not included |
| Headset | FSA |
| Chain | KMC 8-speed |
| Weight | Unavailable |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 4'11" - 5'4" | 5'3" - 5'8" | 5'7" - 6'0" | 5'11" - 6'4" |
| Reach | 401.3 | 419.9 | 433.5 | 447.4 |
| Stack | 551.8 | 589 | 626.2 | 662.6 |
| Effective Top Tube | 570 | 600 | 625 | 650 |
| Seat Tube Center-Top | 380 | 450 | 490 | 530 |
| Standover Height | 669 | 731 | 770 | 809 |
| Head Tube Length | 120 | 160 | 200 | 240 |
| Head Tube Angle (degrees) | 68.5 | 68.5 | 68.5 | 68.5 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Wheelbase | 1080.3 | 1113.6 | 1141.9 | 1170.1 |
| Chainstay | 440 | 440 | 440 | 440 |
| Fork Offset | 51 | 51 | 51 | 51 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
Write a Review
Adding a review will require a valid email for verification

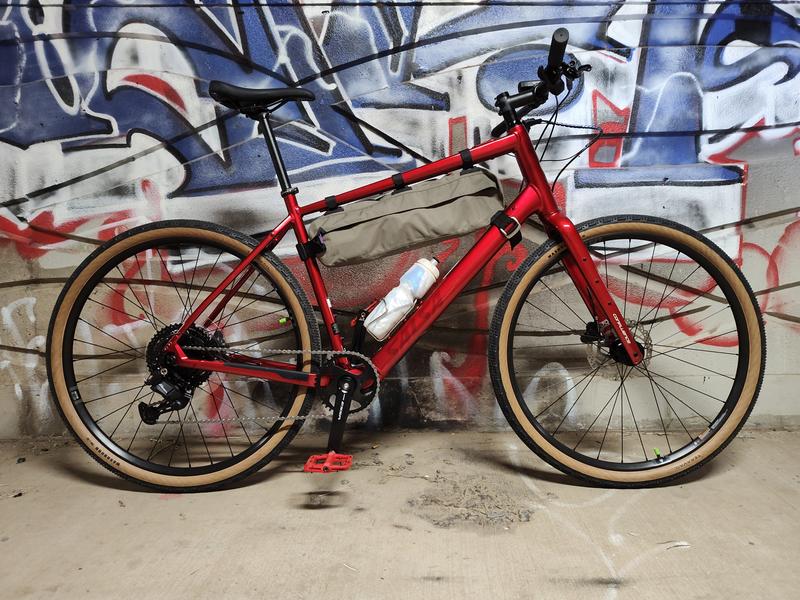

Customer Images
The return of the triple crankset.
There are tons of eBikes on the market. To me most of them are not bikes, they are transportation… things, and they look and ride wrong. No soul and way too heavy. My previous eBike was a conversion kit that I built myself. That bike made me think about the very first motorcycles from the late 1800s that were motorized bicycles. It rode like a bicycle with the bonus of power and range. Being a life-long bicyclist THAT’s what I wanted. This Salsa Confluence is that. It’s got that soul. It handles like a bike and has enough extra juice to keep me going in spite of age and illness, while keeping me pedaling and maintaining strength. All the older bikes in my garage have triple chainrings. As a retro-grouch I indeed scoff whenever I see a single chainring gravel cyclist riding flat terrain spinning at high cadence in their highest gear, going nowhere fast. The drivetrain and electric assist on this Salsa effectively returns what the triple chainring does. Shift into boosted power when you need it in the high or low range to get up hills or gain speed, just like the big ring and granny gear on a triple. Geometry and fit. I’m 6’ 1” tall with a 34” inseam and chose the XL frame size based on REI and Salsa’s online fit calculators. I like my frames bigger and this fits me great. I do believe the L size frame would have also worked great for me. The handling is very stable. This bike stays pointed where you want to go on dirt roads and trails, and cornering at speed. Range on my first few rides has been exactly as advertised at forty miles. The Mahle app gives great data on your power usage and maps what mode you were in along the map of your ride. So I've been riding with no power assist along the flats, and boosting into low when i need a few miles of rest, and amping it up to mid power up a hill. Or if I need to keep up in traffic for safety, mid to sometimes high power for brief periods. If you are already a cyclist with years of managing your own power as the motor of your bike, this is very natural. I do plan on buying the external range extending battery eventually. When riding with no power assist there is a bit of drag, but I’d argue that a loaded touring bike would feel worse. The amount of time that the app shows me I’m spending without any power at all proves it’s no big deal. I cross shopped this with a mid drive Specialized and really disliked it, I swear my road triple equipped bike accelerated faster under my own power. Rear drive electric hub motors are nothing fancy or special but this felt better to me and the quality of the Mahle drive components is apparent. My freight invoice claimed the weight at 33 pounds, so this bike is easy to handle and toss around when I’m not in the saddle. I reviewed this here because I really couldn’t find any out there for this exact bike. It seemed like exactly what I wanted so I took an informed chance on it, and it’s really so much better than those bike shaped objects that aren’t even (shaped like bikes). Bike industry inside joke, that. Thanks Salsa, thanks for reading and thanks REI.
