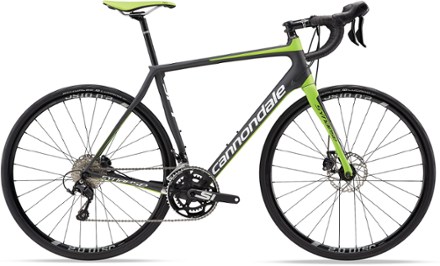

Cannondale Synapse Carbon Disc 105 Bike - 2017

Item #892478
Product Image of color Exposed Carbon/Nearly Black loading
Exposed Carbon/Nearly Black

This product is not available.

Shop similar products

Combining ultralight carbon construction with powerful disc brakes, the Cannondale Synapse Carbon Disc 105 road bike emphasizes comfort with relaxed positioning for demanding long-distance rides.

  • Features

    • Synapse carbon frame features optimized tube shaping to promote efficiency and comfort; frame geometry gives a more upright position than more race-oriented road frames
    • Rear part of the frame and the all-carbon fork feature the Cannondale Synapse Active Vibration Elimination (S.A.V.E.) technology for damping road vibration
    • FSA Cannondale Si compact crankset is paired with an 11-32T cassette for a capable gear range; BB30 bottom bracket enhances stiffness for efficient power transfer
    • Shimano 105 derailleurs supply precise, dependable shifts throughout the 22 gear combinations
    • Shimano BR785 hydraulic disc brakes provide smooth, even stopping power even in wet conditions
    • Maddux RD 2.0 disc wheelset is decked out with fast Schwalbe Lugano tires for excellent handling and speed
    • Pedals sold separately
    • Specs and images are subject to change

    Imported.

    This bike comes with Coast to Coast Support, which includes:
    • 1 year of free adjustments (see more below)
    • In-store bike assembly
    • Pickup in store or curbside
    • Bike experts available at 170+ bike shops
    REI Co-op Members get more:
    • Free flat tire repairs (labor only; parts not included)
    • 20% off shop services
    More about our free adjustments:
    New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

    View the Cannondale Synapse Product LineView all Cannondale Endurance Bikes

  • Technical Specs

    Best Use

    Road Cycling

    Frame

    BallisTec carbon

    Fork

    S.A.V.E. carbon

    Bike Suspension

    No Suspension

    Crankset

    Cannondale Si, BB30a, FSA rings, 50/34

    Bottom Bracket

    FSA BB30

    Shifters

    Shimano R505

    Front Derailleur

    Shimano 105

    Rear Derailleur

    Shimano 105

    Rear Cogs

    Shimano 105, 11-32, 11-speed

    Number of Gears

    22

    Brake Type

    Hydraulic Disc Brake

    Brakes

    Shimano BR785 hydraulic disc

    Brake Levers

    Shimano R505

    Rims

    Maddux RD 2.0 disc

    Front Hub

    Formula CX20

    Rear Hub

    Formula CX 22

    Wheel Size

    700c

    Tires

    Schwalbe Lugano folding, 700 x 28

    Tire Width

    28 millimeters

    Handlebar Shape

    Drop Bar

    Handlebar

    Cannondale C3 compact 6061 alloy

    Stem

    Cannondale C3

    Seat Post

    Cannondale C3

    Saddle

    Fabric Spoon Shallow Elite

    Pedals

    Sold separately

    Headset

    Synapse Si

    Chain

    Shimano HG600

    Weight

    19 lbs. 6.4 oz.

    Bike Weight

    Bike weight is based on median size, as sold, or the average of two median sizes.

    Gender

    Unisex

  • Size Chart

    51 cm54 cm56 cm58 cm61 cm
    Height Range5’3”- 5’6” 5’6” - 5’9” 5’9” - 6’0” 6’0" - 6’3” 6'3" - 6'6"
    Reach3737.838.639.440.2
    Stack54.9575961.163.1
    Effective Top Tube52.454.256.158.160.1
    Seat Tube Center-Top4649515457.5
    Standover Height72.575.877.88184.5
    Head Tube Length14.616.618.620.822.9
    Head Tube Angle (degrees)71.37172.57373
    Seat Tube Angle (degrees)74.373.973.57372.5
    Bottom Bracket Height26.526.826.82727
    Wheelbase98.699100101.3102.8
    Chainstay41414141.341.3
    Fork Offset54.54.54.54.5

    Sizing Notes

    Measurements are stated in centimeters.

    How we measure bikes

    1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
    2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
    3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
    4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
    5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
    6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
    7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
    8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
    9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
    10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
    11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
    12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
