Van Rysel EDR 2 AF Claris Bike
$1,199.00
Members get an est. $119.90 in rewards
From morning commutes to mellow weekend miles, this Van Rysel bike delivers a light, easygoing ride. Simple Shimano shifting and all-weather disc brakes help you explore with confidence.
Key Details
Wheel Size
700c
Number of Gears
16 gear(s)
This item pays for membership!
$119
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$149
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Built for adventure, training and everything in between
- Ergonomic setup with comfort drop handlebar and aluminum seatpost enhances control and reduces fatigue on long rides
- Double-butted 6061 aluminum frame is lightweight and makes adventures more enjoyable without sacrificing durability
- Lightweight carbon fork damps vibrations from rough roads and features gear mounts for longer rides

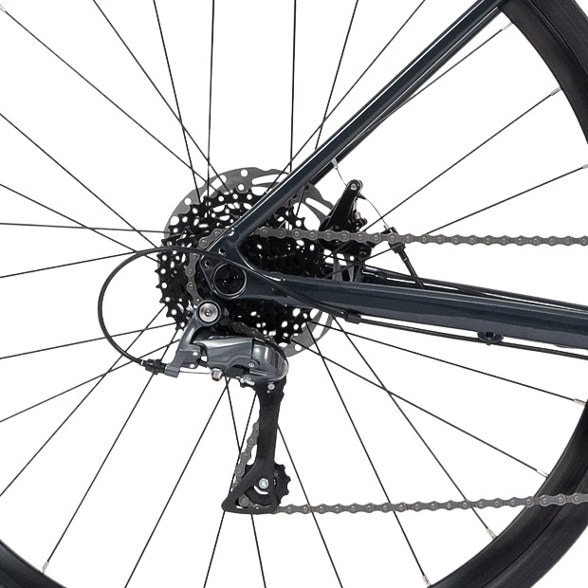

- Shimano Claris drivetrain with 48/32T chainrings and 11–34T cassette for smooth, reliable shifting on any terrain
- Durable aluminum wheels with 700c x 28 mm tires handle tough all-road conditions
- Complete bike weighs 23.78 lbs (10786.43 g) in size M and supports a combined load of up to 242 lbs. (110 kg)
- Van Rysel provides a lifetime warranty on the frame, 5 years on the carbon fork and 2 years on components for long-term reliability
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Van Rysel Road Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | 6061 double-butted aluminum |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | Carbon |
| Crankset | Prowheel 1-piece, 48/32T |
| Bottom Bracket | Prowheel BB68 |
| Shifters | Shimano Claris 2 x 8-speed |
| Front Derailleur | Shimano Claris FD-2000 |
| Rear Derailleur | Shimano Claris RD-2000 |
| Rear Cogs | Microshift H81, 11-34T |
| Number of Gears | 16 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro MD C550 |
| Brake Levers | Shimano Claris |
| Rims | VR aluminum rims |
| Front Hub | Thru-axle 12 x 100 mm |
| Rear Hub | Thru-axle 12 x 142 mm |
| Wheel Size | 700c |
| Tires | VR 700c x 28 mm |
| Tire Width | 28 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Alloy road drop bar |
| Stem | Aluminum T6 7 deg. |
| Seat Post | VR 27.2 |
| Saddle | SRCN A086 |
| Pedals | Wellgo alloy platform |
| Headset | Integrated BTwin |
| Chain | KMC Z-7 |
| Weight | 23.78 lbs. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |

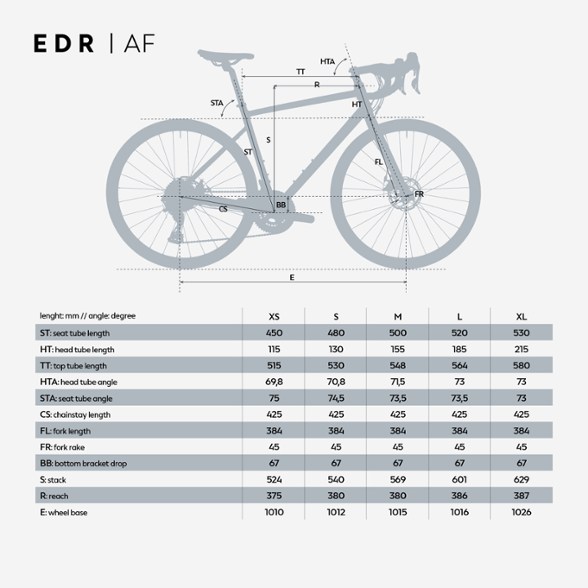

Van Rysel Bikes (249714)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'5" - 5'8" | 5'8" - 5'11" | 5'11" - 6'2" | 6'2" - 6'6" |
| Reach | 380 | 380 | 386 | 387 |
| Stack | 540 | 569 | 601 | 629 |
| Effective Top Tube | 530 | 548 | 564 | 580 |
| Seat Tube Center-Top | 480 | 500 | 520 | 530 |
| Standover Height | 757 - 836 | 936 - 915 | 915 - 983 | greater than 983 |
| Head Tube Length | 130 | 155 | 185 | 215 |
| Head Tube Angle (degrees) | 70.8 | 71.5 | 73 | 73 |
| Seat Tube Angle (degrees) | 74.5 | 73.5 | 73.5 | 73 |
| Wheelbase | 1012 | 1015 | 1016 | 1026 |
| Chainstay | 425 | 425 | 425 | 425 |
| Fork Offset | 45 | 45 | 45 | 45 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
