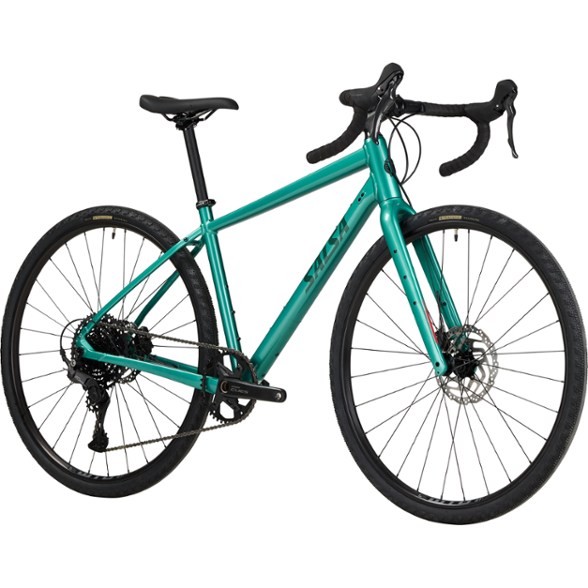

Salsa Journeyer Drop Bar CUES 1x10 Bike
A road and gravel adventure machine, the Salsa Journeyer Drop Bar CUES 1 x 10-speed bike's aluminum frame and carbon fork are great for mixed-surfaces, while its cargo capacity benefits bikepacking.
Key Details



- 6061-T6 alloy frame
- Salsa Waxwing V2 carbon fork with aluminum steerer includes fender mounts, Three-Pack mounts, mid-blade rack mounts, dynamo routing and abrasion-resistant plate
- Flat-mount brakes
- Internal routing for brakes, shifters and dropper post
- Top tube and down tube accessory mounts on frame hold ride essentials
- Spec'd with 700c x 42 mm wheels and tires; compatible with 700c and 650b wheels and tires
- Frame fits tires up to 700c x 50 mm or 650b x 55 mm (27.5 x 2.1 in.)
- Waxwing fork fits tires up to 700c x 50 mm or 650b x 56.5 mm
- 12 x 100 mm thru-axle front; 12 x 142mm thru-axle rear
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
Best Use | Gravel Cycling Bikepacking |
---|---|
Frame | Journeyer Drop-Bar Thru-Axle |
Step-Through | No |
Bike Suspension | No Suspension |
Fork | Waxwing V2 carbon with aluminum steerer |
Crankset | Shimano CUES U6030, 42T |
Bottom Bracket | Shimano CUES 68mm BSA |
Shifters | Shimano CUES U6030 |
Rear Derailleur | Shimano CUES U6000, 10/11-speed |
Rear Cogs | Shimano CUES LG300, 11-48T, 10-speed |
Number of Gears | 10 gear(s) |
Brake Type | Hydraulic Disc Brake |
Brakes | Shimano CUES U6030 |
Brake Levers | Shimano CUES U6030 |
Rims | WTB ST i23, TCS 2.0, 28h, 700c |
Front Hub | Shimano RS470 12 x 100 mm |
Rear Hub | Shimano RS470, 12 x 142 mm |
Wheel Size | 700c |
Tires | Teravail Washburn, wire-bead |
Tire Width | 42 millimeters |
Handlebar Shape | Drop Bar |
Handlebar | Salsa Cowbell 3 |
Stem | Salsa Guide |
Seat Post | Salsa Guide |
Saddle | Volt Medium Steel |
Pedals | Not included |
Headset | FSA NO.42/ACB |
Chain | Shimano CUES LG500 LINKGLIDE |
Weight | Unavailable |
Gender | Unisex |
49 CM | 51 CM | 53 CM | 55 CM | 57 CM | 60 CM | |
---|---|---|---|---|---|---|
Height Range | 4'7''-4'11'' | 4'11''-5'2'' | 5'1''-5'6'' | 5'4''-5'10'' | 5'8''-6'0'' | 6'0''-6'5'' |
Reach | 366 | 369 | 372 | 376 | 387 | 409 |
Stack | 510 | 528 | 552 | 570 | 599 | 627 |
Effective Top Tube | 493 | 510 | 530 | 550 | 570 | 600 |
Seat Tube Center-Top | 340 | 380 | 410 | 450 | 490 | 520 |
Standover Height | 617 | 652 | 688 | 724 | 760 | 807 |
Head Tube Length | 90 | 105 | 130 | 150 | 180 | 210 |
Head Tube Angle (degrees) | 68.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
Seat Tube Angle (degrees) | 76 | 75 | 74 | 73 | 73 | 73 |
Bottom Bracket Height | 283 | 283 | 283 | 283 | 283 | 283 |
Wheelbase | 1027 | 1028 | 1040 | 1051 | 1072 | 1104 |
Chainstay | 440 | 440 | 440 | 440 | 440 | 440 |
Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
