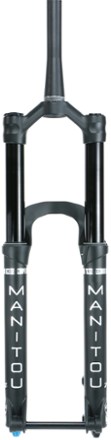

Featuring home mechanic–approved travel adjustability and an easy-to-use VTT-6P damper, the Manitou Mezzer Expert suspension fork lets you dial in your ride just the way you like it.
- Combination of 37 mm stanchions, Reverse Arch design and Hexlock SL2 axle offer ultimate stiffness
- 140 mm to 180 mm of adjustable travel
- Expert Air spring offers ultimate sensitivity with a self-equalizing negative air spring
- IVA (Incremental Volume Adjuster) allows you to modify your positive air chamber volume by rearranging the self-contained spacers—you'll never lose a volume spacer again
- VTT-6P damper provides 6 easy clicks to dial in your damping for all types of terrain
- TSR (Trail Side Relief) valves on the back of the lower legs allow you to bleed off built up air within the lower legs to keep things butter-smooth between service intervals
- 37 mm stanchions are made with 7000 series butted wall aluminum
- Integrated, flexible fender can be installed or removed using 3 small screws threaded into the arch of the fork
- Max tire size: 69 mm with fender; 74 mm without fender
- Approximate weight: 2,062 g
Imported.
View all Manitou Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 223 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 37 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 251 millimeters |
| Max Tire Width | 74 millimeters |
| Wheel Size | 29 inches |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 2,062 grams |
| Material(s) | Aluminum |
