Manitou  Mezzer Pro Suspension Fork

This product is not available.

Shop similar products

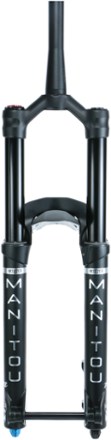

Built with 37 mm stanchions and a Reverse Arch design, the Manitou Mezzer Pro suspension fork is the stiffest enduro fork in the Manitou lineup—for riders who like pushing their limits on the trails.

Features

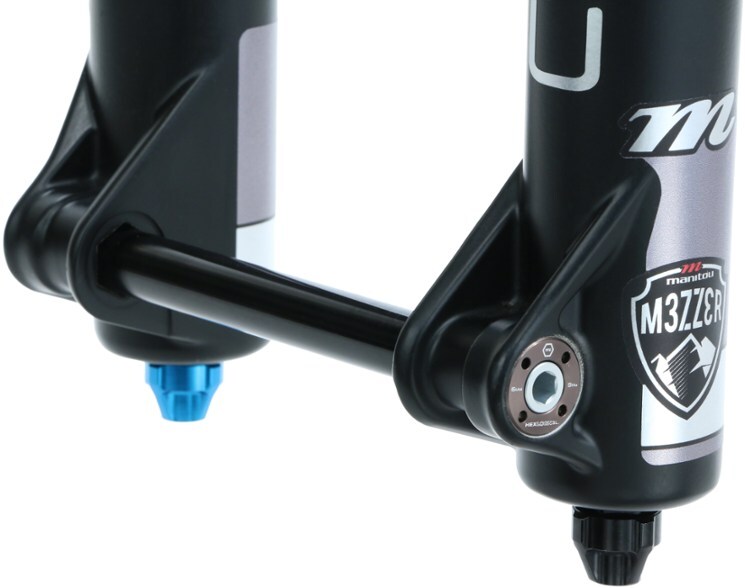

  • Combination of 37 mm stanchions, Reverse Arch design and Hexlock SL2 axle offer ultimate stiffness
  • Dorado Air Spring offers sensitivity with a self-equalizing negative air spring
  • When inflating the fork, both the positive and negative air chambers are filled simultaneously, equalizing the pressures to create an incredibly supple feel
  • IRT (Infinite Rate Tune) volume adjuster allows control over the mid-stroke support and bottom-out progressivity independent from initial spring rate
  • IRT allows you to independently tune small bump sensitivity and big-hit performance
  • Fully sealed MC damper provides a range of blow-off thresholds to satisfy any requirement with separate high-speed and low-speed adjustments
  • Sealed cartridge utilizes a bladder to maintain damping consistency in the most severe riding conditions
  • 140 mm to 180 mm internally adjustable travel in 10 mm increments (travel spacers included)
  • 37 mm stanchions are made with 7000 series butted wall aluminum

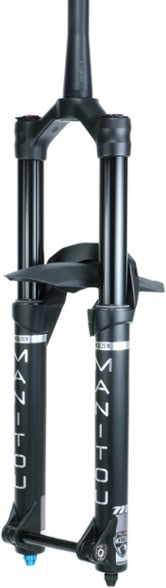

  • Integrated, flexible fender can be installed or removed using 3 small screws threaded into the arch of the fork
  • Max tire size: 69 mm with fender; 74 mm without fender
  • Approximate weight: 2,032 g

Imported.

View all Manitou Bike Suspension Forks

Technical Specs

Best Use

Mountain Biking

Fork Spring Type

Air Spring

Fork Brake Type

Disc Brake

Fork Brake Mount

Post Mount

Max Rotor Diameter

223 millimeters

Crown Race Diameter

40 millimeters

Stanchion Diameter

37 millimeters

Steerer Tube Diameter

1.5 in. Tapered

Steerer Tube Length

248 millimeters

Axle to Crown Length

594 millimeters

Max Tire Width

74 millimeters

Wheel Size

29 inches

Fork Travel

180 millimeters

Fork Offset

44 millimeters

Front Axle

15 x 110 mm Thru-Axle (Boost)

Weight

2,032 grams

Material(s)

Aluminum
